Screen Printing mesh

6T(15 Mesh) to 165T(420 Mesh)

You can receive our polyester screen printing mesh in different finesse from ‎6T(15 Mesh) to 165T(420 Mesh).

The product has a better price:
  • We are a factory that produces screen printing mesh. The more you buy, the cheaper your price.

Description

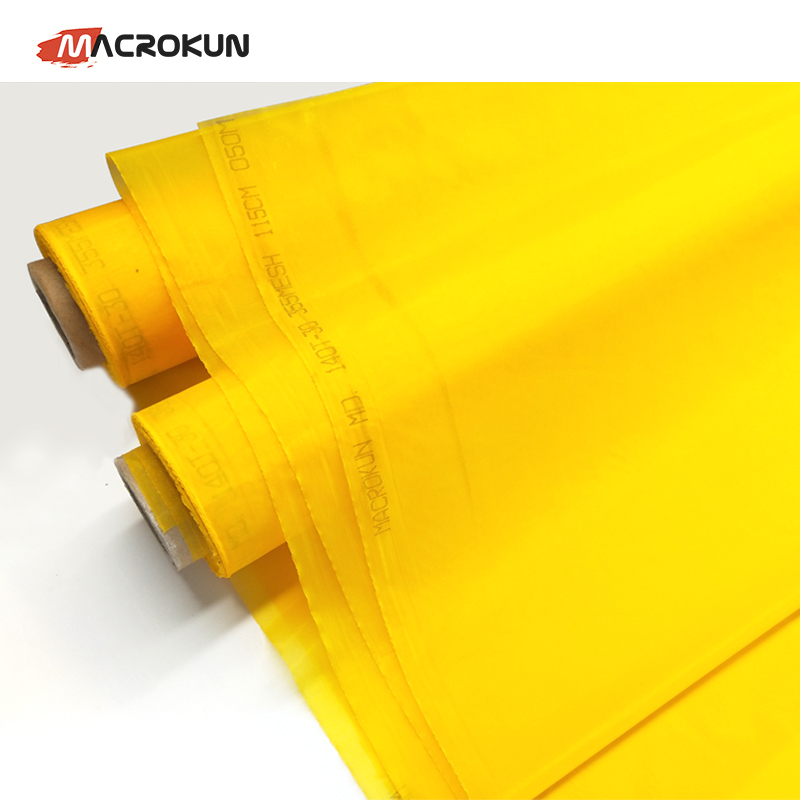

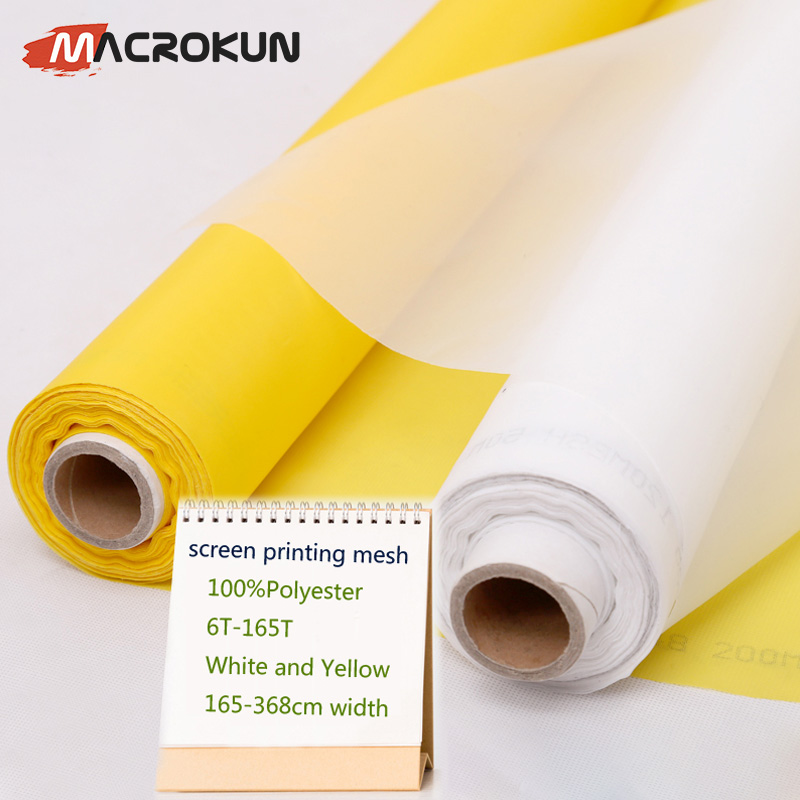

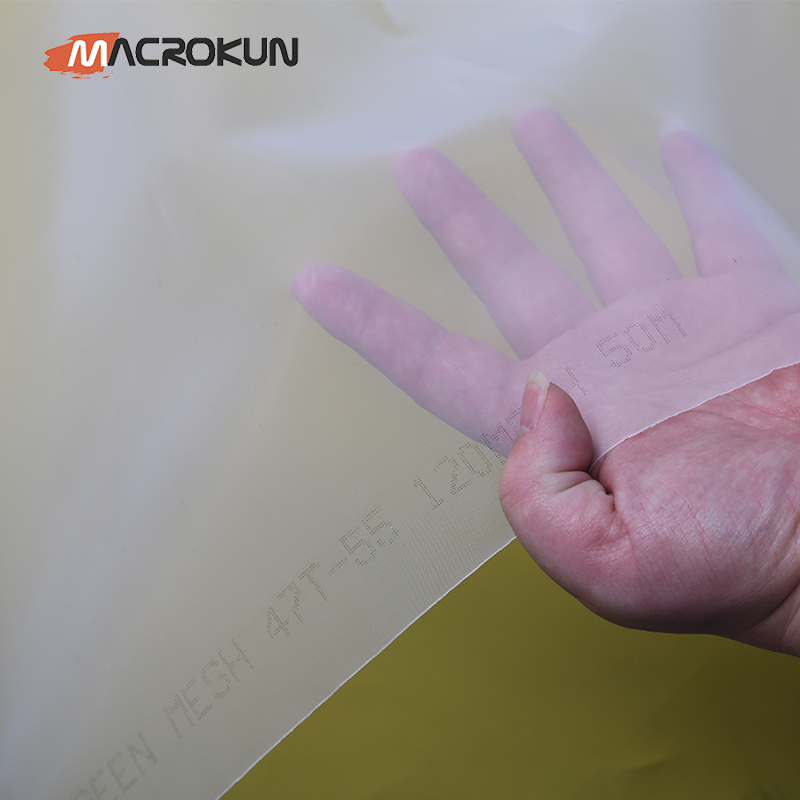

Macrokun Polyester Screen Printing mesh made from 100% polyester monofilament yarn with precise and regular square holes. Contains no harmful substances and does not undergo any chemical treatment during the production process. Very safe, very thin, food grade. Has very good stability.

Polyester Screen Printing Mesh 6T(15 Mesh)-165T(420 Mesh)

Polyester Screen Printing Mesh Specifications : 6T-165T

Polyester Screen Printing Mesh Color : White and yellow

Mesh count/inch : 60

Aperture : 273micron

Thread diameter : 150micron

Opening : 42%

Thickness : 249-255micron

Ink through volume theoretically : 100cm3/m2

Tensile strength : 60N/CM

Woven type : Plain weave

Width : 25.4mm/1inch(mini) to 3607mm/142inch

Roll length : 25m, 30m, 50m

Width: Maximum width 145 inches (368 cm)

Quality: ISO9001:2008

Number of grids: 15 mesh – 420 inches per inch per inch

Thread diameter: 0.031 mm – 0.4 mm

Type Mesh Count
(Mesh/inch)
Aperture
(um)
Thread Diameter
(um)
Opening
(%)
Thickness
(um)
Ink Through Volume Theoretically
cm³/m²
Tensile Strength
N/CM
6T-400 15 1300 400 65 780-810 560 110
10T-250 25 700 250 49 508-518 355 85
12T-250 30 610 250 53 495-505 305 85
15T-250 38 467 250 49 489-501 213 83
24T-100 60 316 100 57 188-195 109 49
24T-120 60 303 120 51 230-240 104 51
30T-120 75 213 120 41 235-245 102 52
32T-100 80 212 100 46 145-155 69 48.5
36T-90 90 185 90 45 155-165 65 59
39T-55 100 195 55 56 88-96 55 24
39T-80 100 176 80 48 148-153 73 31
43T-80 110 147 80 40.8 125-131 53 31
47T-55 120 152 55 51 88-96 47.6 29
48T-70 120 135 70 41 108-120 45.5 30
53T-55 135 128 55 47 88-96 44.5 29
54T-64 137 115 64 38.5 95-105 38.9 30
54T-70 137 108 70 34 108-120 40 31
62T-64 155 105 64 42 98-107 33 31
64T-45 160 105 48 43 73-82 36.5 30
64T-55 160 98 55 38 85-95 36.1 30
64T-64 160 88 64 30 95-105 30.7 31
68T-55 175 85 55 34 85-95 29.2 48
68T-64 175 78 64 29 108-110 32 58
72T-45 180 92 45 40 68-76 33.1 27.6
72T-48 180 90 48 36 75-84 33.1 28
77T-48 195 81 48 34 80-85 29 28
77T-55 195 75 55 28 86-92 26.6 29
80T-48 200 72 48 33 75-84 28.7 27
90T-48 230 56 48 25 77-85 23.5 25
100T-40 250 58 40 37 66-73 21.3 28.5
110T-40 280 52 40 33 78-85 20.5 29.6
120T-34 305 45 34 30.5 52-57 18.4 30.5
140T-34 355 31 34 19.5 56-62 14.4 31
150T-31 380 36 31 29 43-47 13.1 30.5
150T-34 380 30 34 20.5 56-62 14.9 30.5
165T-31 420 31 31 22.5 52-58 12.5 28.9

How to Choose
