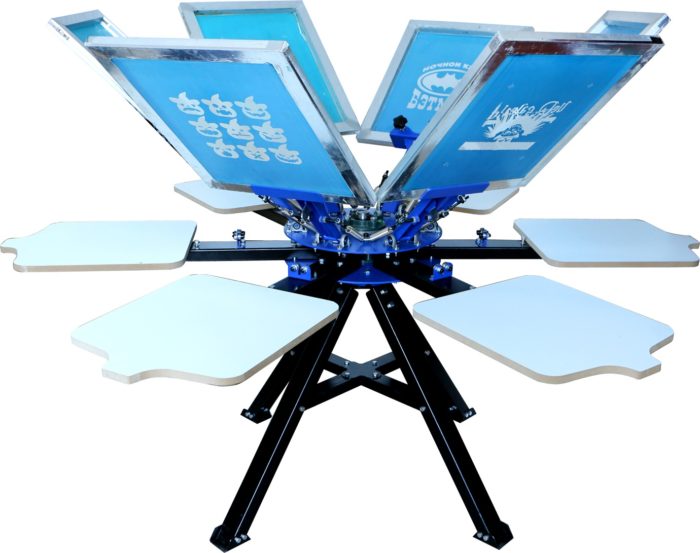

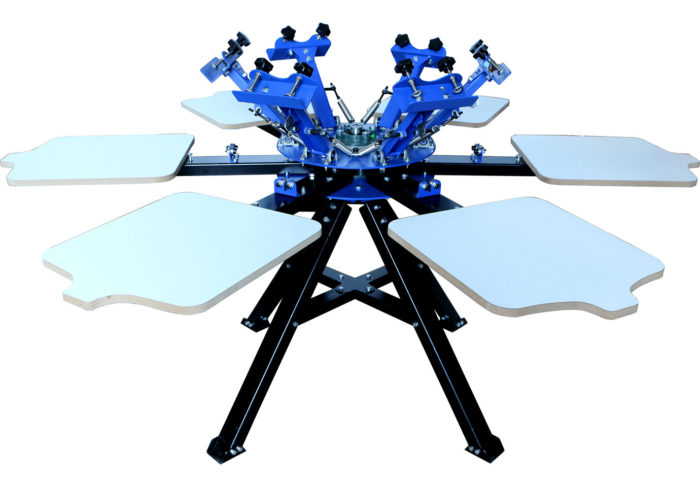

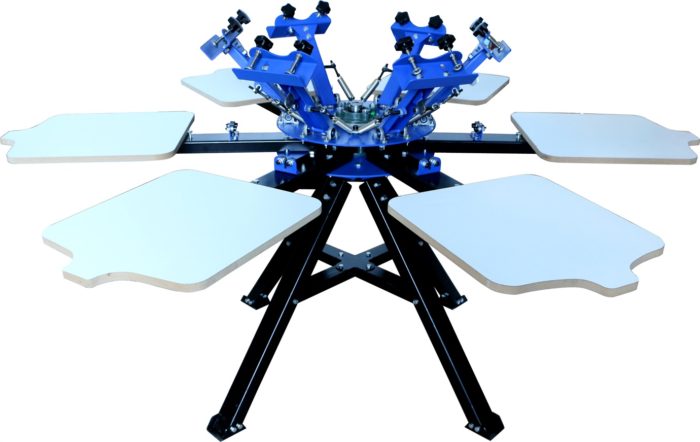

MK-F662A floor type six color six station double wheel screen printing machine

MK-F662A

The MK-F662A floor type six color six station double wheel screen printing machine is mainly used for the six color T-shirt overprinting,it is configured with six screen frame chucks and six t-shirt pallet stations.

The product has a better price:
  • We are a factory that produces screen printing mesh. The more you buy, the cheaper your price.

Description

MK-F662A floor type six color six station double wheel screen printing machine

It is mainly used for the six color T-shirt overprinting,it is configured with six screen frame chucks and six t-shirt pallet stations.

Product Code
006366
Product Name
MK-F662A floor type 6 color 6 station double wheel screen printing machine
HS code
8443192290
Product Color
blue
Printing Area
22*18in
Machine using material
steel plate
Machine surface treatment
Electrostatic spraying
Attachment material
Stainless steel or zinc plating, nickel plating
Packing quantity
4
Net weight
264lb
Gross weight
287lb
Packing size
38*38*7.5in
22.8*22.8*14in
26*20.5*9.4in
35*12.4*4.7in
Packing volume
0.41m3
Packing material
Export carton

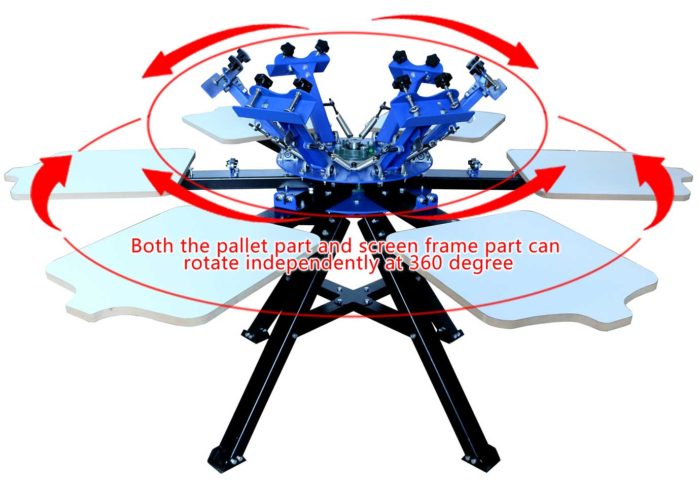

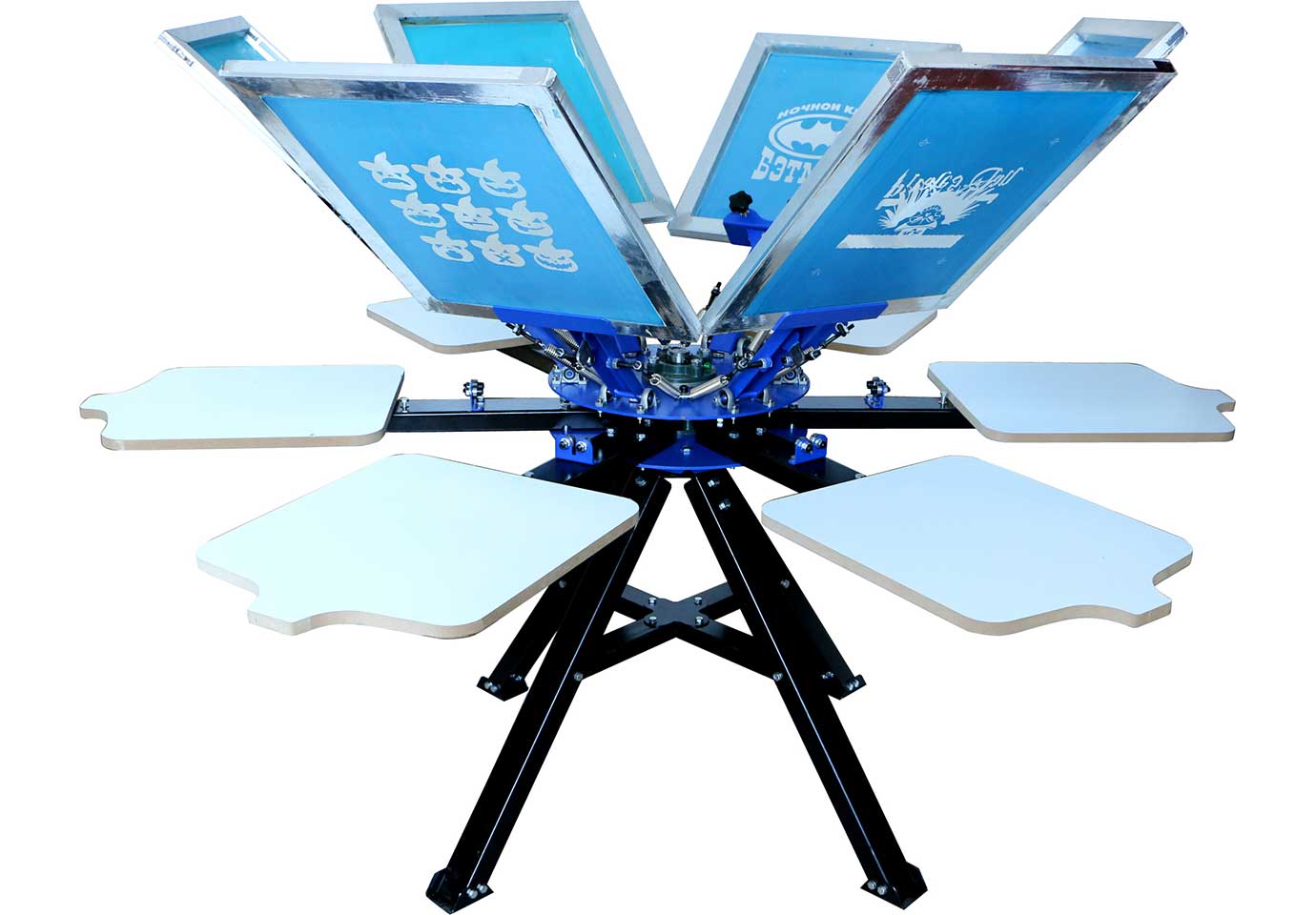

Both the pallet part and screen frame part can rotate Independently at 360 degree;Users can operate at any station.

If one dryer is placed on a station to flash dry the surface, two users are familiar with the machine, they can print 30-50 pieces t-shirts each hour .

This machine is manual mobile screen frame to match color,All the screen frames’position is correct to any one pallet , the other one pallet will be correct , then the user can start overprinting.There is no need to correct the position of the color one by one.

The functions and characters :

1.Both the chuck of the screen frame and the pallet can rotate at 360 degree;Users can Operate at any position or any pallet position.

2.Users can finish all the screen frame’s overprinting positioning at any pallet station,All the screen frames’position is correct to any one pallet , the other one pallet will be correct , then the user can start overprinting.There is no need to correct the position of every pallet.

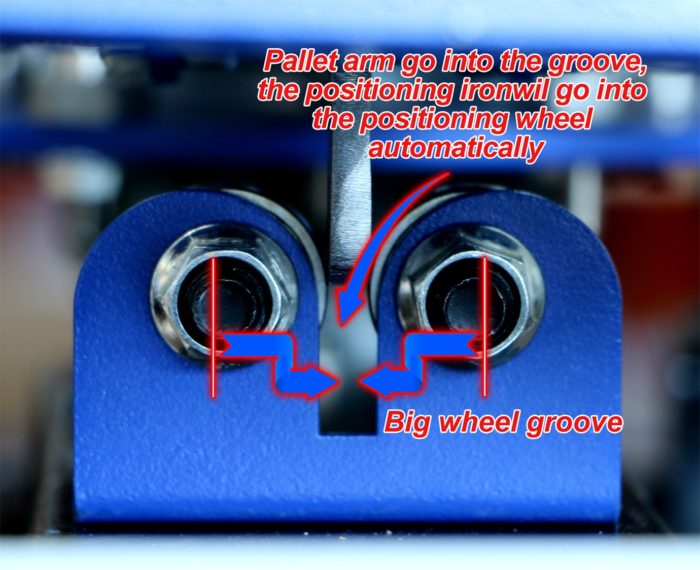

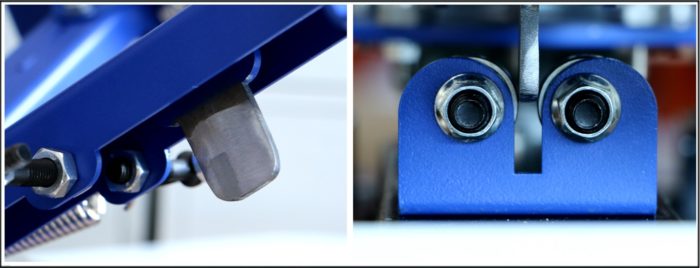

3.Each screen frame’s fixing device is equipped wth precise positioning wheel,when the positioning iron on the arm placed in positioning wheel closely, it can ensure the printing precision.

4.Each screen frame’s fixing device is equipped wth big lock wheel, screen frame arm can easily fall into the metal positioning wheel when touch the two big lock wheels ,and it also can prevent the direct collision between the positioning iron and the metal positioning wheel.

5.Each screen frame’s fixing device is equipped wth adjustable height chuck positioning knobs and adjustable height knobs when lift up the acreen frame.

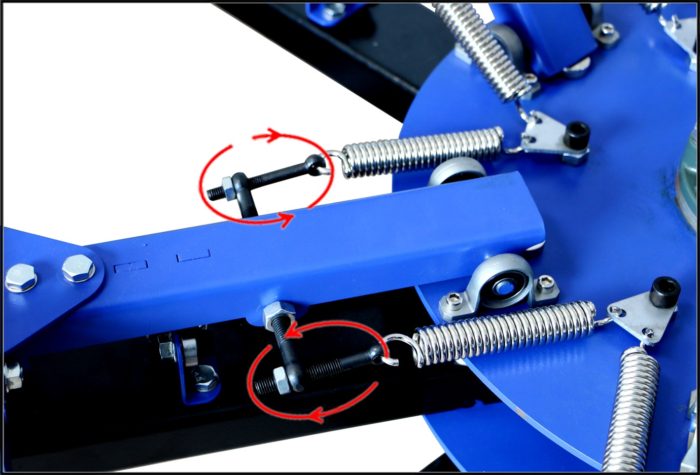

6.According to the weight of the screen frame, spring tension can be adjusted by the basket screws to achieve balance.

7.Screen frame chuck’s width is (10in) 25 cm ; It is suitable for screen frame with outside size within (24 in) 60 cm and screen frame with thickness size is within 4 cm (1.6 in).

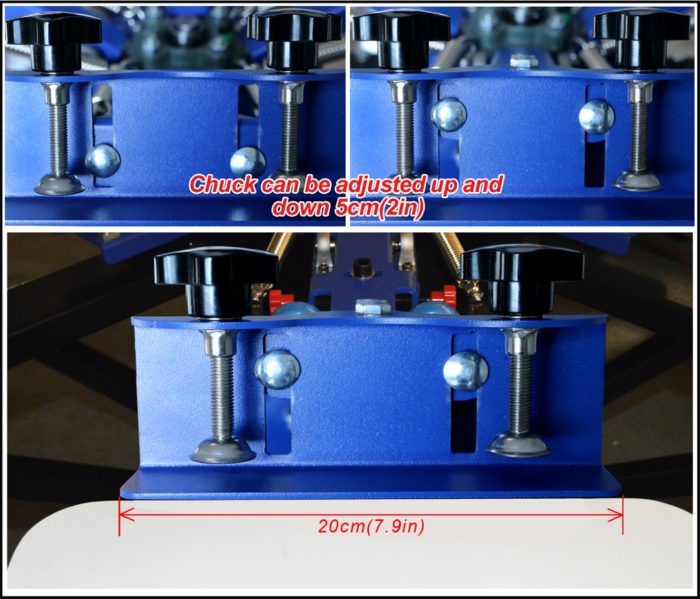

8.The screen frame chuck can be adjusted up to 5cm(2in) according to the height of the substrate.

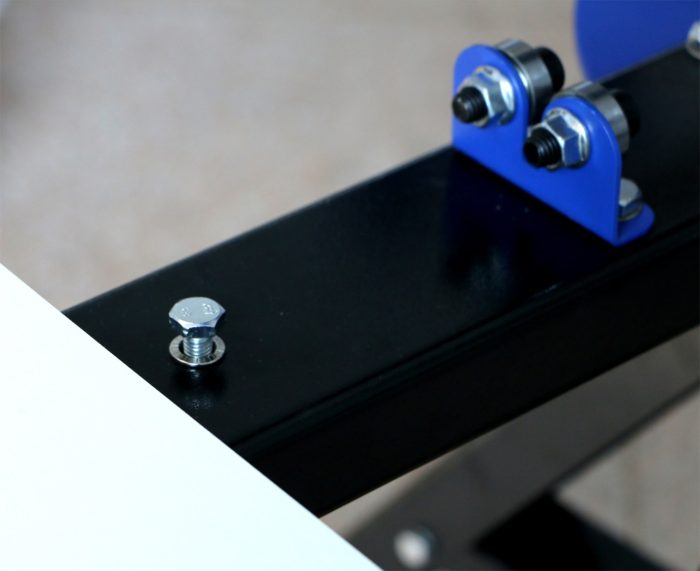

9.The pallet is directly fixed on the pallet arm by screws.

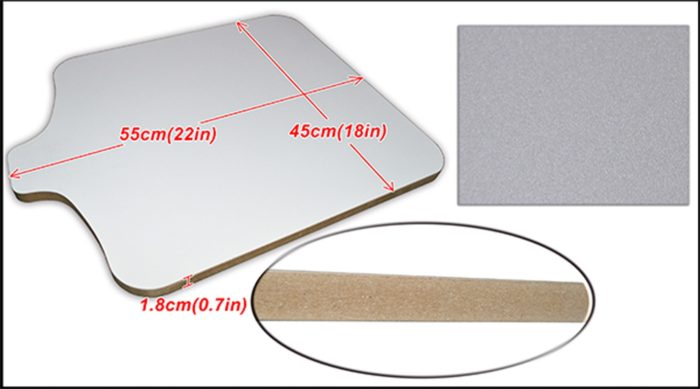

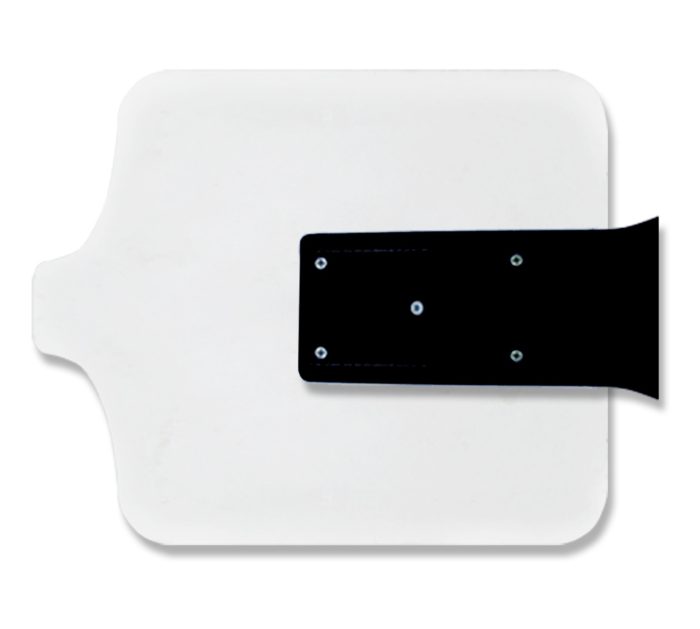

10.T-shirt type pallet of the machine is 55 cm (22 in) long, 45 cm(18in) wide, the thickness is 1.8 cm (0.7 in); Using furniture surface melamine high density board, the surface with small pits, and it is more suitable for printing T-shirt when scraping the pallet glue.

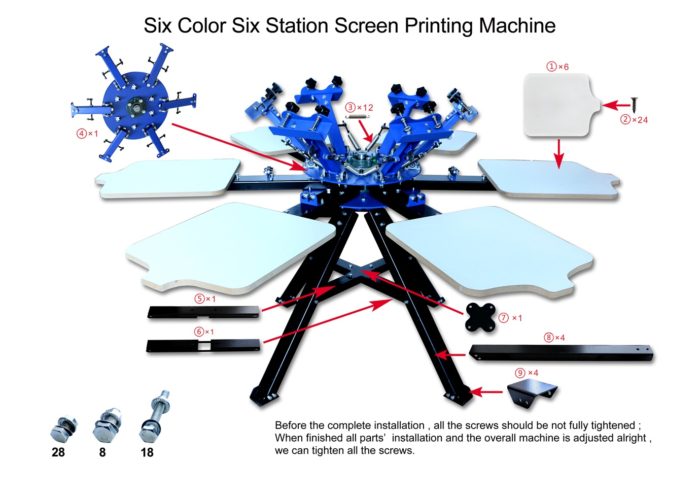

11.This machine is combination structure, total 3 boxes ,small size, and it is more suitable for transportation; According to the installation diagram and configuration installation tools can install the machine.

12.The machine adopts advanced electrostatic spraying process, various parts using stainless steel, aluminum alloy, nickel and zinc plating technology. They are corrosion resistance, no fading, easy to clean, maintain color and finish for a long time, and it can use for a long time with no rust.

13.All machines are configured with a full set of tools to install the machine; There is no need to prepare for other tools to complete the installation; Equipped with installation diagram and the packing list, parts installation location is very clear; All machines are configured with installation CD and operation video, it is more convenient for the user to install and use the machine .There are still spare parts in the box for users to change.
