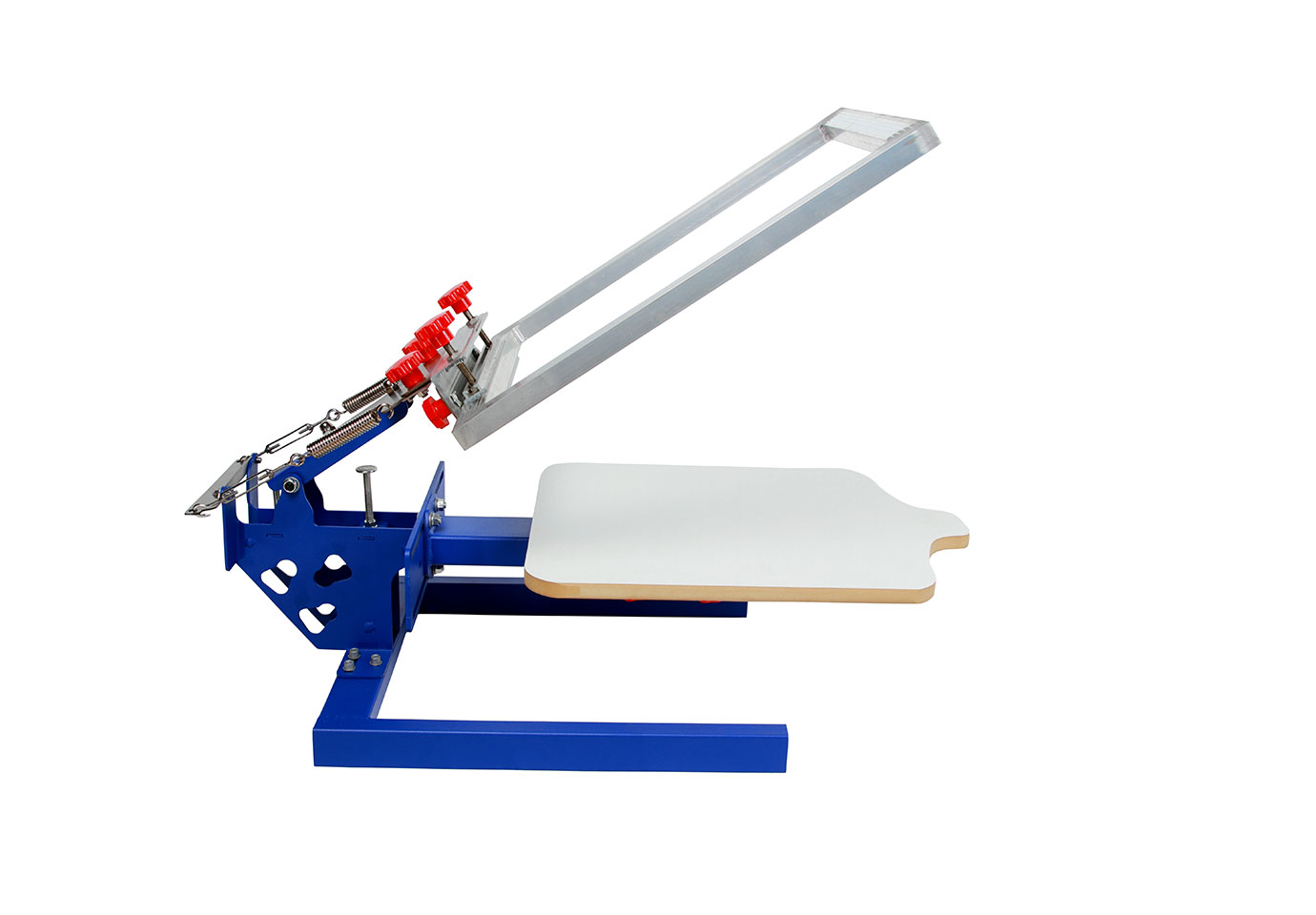

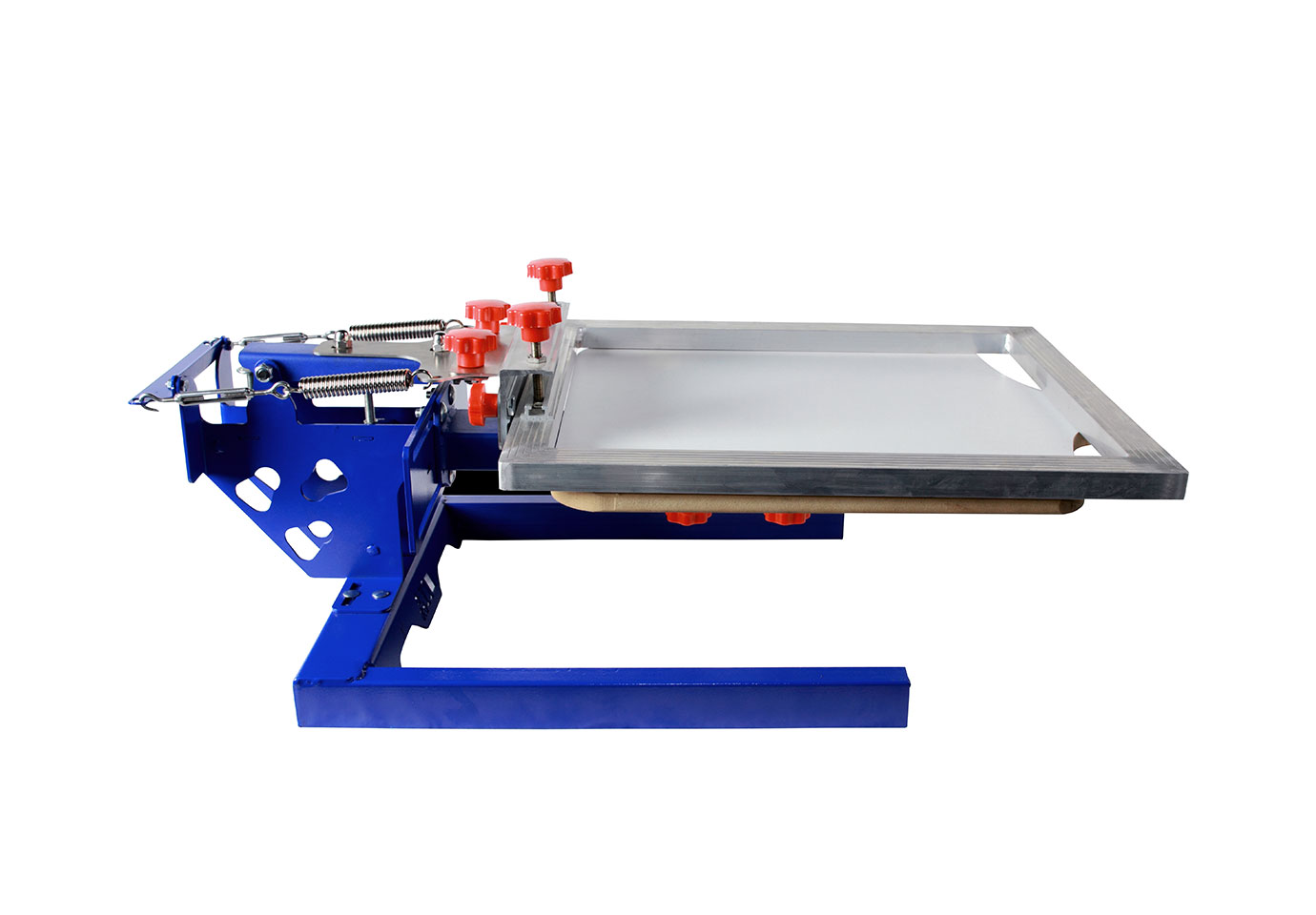

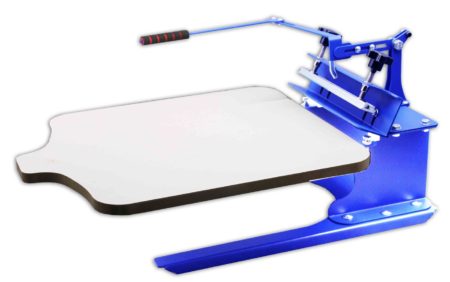

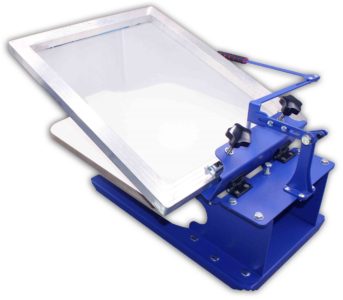

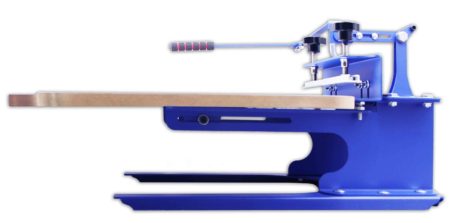

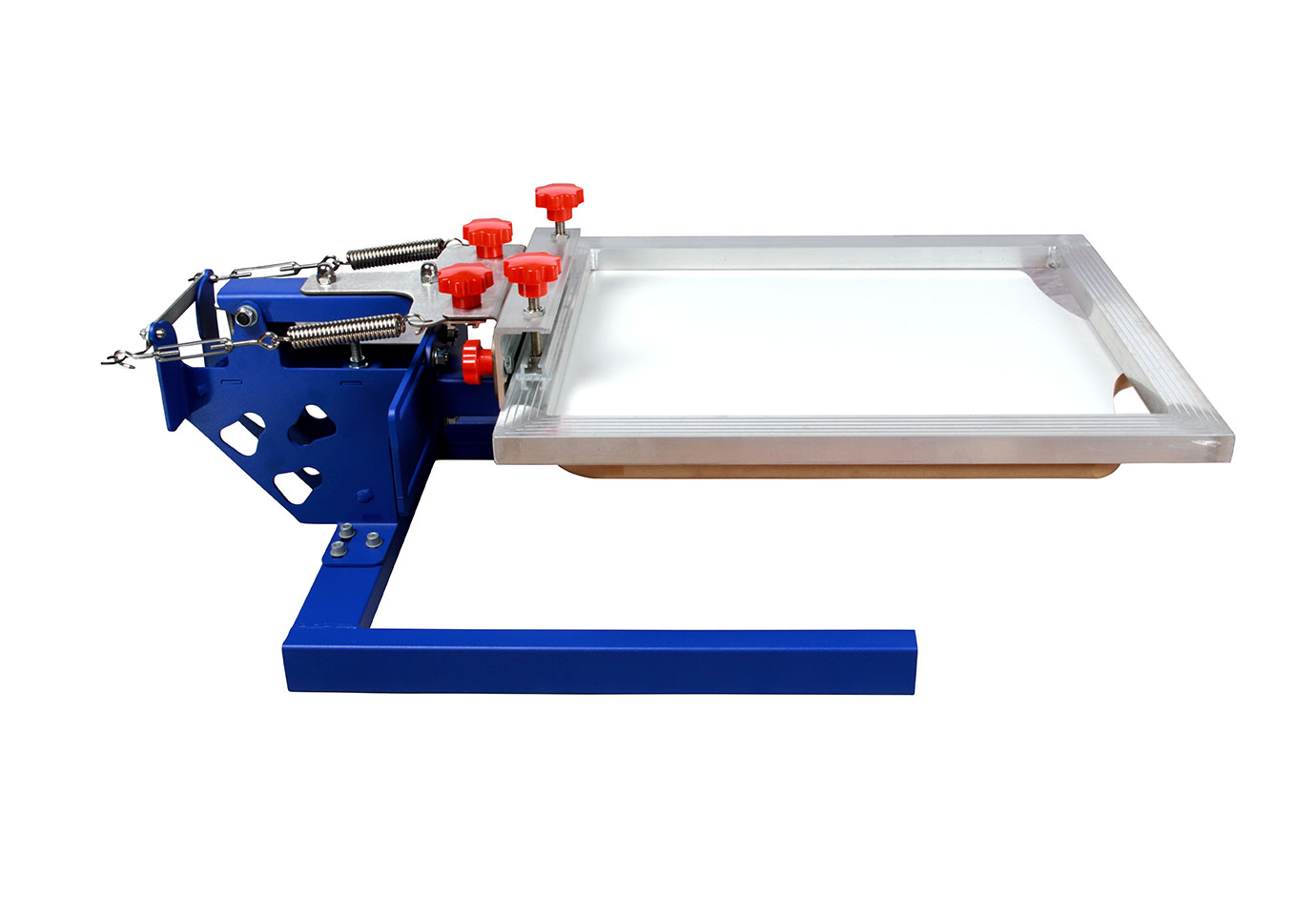

MK-T11B One Color Screen Printing Machine

MK-T11B

This MK-T11B One Color Screen Printing Machine can directly place on the desk  ,it is mainly used in the one color screen printing.

The product has a better price:
  • We are a factory that produces screen printing mesh. The more you buy, the cheaper your price.

Description

MK-T11B One Color Screen Printing Machine

Product Code 006207
Product Name MK-T11B One Color Screen Printing Machine
HS code 8443192290
Product Color blue
Printing Area 22*18in
Machine using material steel plate
Machine surface treatment Electrostatic spraying
Attachment material Stainless steel or zinc plating, nickel plating
Machine size 35*19*14in
Net weight 28lb
Gross weight 30lb
Packing size 24*20*8in
Packing volume 0.06 m³
Packing material Export fumigation

The MK-T11B 1 color screen printing machine can directly place on the desk  ,it is mainly used in the one color screen printing.

The MK-T11B One Color Screen Printing Machine functions and features:

1,According to the height of the substrate ,chuck of the screen frame can adjust 2in from top to bottom;

2,According to the needs, pallet can adjust 3in from front to back;

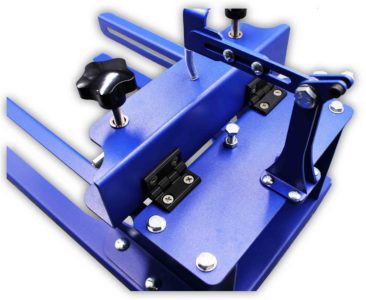

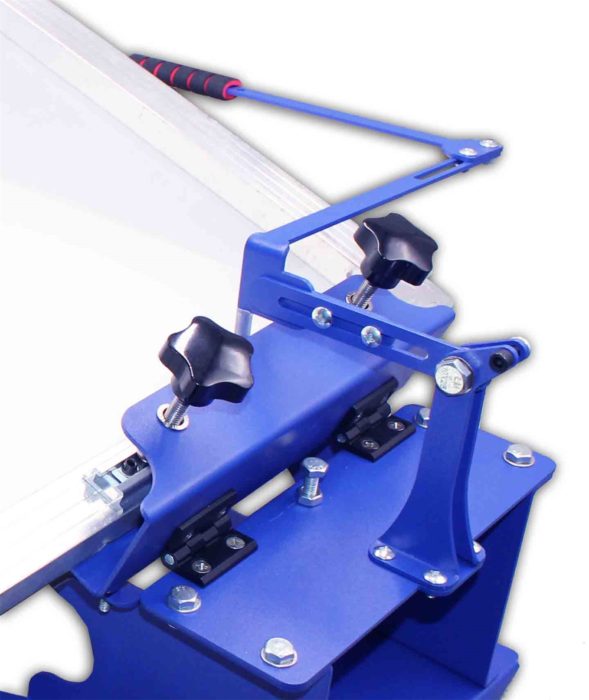

3,By the joystick and the hook connected chuck to suit the balance of the screen frame with different weight.

4,When put down the screen frame to print, we just need to lift up the joystick, and make the hook out of the chuck , then the screen frame can be put down; When finished printing ,just lift up the screen frame, the hook can connect with the chuck to make the screen frame fixed .



5,The joystick can move 3in from front to back accordiing to the needs,and it can make the angle of the screen frame to be 30-45 degree when lift up .

6,The joystick can move 3in from left to right,and it can make the width of the screen frame to be 12-24in.

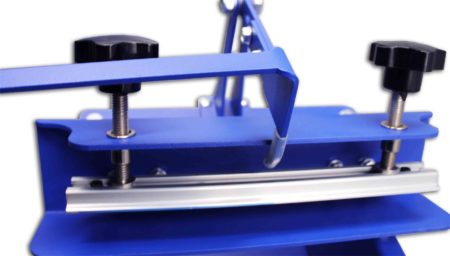

7,Fixing the screen frame adopts aluminium alloy pressing plate ,and it can make the screen frame more stable;

8,Falling height of the screen frame can be adjusted by the support;

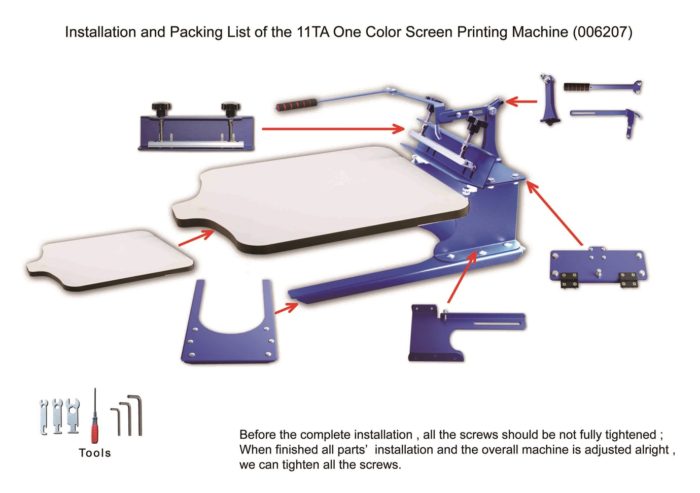

9,This MK-T11B One color screen printing machine is detachable structure, the user can install and use the machine according to the specifications and configuration of the full set of tools .
