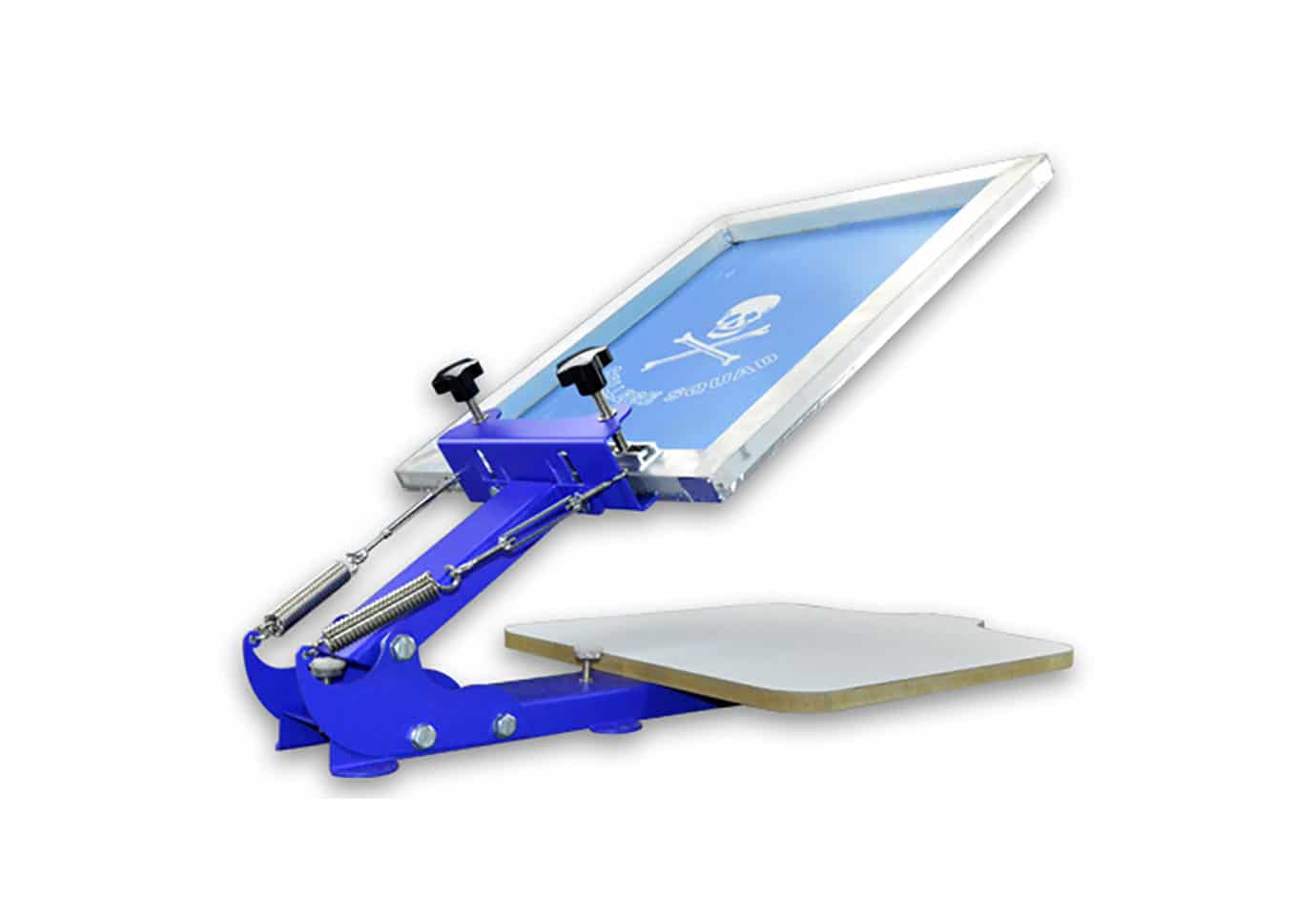

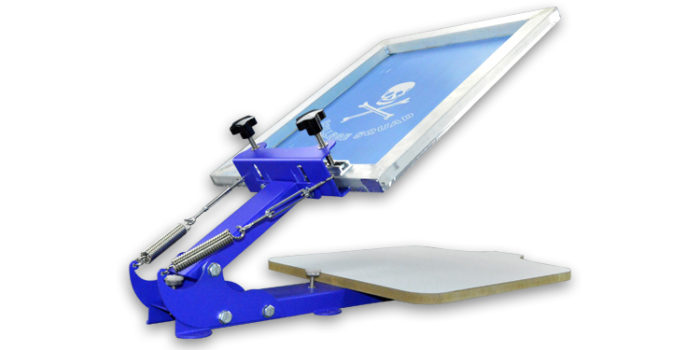

MK-T11A One Color Screen Printing Machine

MK-T11A

MK-T11A One Color Screen Printing Machine can directly fixed on the desk by screws ,it is mainly used in the one color screen printing.

The product has a better price:
  • We are a factory that produces screen printing mesh. The more you buy, the cheaper your price.

Description

MK-T11A One Color Screen Printing Machine

This machine can directly fixed on the desk by screws ,it is mainly used in the 1 color screen printing.

Product Code

006021

Product Name

MK-T11A One Color Screen Printing Machine

HS code

8443192290

Product Color

blue

Printing Area

18*22in

Machine using material

steel plate

Machine surface treatment

Electrostatic spraying

Attachment material

Stainless steel or zinc plating, nickel plating

Machine size

35*18*8in

Net weight

21lb

Gross weight

22lb

Packing size

23*19*5in

Packing volume

0.04 m³

Packing material

Export fumigation



The MK-T11A One Color Screen Printing Machine functions and features:

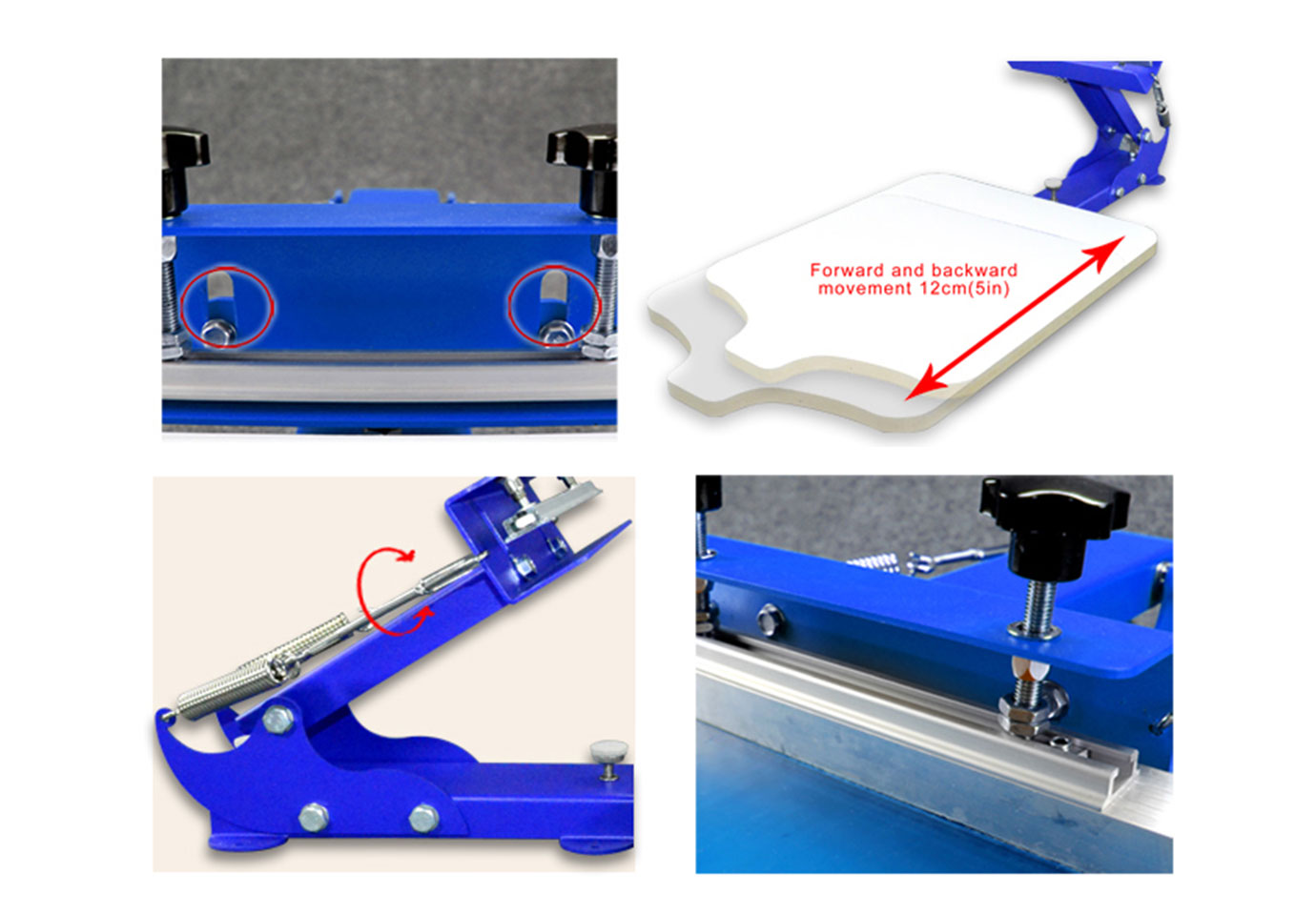

1.According to the height of the substrate ,chuck of the screen frame can adjust 5cm from top to bottom;

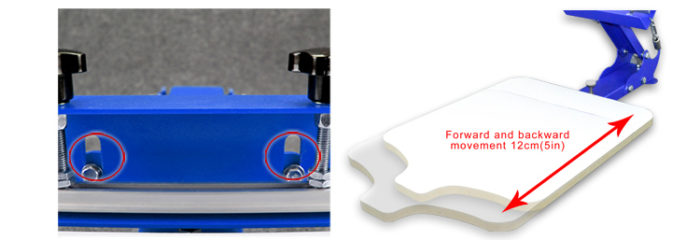

2.According to the needs, pallet can adjust 12cm from front to back;

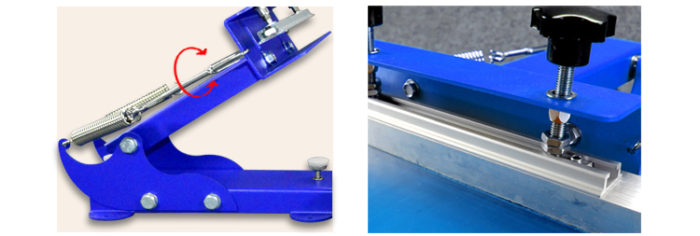

3.By adjusting the turn buckle to suit different weight screen frames ;

4.Fixing the screen frame adopts aluminium alloy pressing plate ,and it can make the screen frame more stable;

5.Falling height of the screen frame can be adjusted by the support;

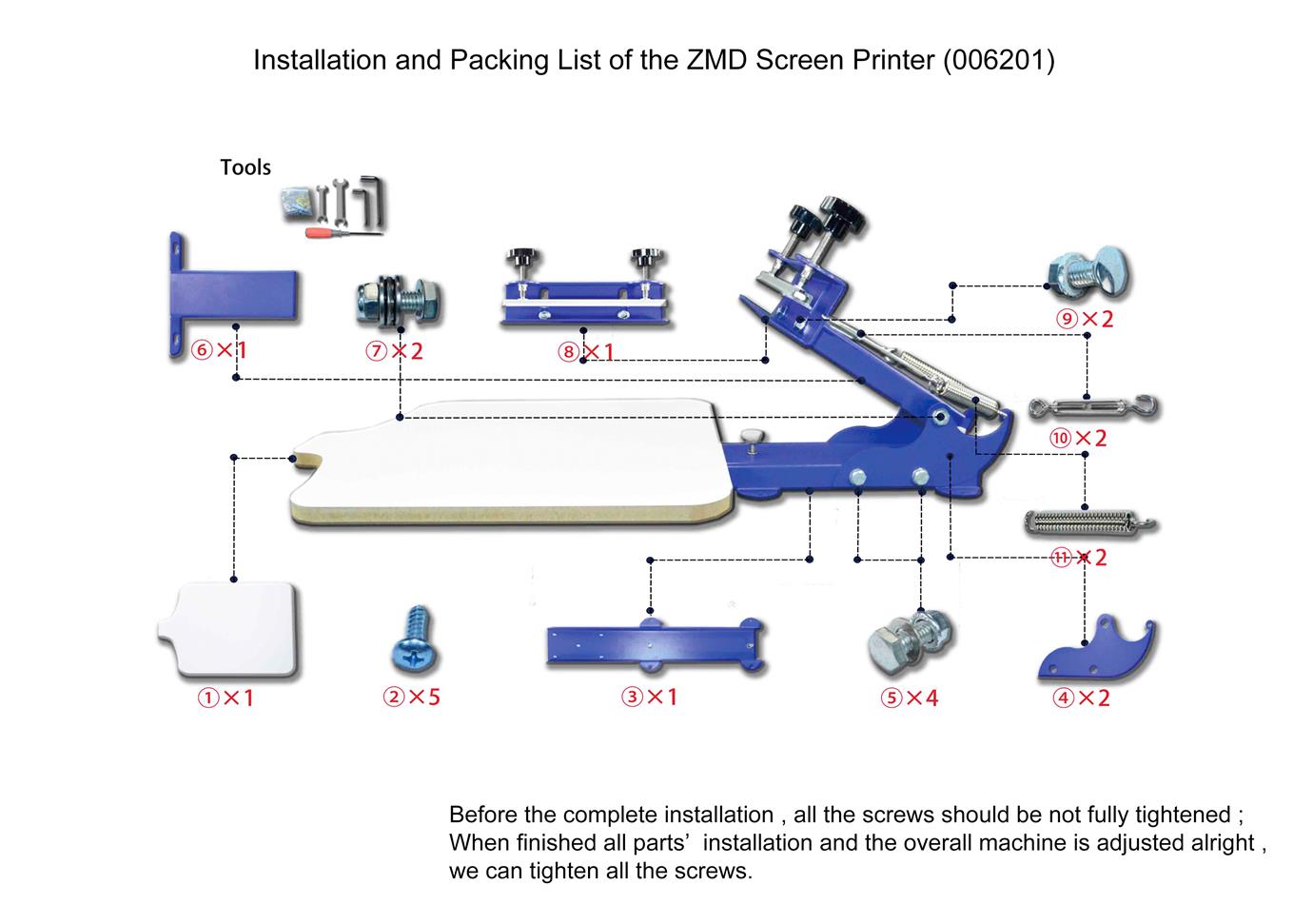

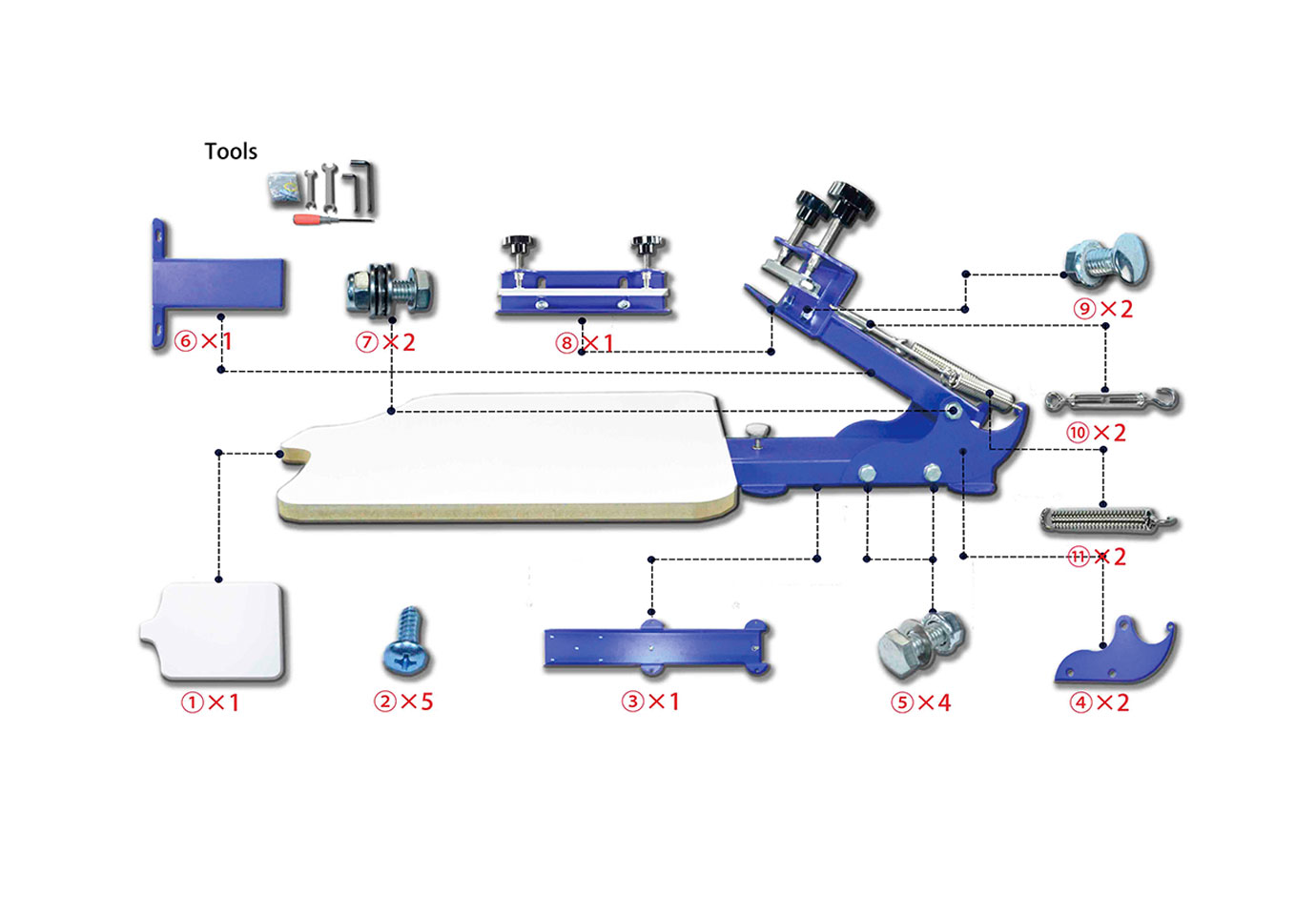

6.This machine is detachable structure, the user can install and use the machine according to the specifications and configuration of the full set of tools .

7.Before the complete installation , all the screws should be not fully tightened ; When finished all parts’  installation and the overall machine is adjusted alright ,we can tighten all the screws.
