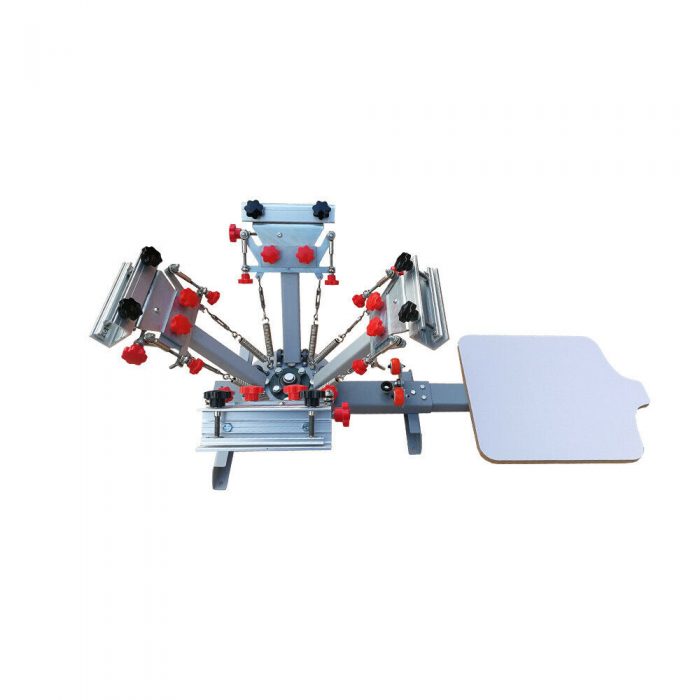

4 Color 1 Station Silk Screen Printing Press Machine with Micro Registration

4 Color 1 Station Silk Screen Printing Press Machine with Micro Registration

4 Color 1 Station Silk Screen Printing Press Parameters:
Color: 4 color
Station: 1 station
Platen size: 17.7″ x 21.6″(55 x 45)cm
Max frame size: 20″ x 24″ (50 x 60 cm)
Max image size: 15.7″x 20″(40 x 50 cm)

4 Color 1 Station Silk Screen Printing Press Application:
We designed and developed the new 4 color 1 station screen printing machine with micro registration, is a new now machine, keeping the advantages of ole model machine, and add very smart micro registration function, to solve the problem of multi-color overprint accuratly,it’s a perfect machine.

The 4 Color 1 Station Silk Screen Printing Press can print onto clothing (especially for T-shirt), woven fabric, metal, paper,copybook, plastic, circuit board, wood, glass, ceramic tile,leather and other plane printing substrates,which is especially uitable for small businesses and individual printing shop.
4 Color 1 Station Silk Screen Printing Press Machine
screen printing press 4 color 1 station Features:

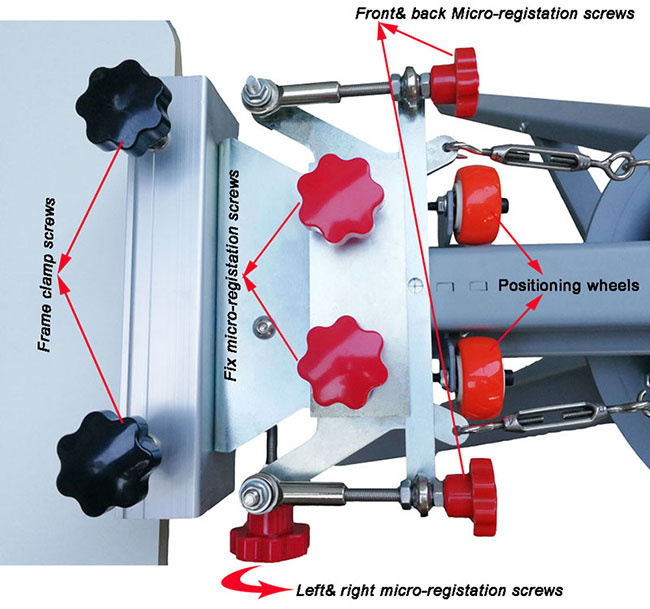

1.Smart design for micro registration clamps, easy to print multicolor exactly.
2.Screen printing clamps can rotate independently which is easy operated with higher efficiency.
3.Adjusted double-spring device are available for screen frames of different weight.
4.Aluminium head clamps is light and stable for frames,more beautiful.
5.Screen clamp can be moved up and down, which is suitable for screen frame within 3cm thickness.
6.Right and left micro registration devices for multicolor printing exactly.
7.Front and back micro registration devices for multicolor printing exactly.
8.Tabletop model to save place and convenient for transportation.
9.Big supporting device keeps the machine stable and in balance.
10.Equipped with full set of installing tools, manual instructions, installation and operation videos.

screen printing press 4 color 1 station Advantage:

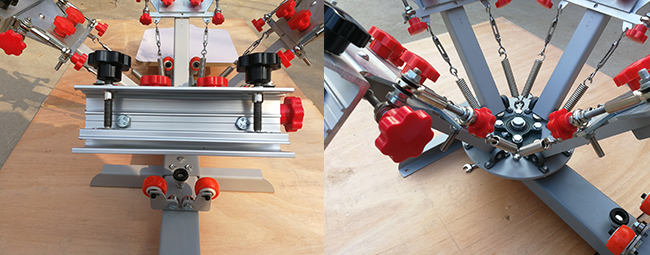

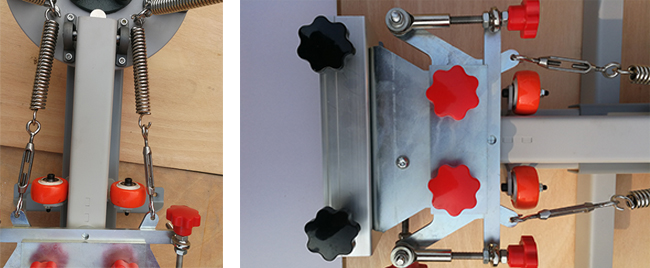

Detail:

screen printing press 4 color 1 station Package:
Carton number: 2 cartons.
Package1:75 x 53 x 23cm
Package2:75 x 53 x 23cm
Gross Weight: 40kg
4 Color 1 Station Silk Screen Printing Press Machine
