MK-UVE6353V Vacuum UV Exposure Unit

MK-UVE6353V

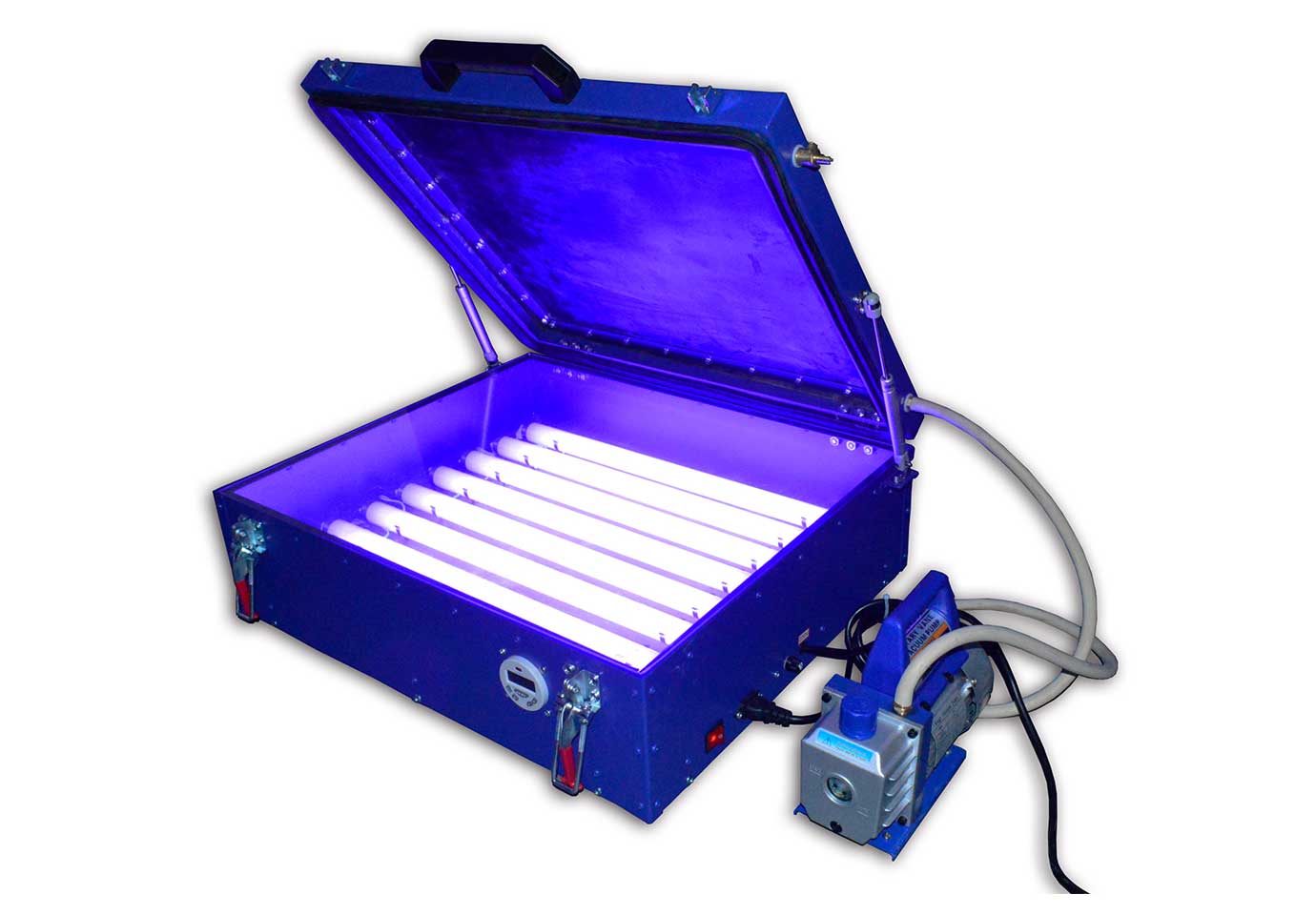

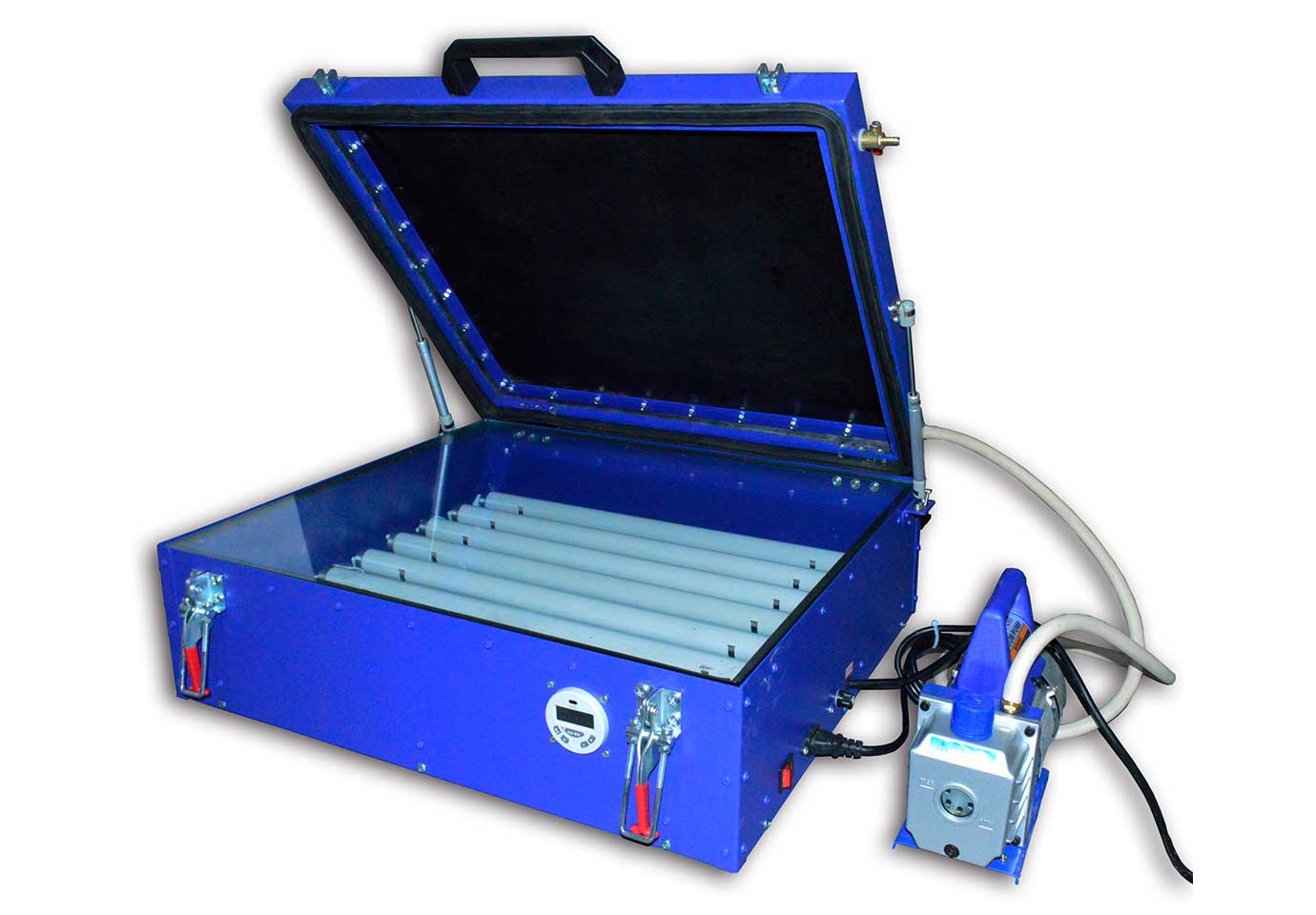

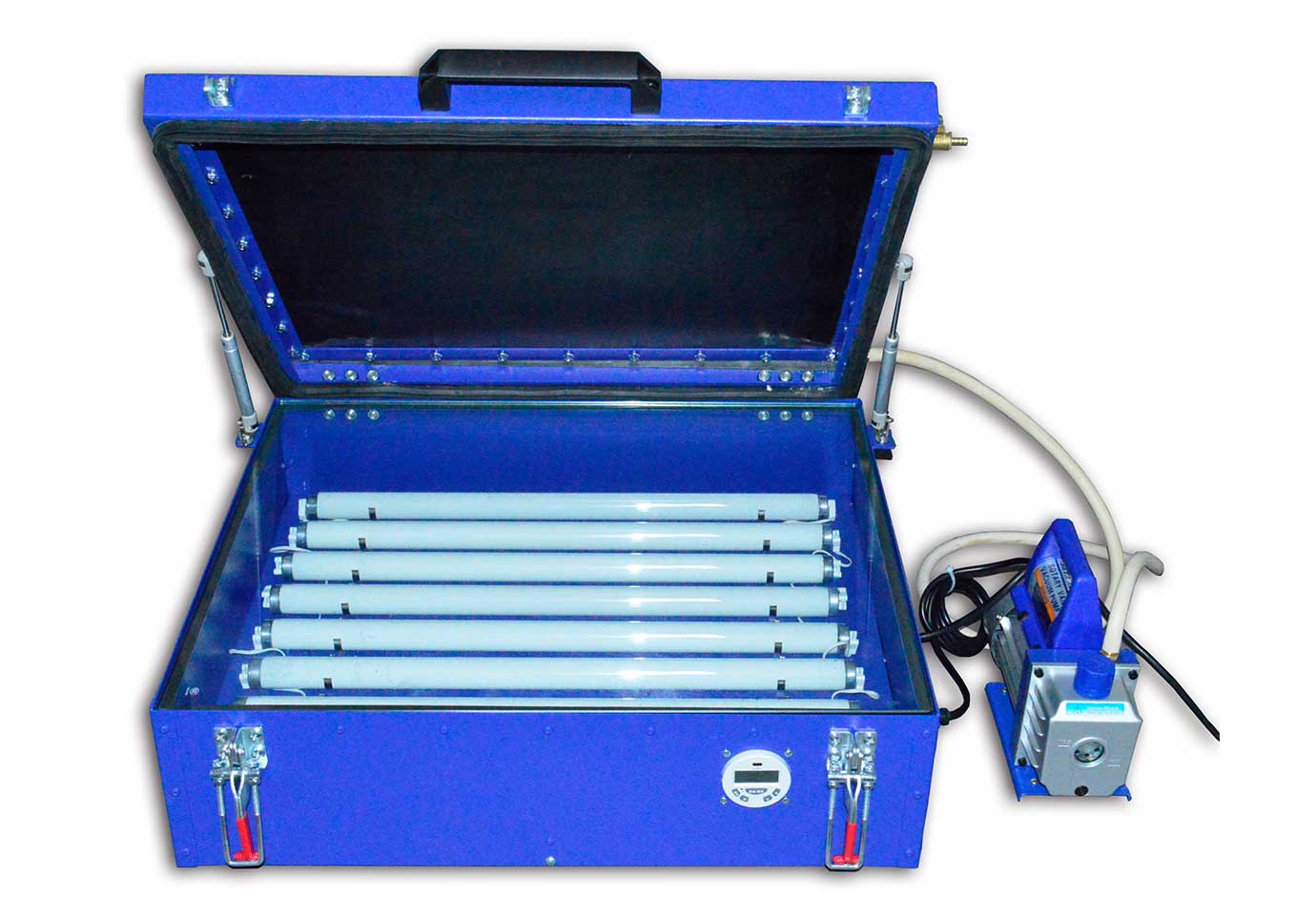

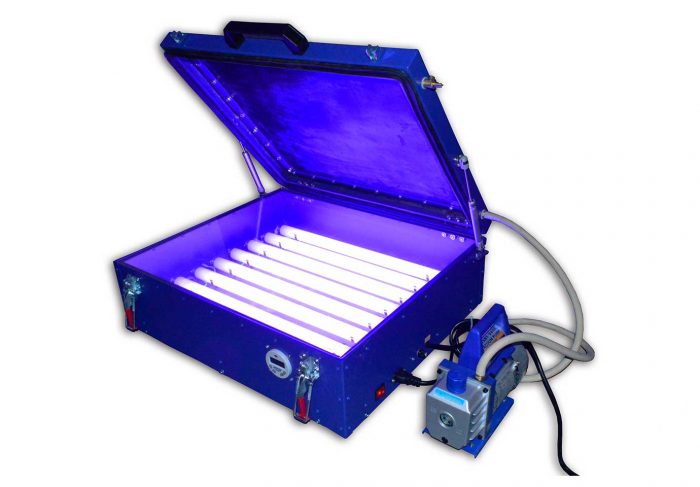

This vacuum UV exposure unit mainly used for exposure precise screens;the external pump is connected with main engine;it will make the screens and transparency film close on the glass tightly by evacuating the air of the vacuum charmer;exposure quality is high,especially for precise screens

The product has a better price:
  • We are a factory that produces screen printing mesh. The more you buy, the cheaper your price.

Description

Product Code 006843(110V)

006844 (220V)

Product Name MK-UVE6353V Vacuum UV Exposure Unit
Exposure size 20*24in
HS code 8442302900
Product Color blue
Voltage 220v/110v
Power 160w
Plug American standard,National standard,European standard
Machine using material steel plate
Machine surface treatment Electrostatic spraying
Attachment material Stainless steel or zinc plating, nickel plating
Machine size 28*24*9.4inch
Net weight 79lb
Gross weight 88lb
Packing size 33*28*12.4inch
Packing volume 0.18m³
Packing material Export fumigation-free wooden case

This vacuum UV exposure unit mainly used for exposure precise screens;the external pump is connected with main engine;it will make the screens and transparency film close on the glass tightly by evacuating the air of the vacuum charmer;exposure quality is high,especially for precise screens

There are eight 20W light tubes

The exposing area is 24*20in

The machine adopts timer to set the exposing time;the timer have automatic memory

function,set in once,whether the number of switch turn on or off,time will save





The functions and features of this machine:

1.There are eight 20W light tubes(power of light tubes 240W;spare part:one tube and

a Ballast),it can normally be used for about 10,000 hours.

2.The exposing area is 24*20in,and it is suitable for exposing different size screen

frames within outsize 18*22in.

3.The rubber cloth and seal ring adopts Taiwan produces high quality materials;Good

stretch elasticity,sealed well;

4.External ?W high speed vacuum pump;Vibration is small; noise is small;vacuum

degree is 5Pa;it can work for 24 hours

5.Equipped with 8mm Tempered glass plate,resistant to friction;the glass is broken,the

glass shards are no sharp,to ensure the safety of operator

6.The timer can set the exposing time,after reach the exposing time,the machine

automatically turns off the tubes

7.The timer have automatic memory function,set in once,whether the number of switch

turn on or off,time will save

8.Set the release valve,after the exposure and open the release valve,remove the

vacuum,open the cover and remove the screen

9.This machine is equipped with four soft plastic pad feet,place on the corner of frame,

during the vacuum,prevent the corner of frame damage the rubber cloth





Special note:

Different brand of emulsion have different exposing time,the operator need to use the

emulsion in this machine and confirm the best exposing time.





Methods of using the timer

1.Before using, please press the “C” button to reset, the display shows 00:00 00 and it

is flashing state.

2.Press the “hour” and “minute” and “second” button separately to set the countdown

of the  electrify time, the display shows “ON”

3.Press the “start/pause” button to start the countdown.

For example: set exposure time 5 minutes 30 seconds :

At first press the “C” button to remove the original set ; Then press “minute” set to”5″;

press “seconds” set to “30”; Then press the “start/pause” to start the countdown, l

amp open;  After five minute 30 seconds countdown , plate burning machine tube

closed.

This setting do not need to change, it is automatically saved.

when the machine starts again,  the countdown is still 5 minutes and 30 seconds.



Basic parameters of the timer:

Countdown: 1 SEC – 99 hours 59 minutes and 59 seconds

Working temperature: – 25 c – 65 c



Note:

Pump to add engine oil before used only ,

lest cause motor damage.

No oil can not be used

Periodic inspection is required



Using steps of the machine:

1.Connect the vacuum pump pipe with the exhaust pipe ;

2.Plug the vacuum pump power into the socket;

3.Turn on the machine, adjust the Settings of exposure time ;

4.Put the film and plate on the glass and adjust the position .

5.Put the four sledge foots on the four corners of the screen frame.

6.Close the cover, fit the hook locked; Vacuum pump starts exposing at the same time;

7.After 3 minutes of exposing ,the rubber cloth is closely fit with the mesh in the screen

frame;

8.Press the timer “start/pause”button to expose.

9.When the exposing time is over, the tubes will be off automatically ;open the exhaust

valve, the exposure will be disappear.

10.Turn off the power of the machine,and take out the screen frame. The exposure is

finished .
