MK-LEDE5060 Exposure Unit
This exposure unit mainly used for exposure screens;and it is suitable for exposing different size screen frames within outsize 64*54cm.
There are eight LED light tubes;the exposing area is 64*54cm;Adopt countdown timer to set the exposing time;the timer will automatically save and memory your set data.
The functions and features of this machine:
1 ,There are eight LED light tubes,it can normally be used for about 10,000 hours.

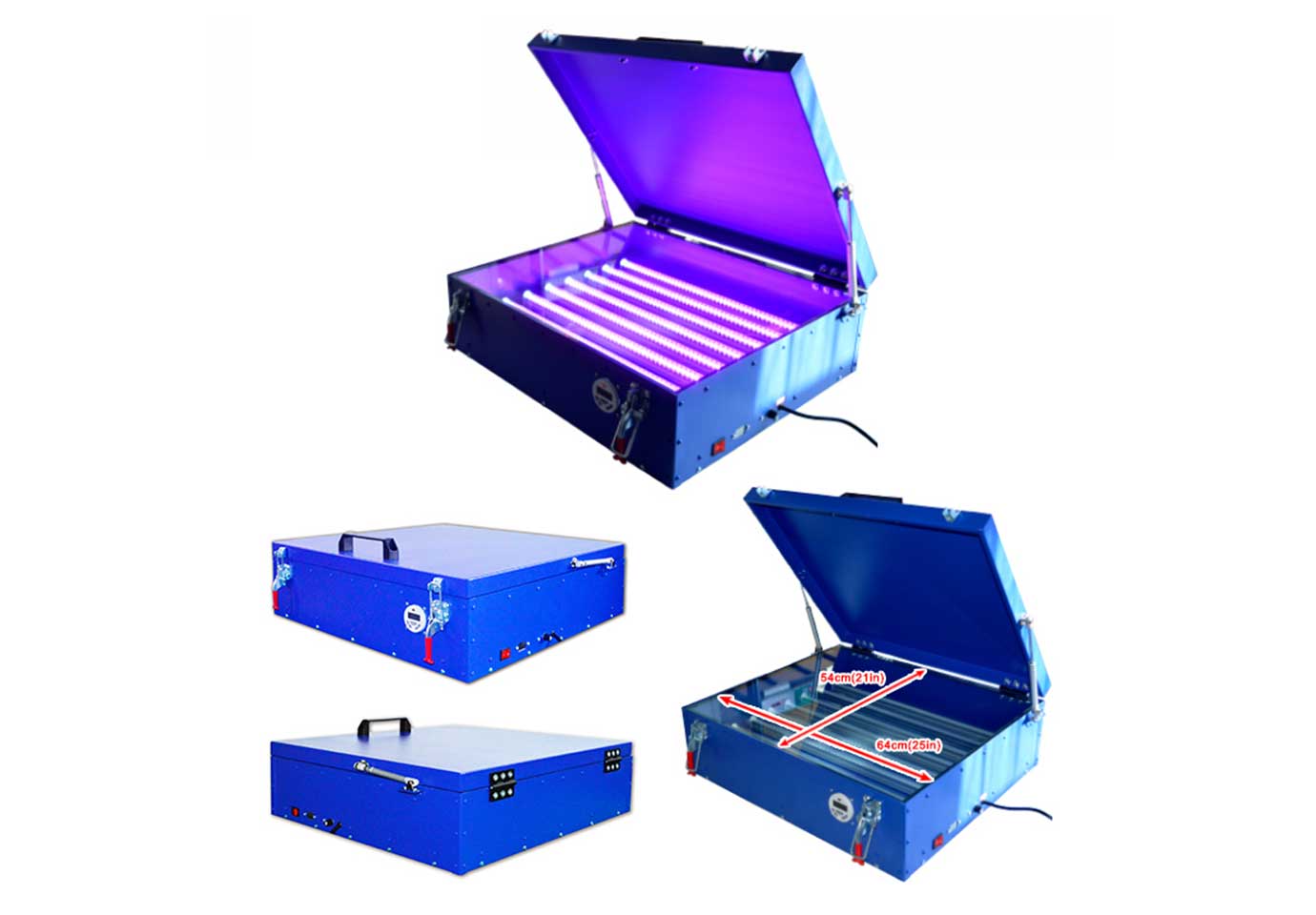

2 ,The exposing area is 64*54cm(25*21in),suitable for within outer diameter 64*54(25*21in),cm all kinds of frame
3 ,Equipped with 8mm Tempered glass plate,resistant to friction;the glass is broken,the glass shards are no sharp,to ensure the safety of operator
4 ,The timer can set the exposing time,after reach the exposing time,the machine automatically turns off the tubes
5 ,The timer have automatic memory function,set in once,whether the number of switch turn on or off,time will save

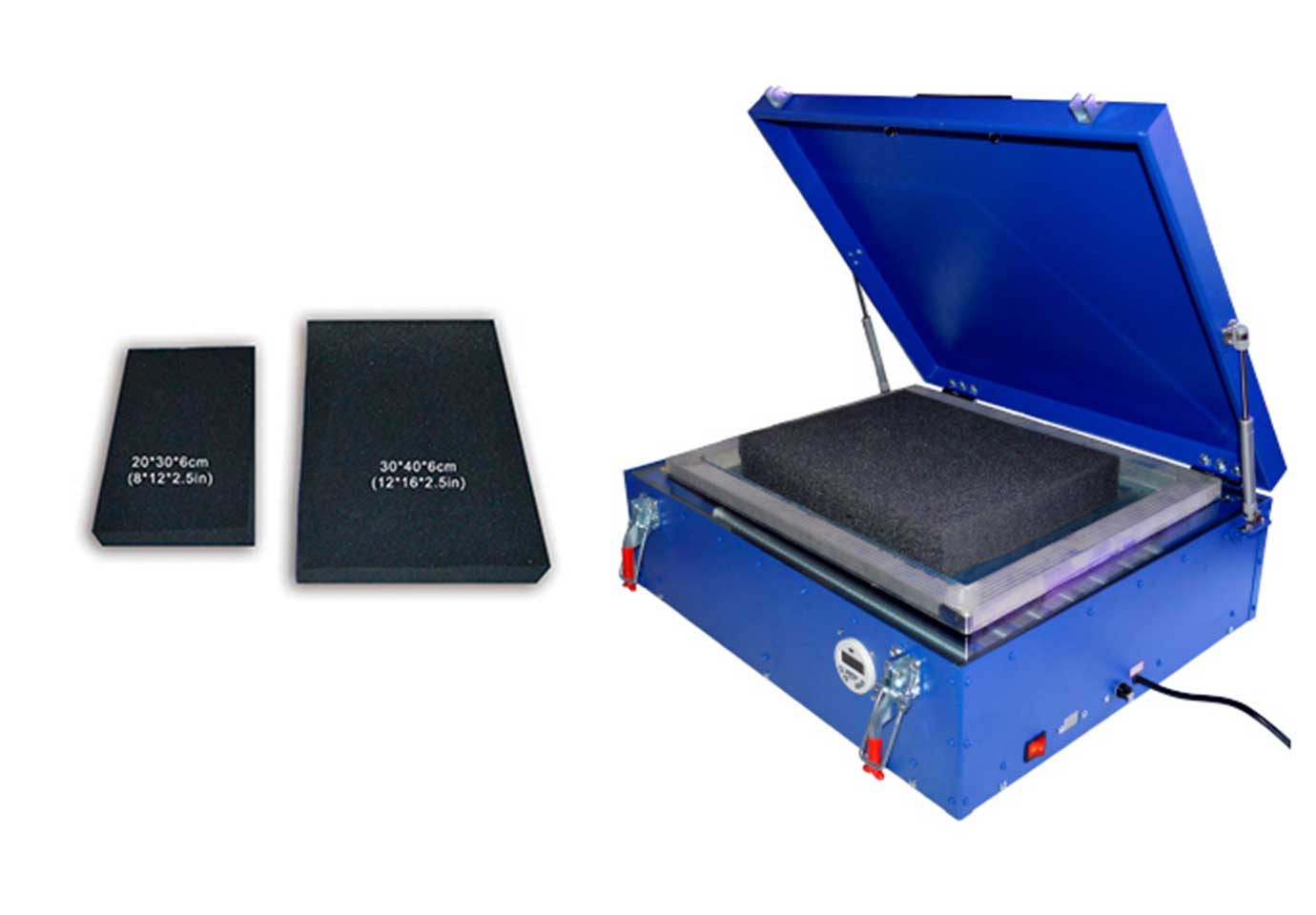

6 ,This machine equipped with 20*30*6cm and 30*40*6cm two sponges,used for press the film more closely,place a flat weight,improve the quantity of exposing

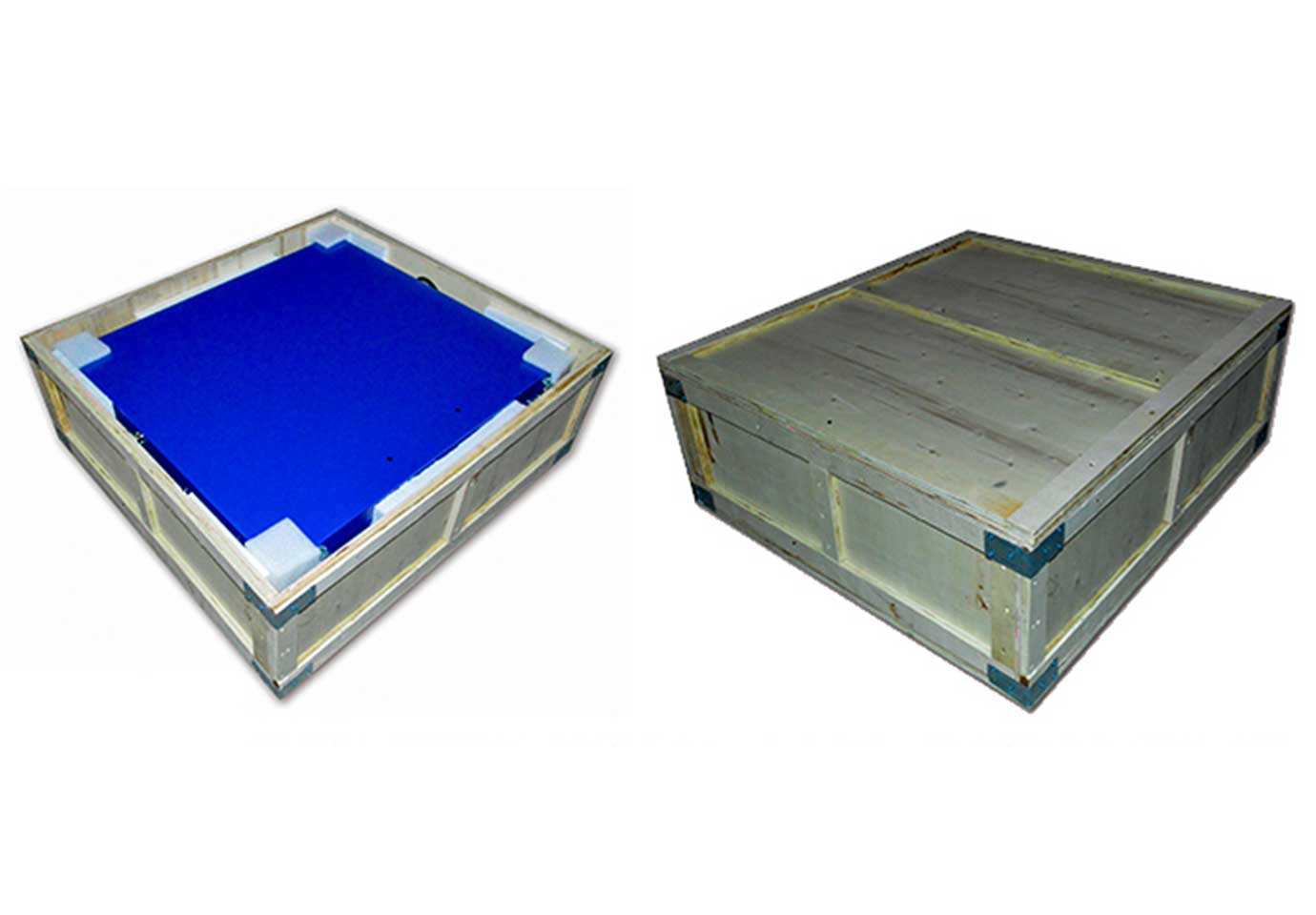

7 ,To ensure the transportation safety of tubes,all tubes are individually packaged in box,when install,remove the glass by sucker,insert the plugs on the two sides of tubes one by one,place the glass and use it
Methods of using the timer:
1,Before using, please press the “C” button to reset, the display shows 00:00 00 and it is flashing state.
2,Press the “hour” and “minute” and “second” button separately to set the countdown of the electrify time, the display shows “ON”
3,At first press the “C” button to remove the original set ; Then press “minute” set to”5″; press “seconds” set to “30”; Then press the “start/pause” to start the countdown, lamp open; After five minute 30 seconds countdown , plate burning machine tube closed.
This setting do not need to change, it is automatically saved.
when the machine starts again, the countdown is still 5 minutes and 30 seconds.
Basic parameters of the timer:
Countdown: 1 SEC – 99 hours 59 minutes and 59 seconds
Working temperature: – 25 c – 65 c
