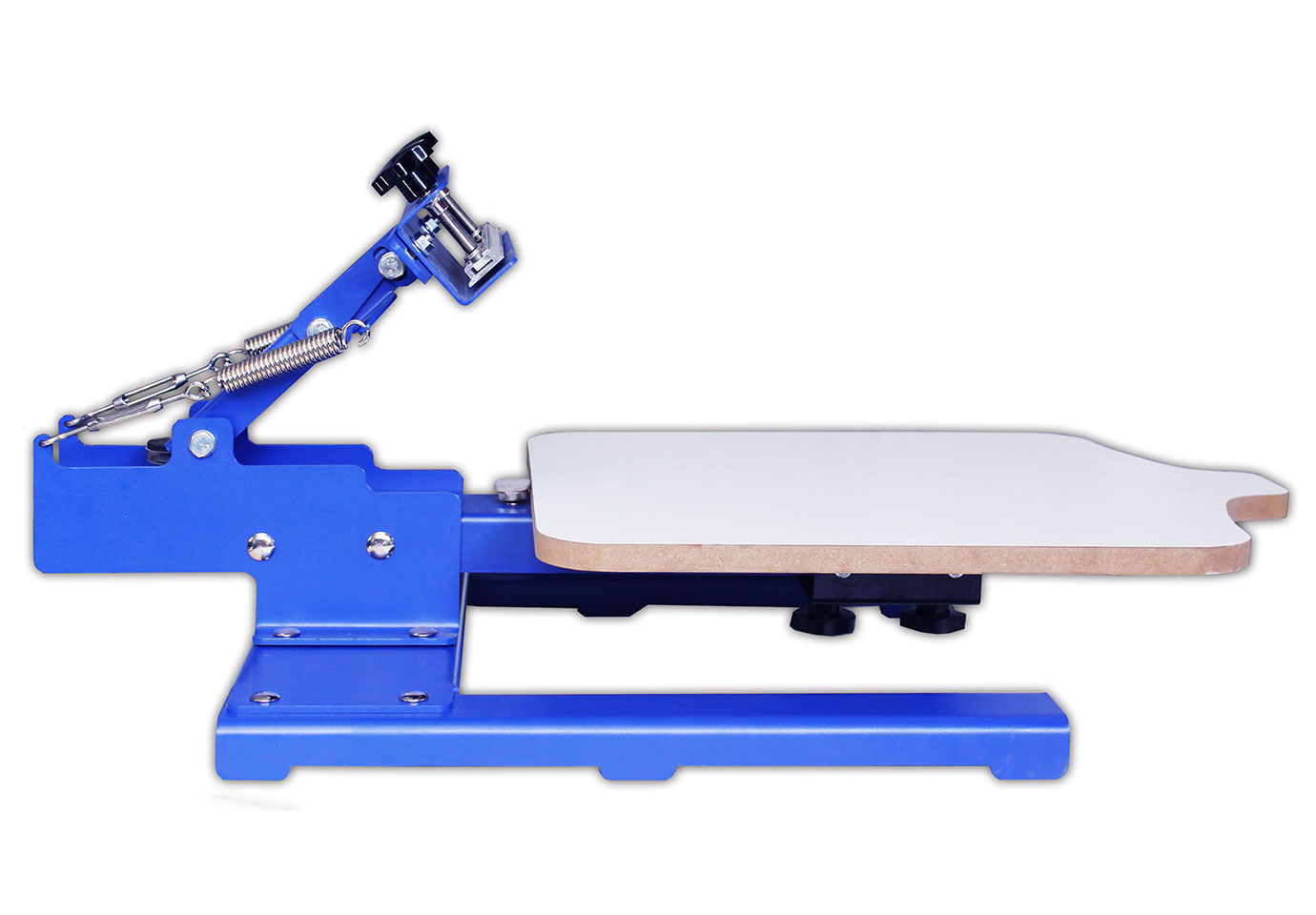

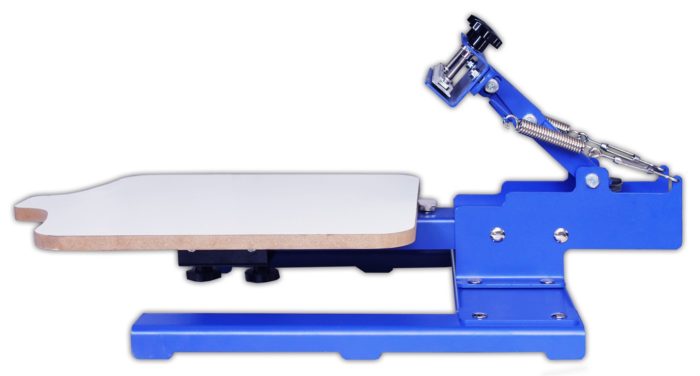

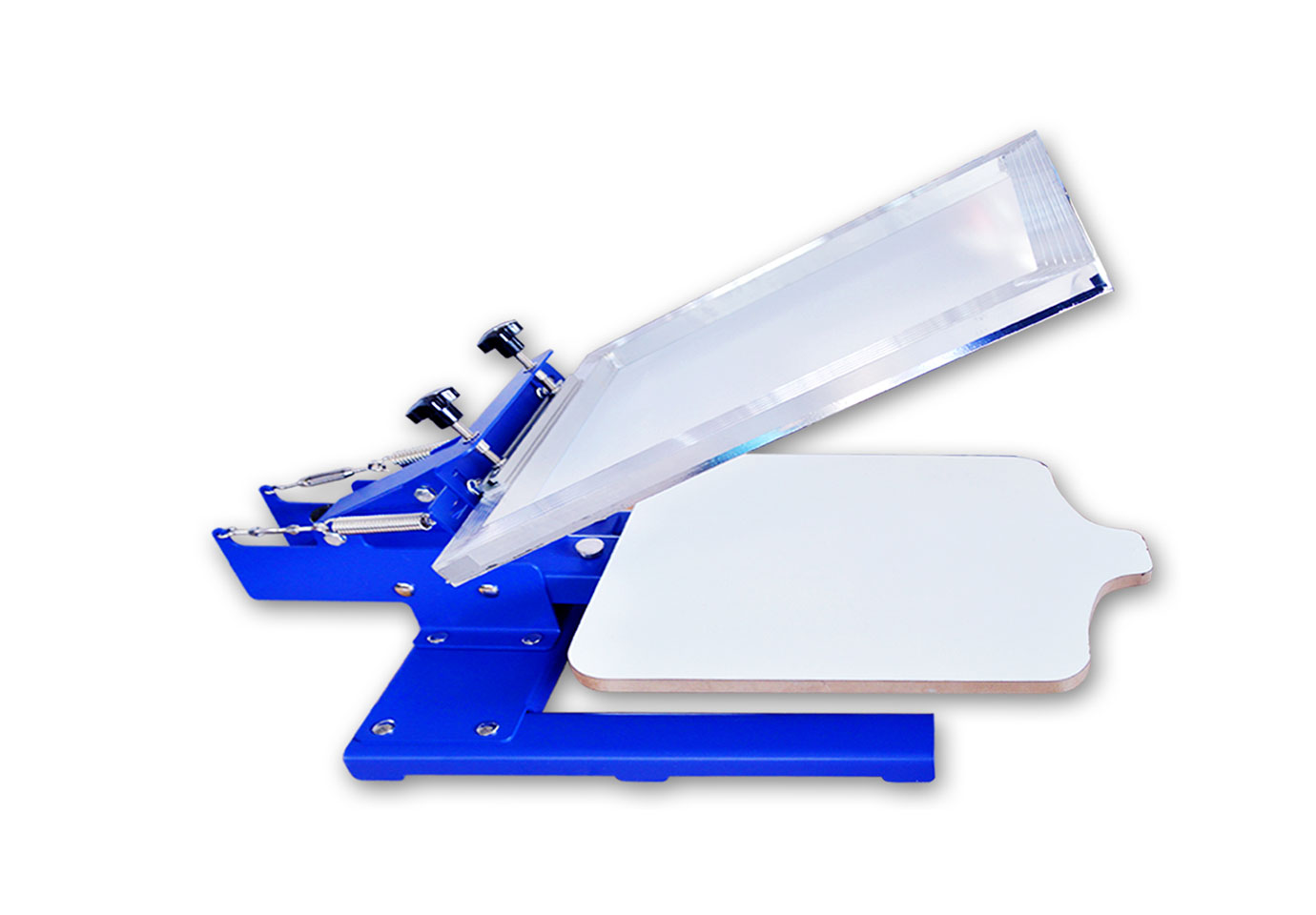

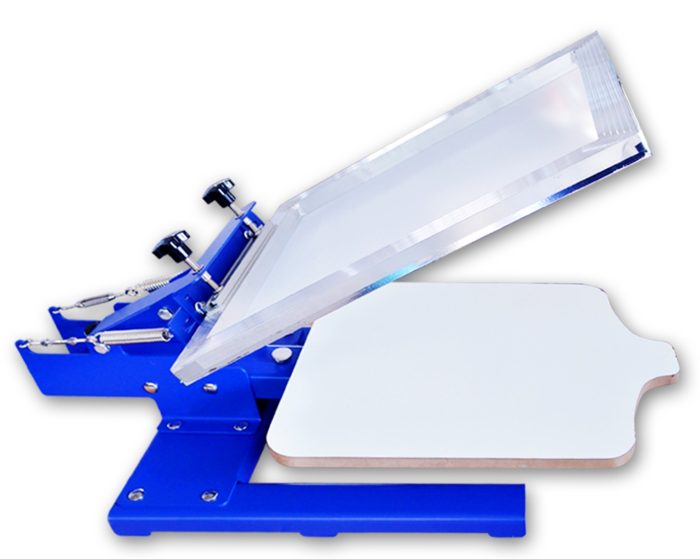

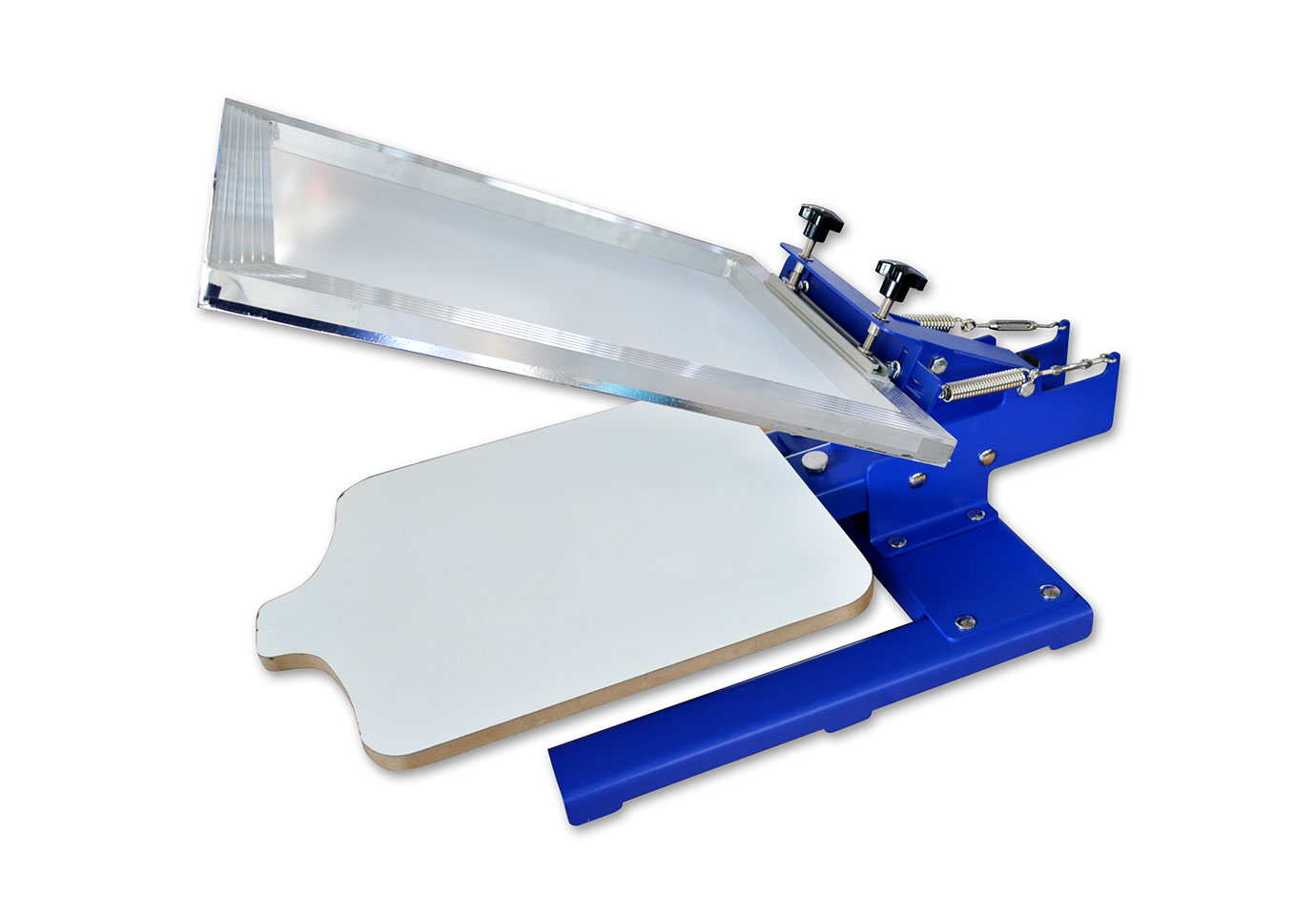

MK-T11D one color screen printing machine

MK-T11D

The MK-T11D one color screen printing machine is specially suitable for printing many designs in one screen frame. By moving the screen frame or the pallet , we can print designs on the different position of the t shirt.

The product has a better price:
  • We are a factory that produces screen printing mesh. The more you buy, the cheaper your price.

Description

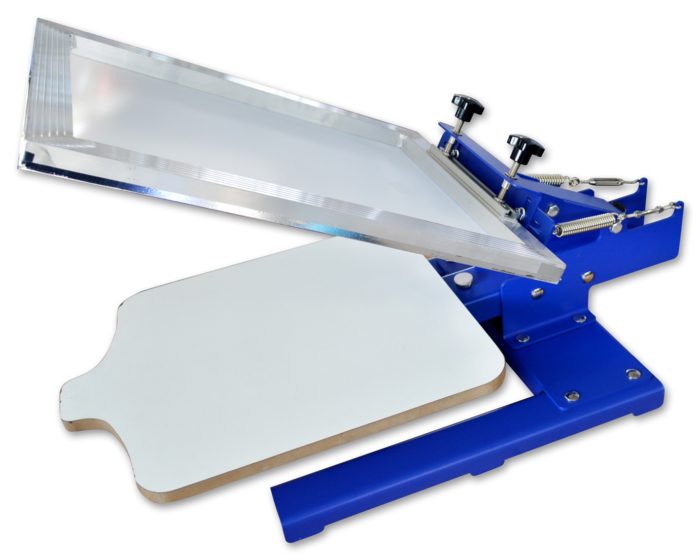

MK-T11D 1 color screen printing machine

The  MK-T11D 1 color screen printing machine can directly place on the desk  ,it is mainly used in the one color screen printing.

The MK-T11D 1 color screen printing machine is specially suitable for printing many designs in one screen frame. By moving the screen frame or the pallet , we can print designs on the different position of the t shirt.

Product Code 006203
Product Name MK-T11D one color screen printing machine
HS code 8443192290
Product Color blue
Printing Area 22*18in
Machine using material steel plate
Machine surface treatment Electrostatic spraying
Attachment material Stainless steel or zinc plating, nickel plating
Machine size 35*19*14in
Net weight 42lb
Gross weight 46lb
Packing size 27*21*11in
Packing volume 0.1 m³
Packing material Export fumigation



The MK-T11D 1 color screen printing machine functions and features:

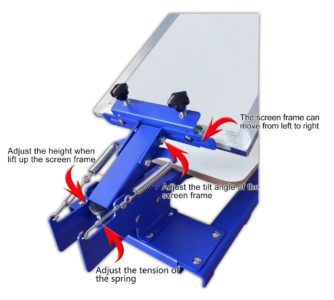

1)According to the height of the substrate ,chuck of the screen frame can adjust 1.6in from top to bottom;

2) According to the needs, pallet can adjust 4in from front to back;

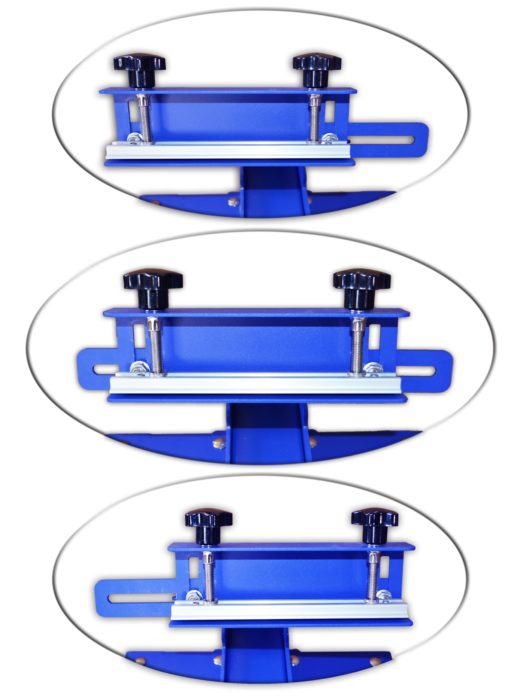

3)When the screen frame is fixed in the middle, the chuck and the screen frame can move 10in from left to right .

4) According to adjust the angle of the chuck ,the machine can print product with angle +12degree or -12degree.

5) by adjusting the turn buckle to suit different weight screen frames ;

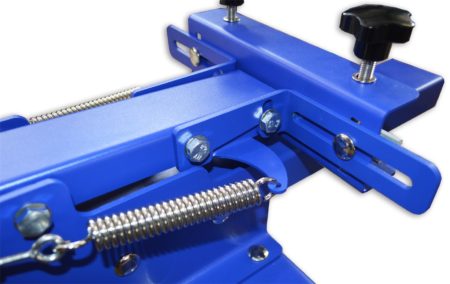

6) Fixing the screen frame adopts aluminium alloy pressing plate ,and it can make the screen frame more stable;

7) When lifting up the screen frame ,the angle can be adjusted by adjusting the screw.

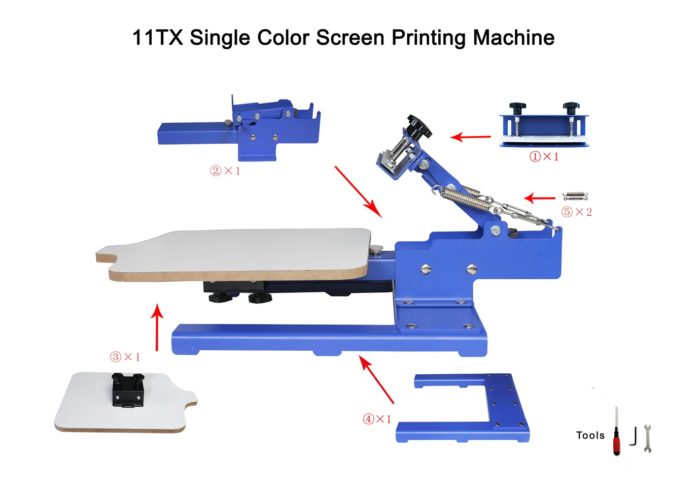

8) This machine is detachable structure, the user can install and use the machine according to the specifications and configuration of the full set of tools .
