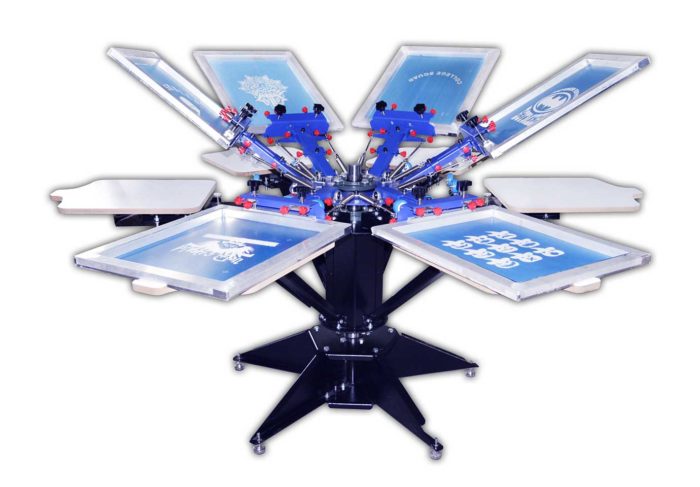

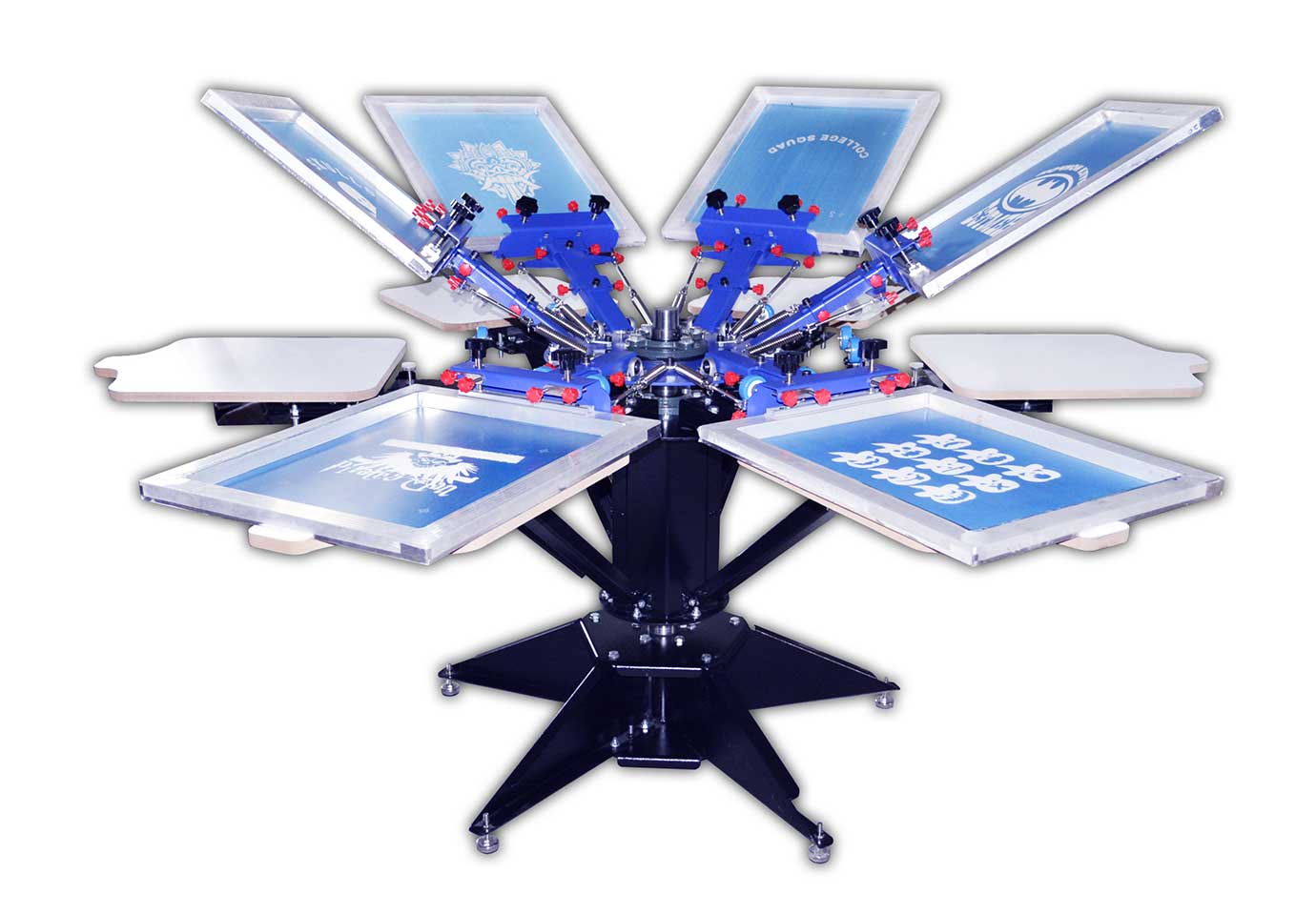

MK-F662D enhanced precise micro adjust six color six station double wheel overprinting screen printing machine
The product has a better price:
- We are a factory that produces screen printing mesh. The more you buy, the cheaper your price.

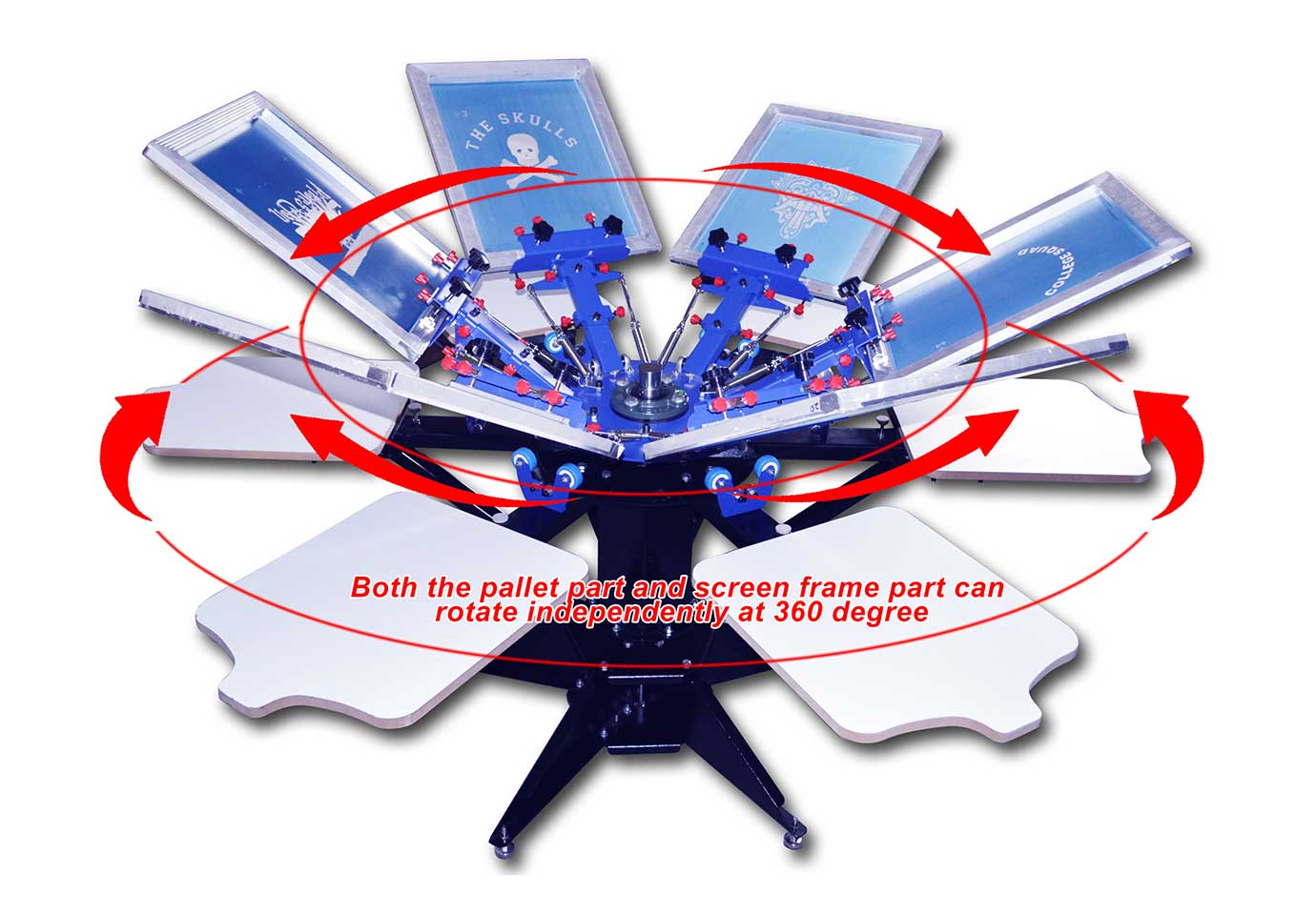

It is mainly used for the six color T-shirt overprinting,it is configured with four screen frame chucks and four t-shirt pallet stations.Both the pallet part and the screen frame part can rotate independently at 360 degree;Users can operate at any station.
Each screen frame fixing device is configured with manual micro-adjust knobs, and it can make the overprinting be more accurate.
If one dryer is placed on a station to flash dry the surface, two users are familiar with the machine, they can print 60-80 pieces six colors t-shirts each hour.
This machine is manual mobile screen frame to match color,all the screen frames’position is correct to any one pallet , the other one pallet will be correct , then the user can start overprinting.There is no need to correct the position of the color one by one.
|Product Name||MK-F662D enhanced precise micro adjust six color six station double wheel overprinting screen printing machine|
|Machine Using Material||Steel plate|
|Machine Surface Treatment||Electrostatic spraying|
|Attachment Material||Stainless steel or zinc plating, nickel plating|
|Packing Volume||1.2 m³|
|Packing Material||Export fumigation-free wooden case|
1. The chuck of the screen frame can rotate at 360 degree;Users can operate at any station or any pallet position.
2.Users can finish all the screen frame’s overprinting positioning at any pallet station,All the screen frames’position is correct to any one pallet , the other one pallet will be correct , then the user can start overprinting.There is no need to correct the position of every pallet.

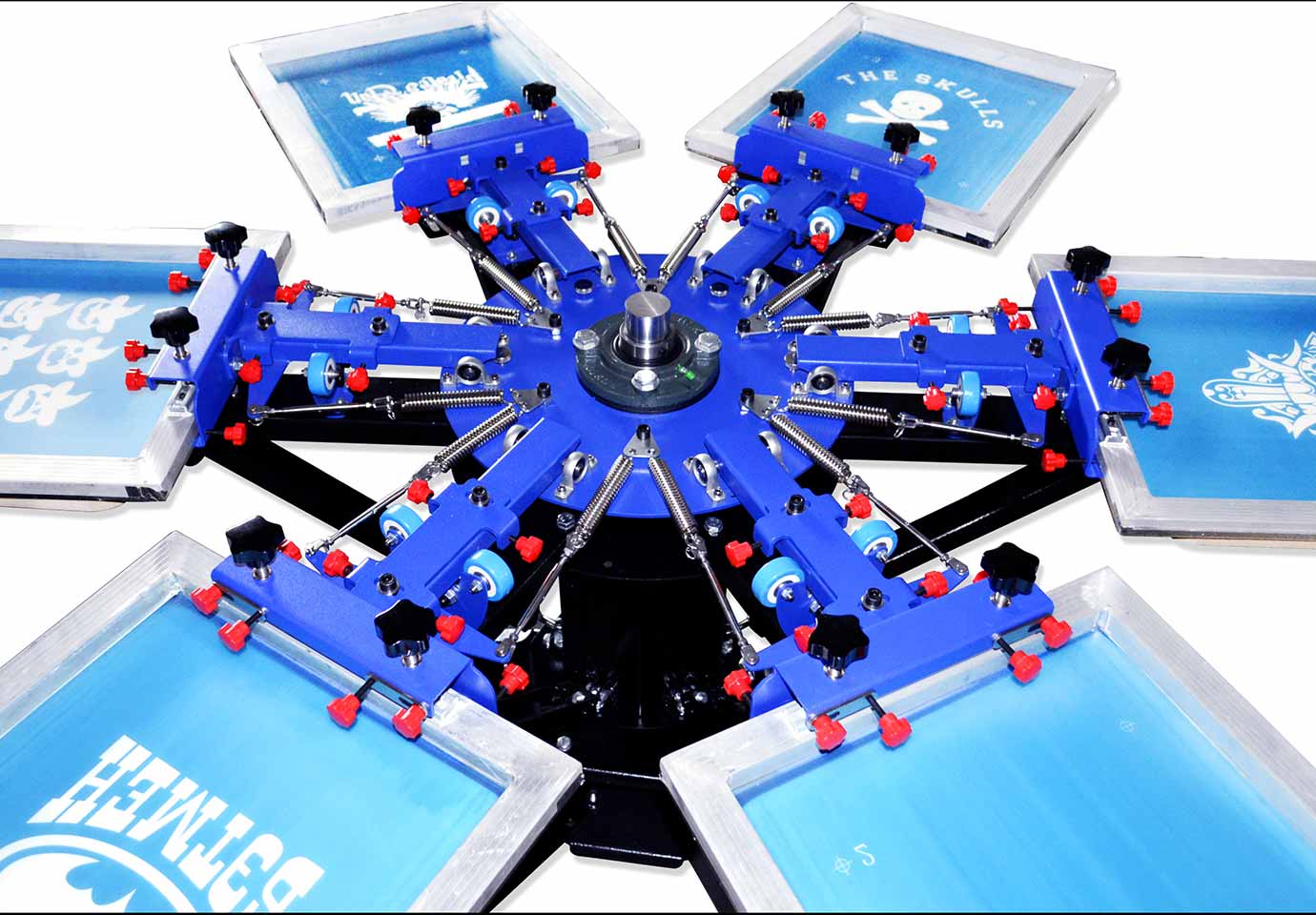

3.Each screen frame fixing device is configured with eight micro adjust knobs. By using the knobs ,user can micro adjust the screen frame from front to back , from left to right .It can make the overprinting more simple and more accurate.
4. Each screen frame’s fixing device is equipped wth precise positioning wheel,when the positioning iron on the arm placed in positioning wheel closely, it can ensure the printing precision.
5. Each screen frame’s fixing device is equipped wth big lock wheel, screen frame arm can easily fall into the metal positioning wheel when touch the two big lock wheels ,and it also can prevent the direct collision between the positioning iron and the metal positioning wheel.
6. Each screen frame’s fixing device is equipped wth big lock wheel, screen frame arm can easily fall into the metal positioning wheel when touch the two big lock wheels ,and it also can prevent the direct collision between the positioning iron and the metal positioning wheel.
7. According to the weight of the screen frame, spring tension can be adjusted by the basket screws to achieve balance.
8.Screen frame chuck’s width is (11in) 29 cm ; It is suitable for screen frame with outside size within (24 in) 60 cm and screen frame with thickness size is within 4 cm (1.6 in).
9.The screen frame chuck can be adjusted up to 5cm(2in) according to the height of the substrate.
11. The chuck of the screen frame can rotate at 360 degree;Users can operate at any station;
12. The pallet and pallet installation beam is connected by adjustable height connections,users can adjust the height of the pallet within 3cm(1in)according to need.
13. The pallet can move 10cm(4in)from front to back by the connections at the bottom of the pallet.
14. There is reinforced adjustable supporting beam installed at the bottom of each pallt.By tightening the screws at the bottom of the supporting beam,user can make the pallet be more stable,and it can also make sure the printing accurate.
15. T-shirt type pallet of the machine is 55 cm (22 in) long,45 cm(18in) wide,the thickness is 1.8 cm (0.7 in); Using furniture surface melamine high density board,the surface with small pits,and it is more suitable for printing T-shirt when scraping the pallet glue.
16. There are five supporting skew beams at the bottom of the machine .The machine is configured with.
10 machine rack supporting feet,and it can adjust the height of the whole machine within 4cm (1.6in) .
17, The machine adopts advanced electrostatic spraying process,various parts using stainless steel, aluminum alloy,nickel and zinc plating technology. They are corrosion resistance,no fading,easy to clean,maintain color and finish for a long time,and it can use for a long time with no rust.
All machines are configured with a full set of tools to install the machine; There is no need to prepare for other tools to complete the installation; Equipped with installation diagram and the packing list,parts installation location is very clear; All machines are configured with installation CD and operation video, it is more convenient for the user to install and use the machine .There are still spare parts in the box for users to change.
