MK-F6045AT-3000W Floor Type Movable Flash Dryer

MK-F6045AT-3000W

The Flash Dryer adopts intelligent instrument temperature control system to adjust the temperature;when reach the drying temperature,the instrument will automatically turn on and off to remain the drying temperament;save electricity 30%-60%

The product has a better price:
  • We are a factory that produces screen printing mesh. The more you buy, the cheaper your price.

Description

The machine adopts intelligent instrument temperature control system to adjust the temperature;when reach the drying temperature,the instrument will automatically turn on and off to remain the drying temperament;save electricity 30%-60%
Six heating tubes are divided into three groups of separate control,use a single group,combined use
Mainly equipped with screen printing machine,drying the product during the printing,improve the efficiency of printing

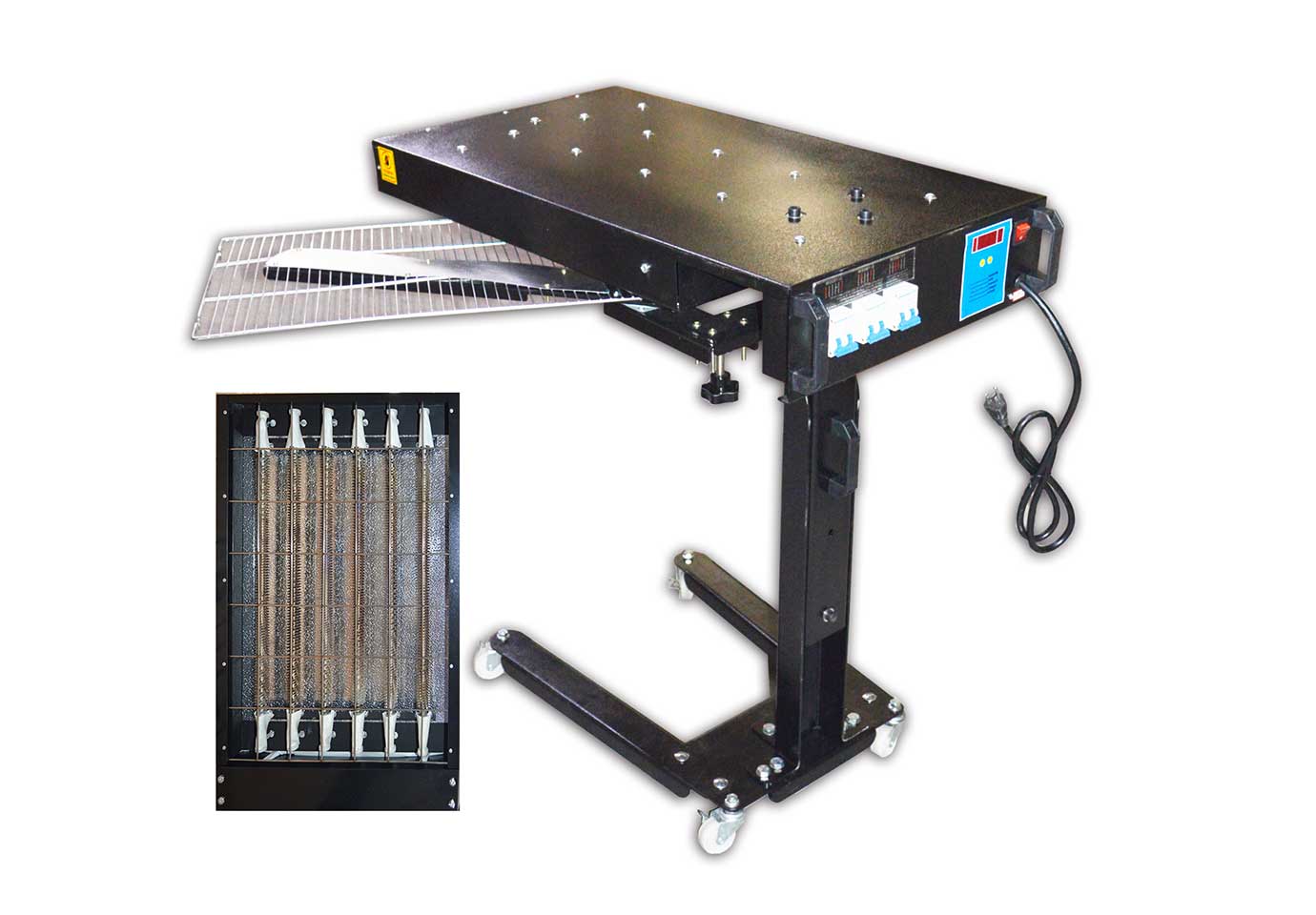

This machine equipped with a height adjustable,left and right rotating drying platform,this platform can be used as the final drying of substrates

Product Code 006285 (110V)    006286 (220V)
Product Name MK-F6045AT-3000W Floor Type Movable Flash Dryer
HS code 8419399090
Product Color Black
Size of Drying Box 24*18inch
Heating tube material Stainless Steel Heating Tubes
Voltage 220v/110v
Power 3000w
Plug American standard,National standard,European standard
Machine using material steel plate
Machine surface treatment Electrostatic spraying
Attachment material Stainless steel or zinc plating, nickel plating
Net weight 79lb
Gross weight 86lb
Packing size 38*21*11in
Packing volume 0.14 m³
Packing material Export fumigation

The functions and features of this machine:

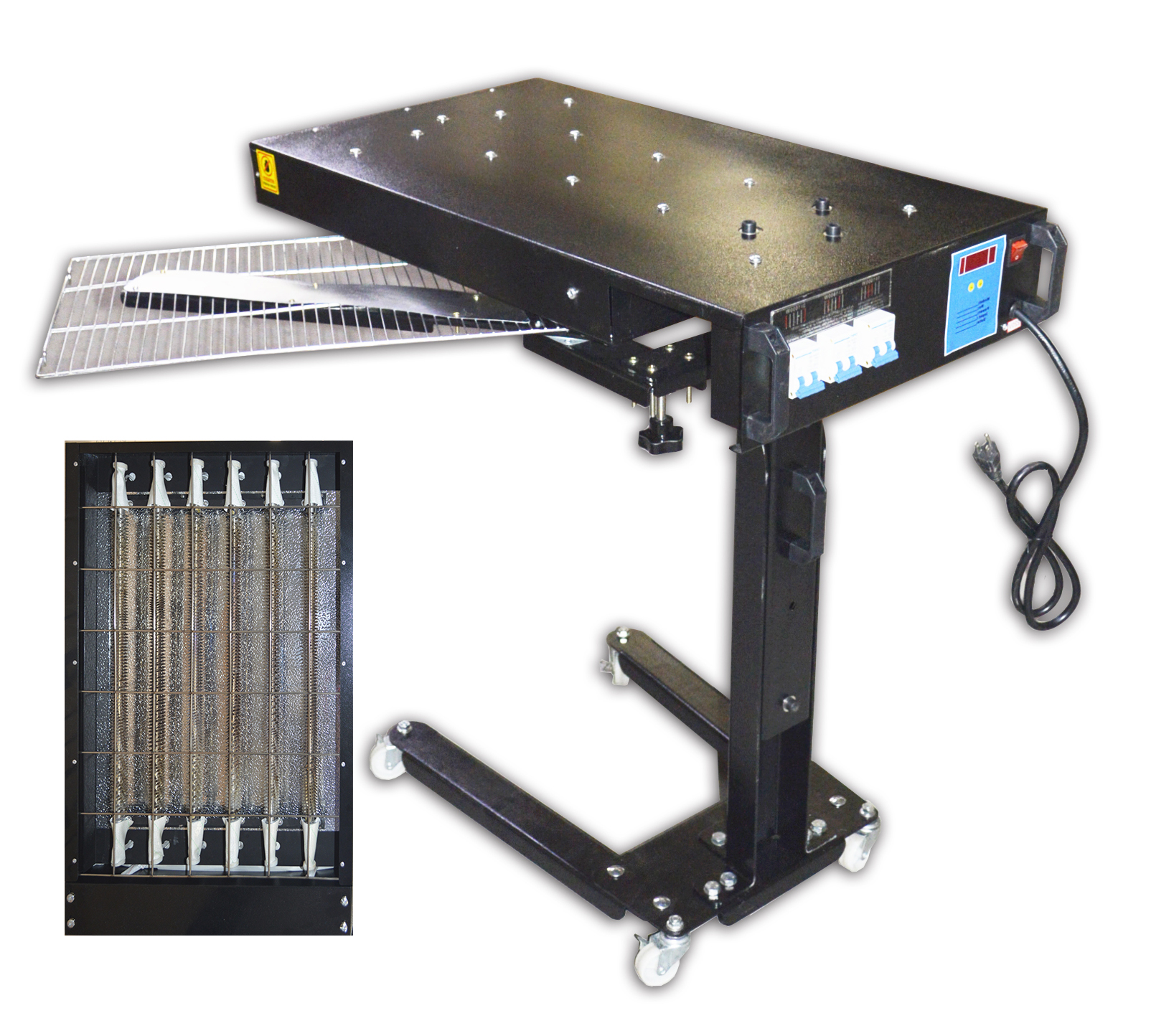

1 ,The heating tubes adopts six stainless steel heating tubes (500W of each),High heating efficiency,it can normally be used for about 10000 hours

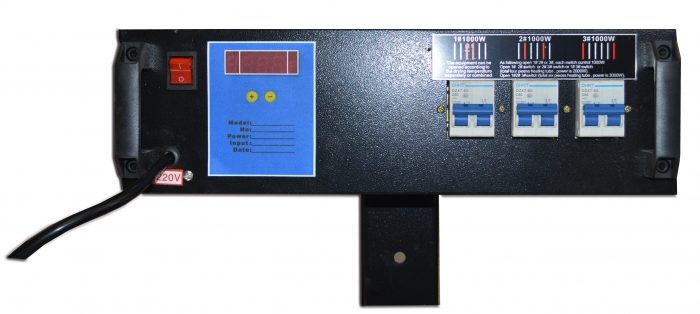

2 ,Six heating tubes are divided into three groups of separate control,use a single group,combined use


3 ,The size of drying box is 45*60cm

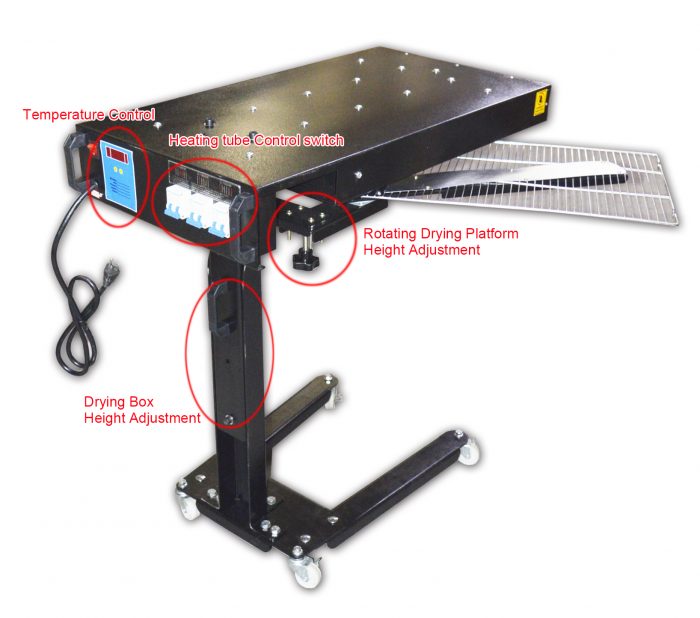

4 ,The drying temperature of this machine just need to set the meter;with three heating tubes on or off


5, The bottom of the dryer is 68cm distant from the ground, the highest can be adjust to 100cm.

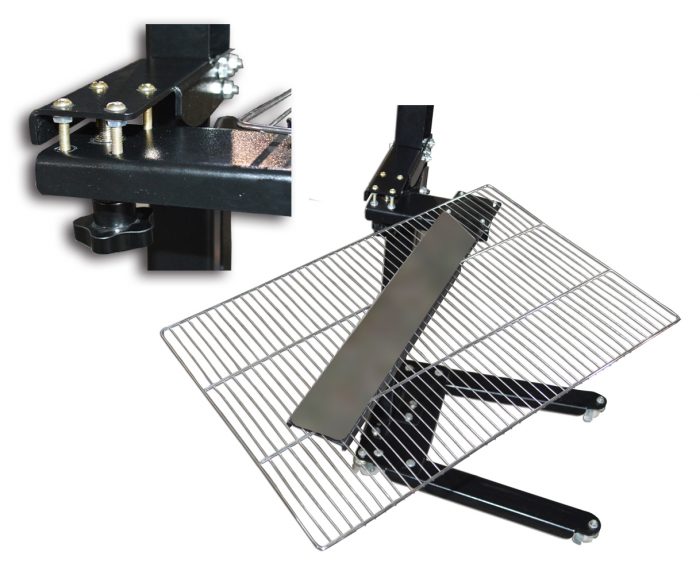

6, The machine is equipped with rotating drying platform with size 40*60cm, drying platform using nickel plated steel ; The height can be adjusted within 4 cm;

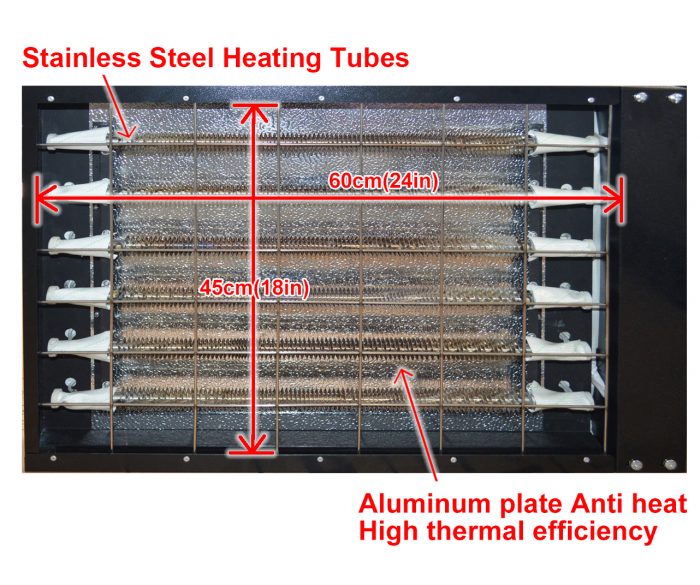

7, The back of the heating pipe is hot aluminum plate, its thermal efficiency is higher.

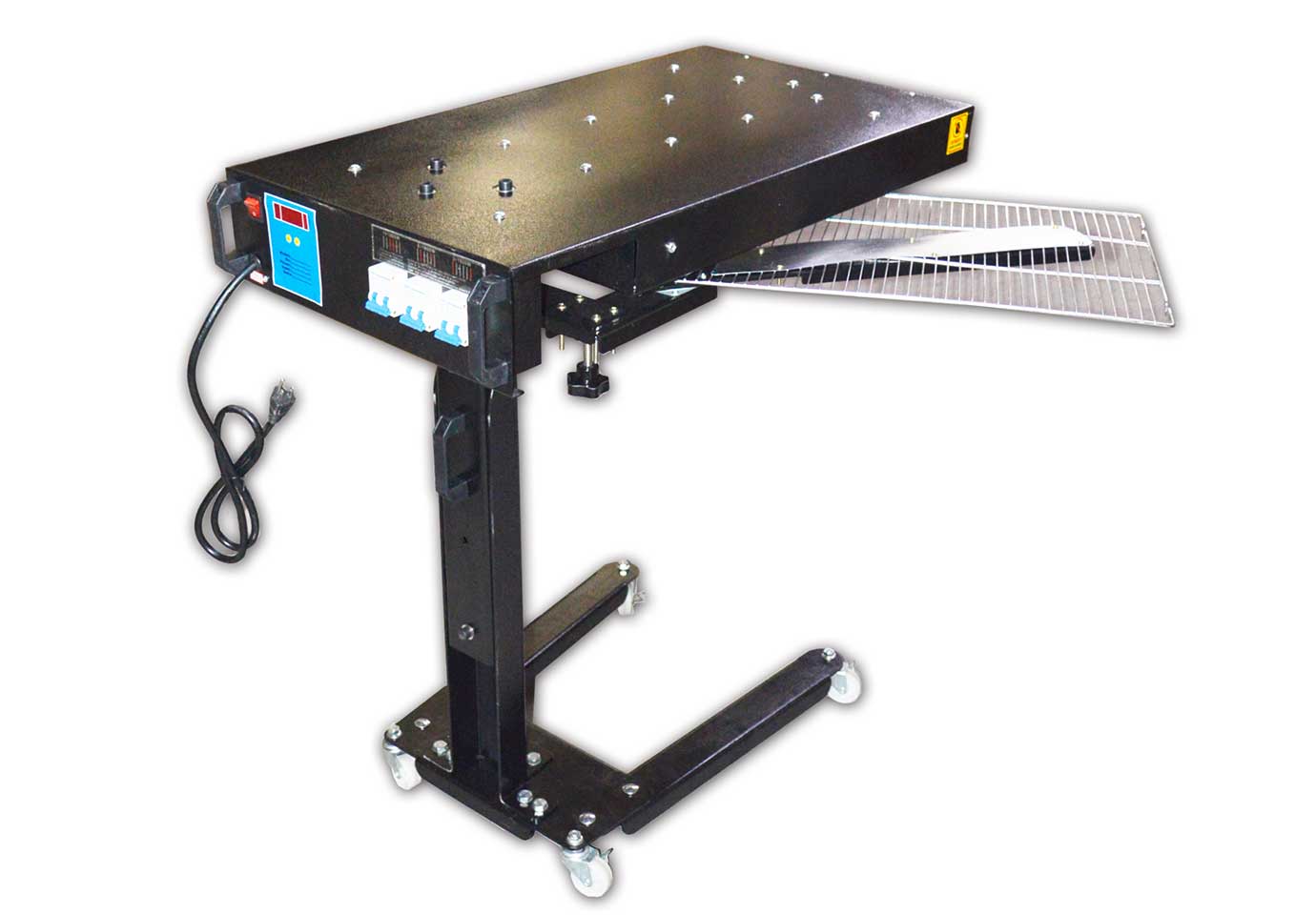

8, The bottom is equipped with casters , it can move arbitrary.

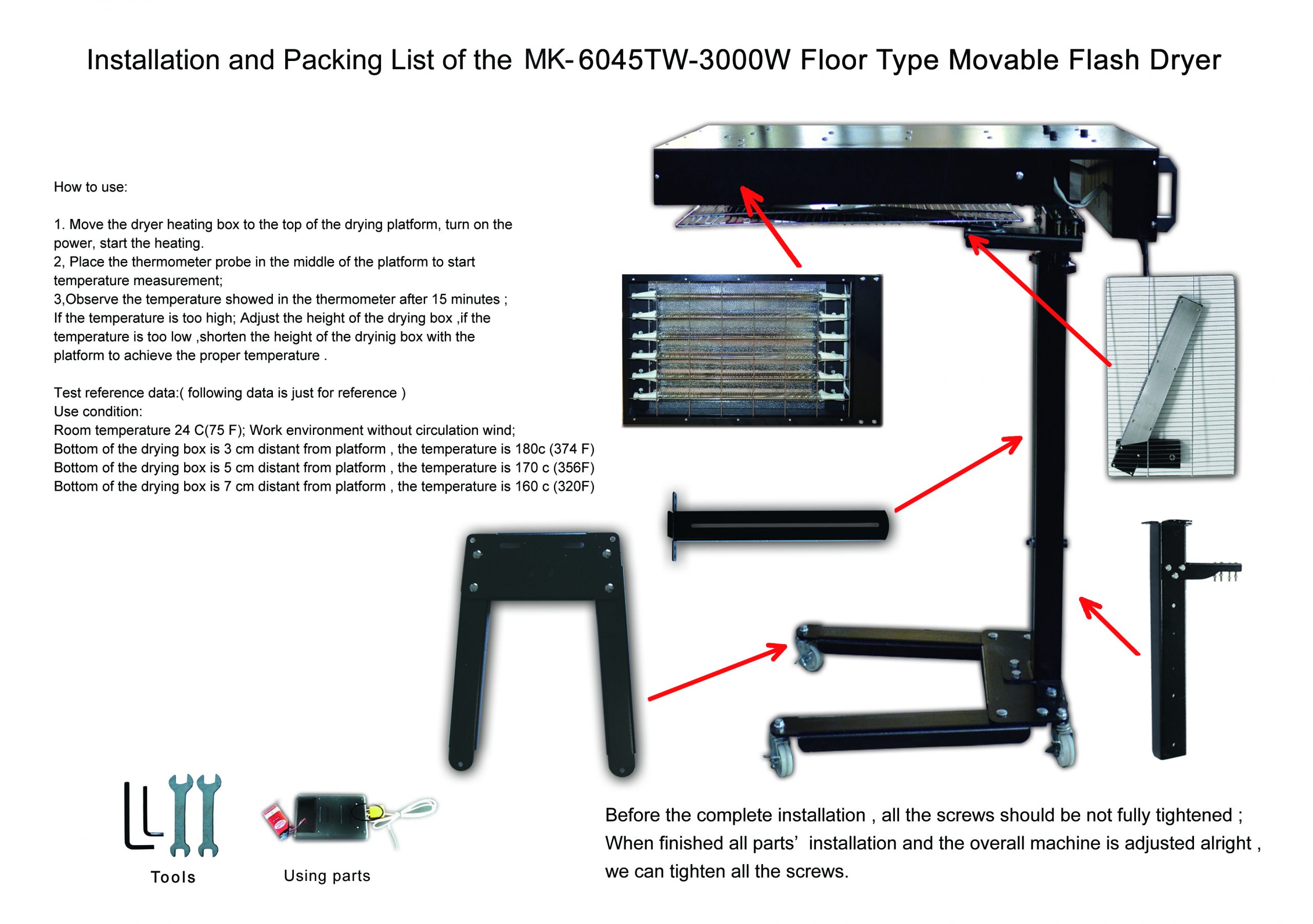

9, Prepare for the full set installation tools, test thermometer and installation instructions.

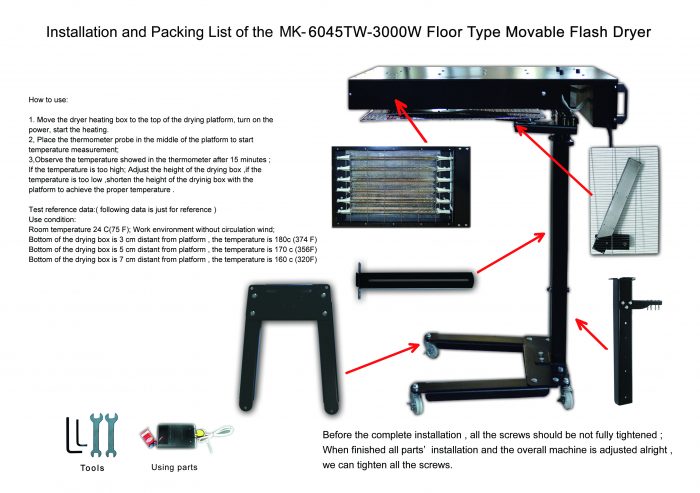

How to use:
For example we set the substrates needed for drying temperature is 180 C (356 F);
1. Move the dryer heating box to the top of the drying platform, bottom of the drying box is 3cm distant from the drying platform, turn on the 5 heat tubes, start the heating.
2. Set the instrument to “60” (the number is not temperature display, it represent the hierarchical data when set temperature control)
3. Place the thermometer probe in the middle of the platform to start temperature measurement;
Observe the temperature showed in the thermometer after 15 minutes ;
If the temperature is too high; Adjust the instrument settings to reduce a level as the “50”; Or raise the drying box 2-4 cm; Observe the thermometer display; When the temperature reach 180 C (356F); Adjustment of low temperature is just the same way;

Test reference data:( following data is just for reference )
Use condition:
Room temperature 24 C(75 F); Work environment without circulation wind; Bottom of drying box is 3 cm distant from the drying platform; Turn on six heating tubes.
Instrument Sets “20”, bottom of the drying box is 3 cm distant from platform , the temperature is 46 c (115 F)
Instrument Sets “25”, bottom of the drying box is 3 cm distant from platform , the temperature is 55 c (131 F)
Instrument Sets “30”, bottom of the drying box is 3 cm distant from platform , the temperature is 76 c (169F)
Instrument Sets “40”, bottom of the drying box is 3 cm distant from platform , the temperature is 96 c (205 F)
Instrument Sets “45”, bottom of the drying box is 3 cm distant from platform , the temperature is 120 c (248F)
Instrument Sets “50”, bottom of the drying box is 3 cm distant from platform , the temperature is 143 c (289 F)
Instrument Sets “60”, bottom of the drying box is 3 cm distant from platform , the temperature is 180c (356 F)
Instrument Sets “75”, bottom of the drying box is 3 cm distant from platform , the temperature is 199 c (390 F)
Instrument Sets “80”, bottom of the drying box is 3 cm distant from platform , the temperature is 208 c (406 F)
