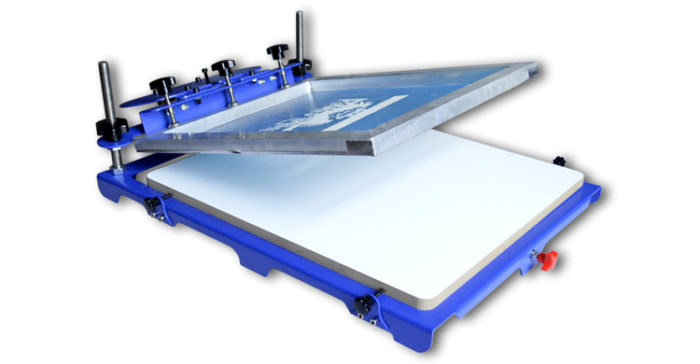

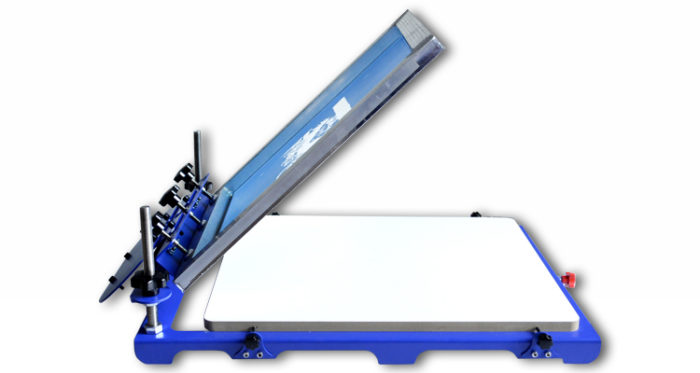

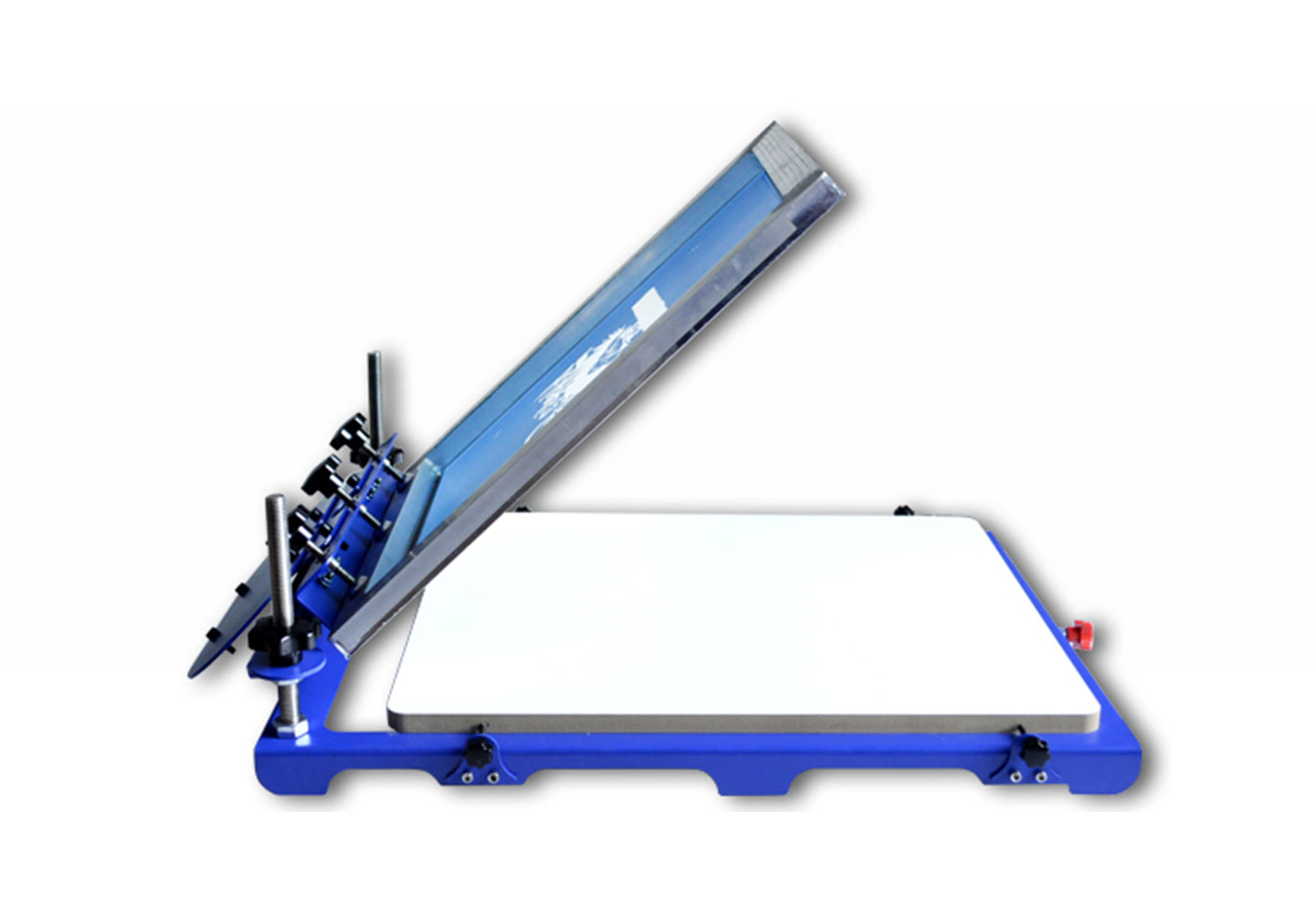

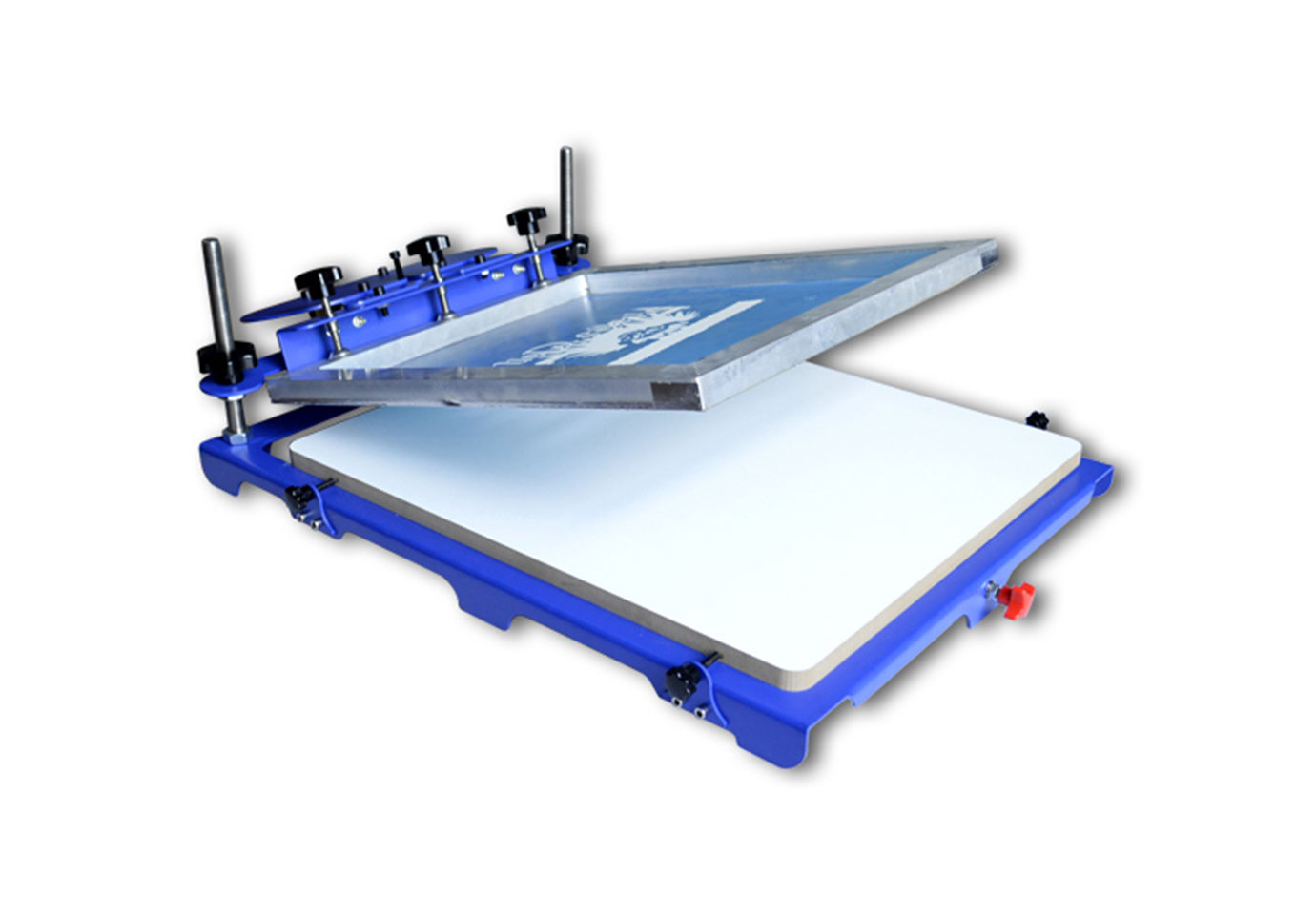

MK-T11F micro-adjust one color screen printing machine

MK-T11F

The MK-T11F micro-adjust one color screen printing machine area is 62*52cm, it is mainly used in printing some products within 60*50cm ,such as advertising board,cloth sheet ,iron box and paper box and so on.

The product has a better price:
  • We are a factory that produces screen printing mesh. The more you buy, the cheaper your price.

Description

MK-T11F micro-adjust one color screen printing machine

The printing area is 62*52cm, it is mainly used in printing some products within 60*50cm ,such as advertising board,cloth sheet ,iron box and paper box and so on.

Product Code 006015
Product Name MK-T11F  micro-adjust one color screen printing machine
HS code 8443192290
Product Color blue
Printing Area 20*24in
Machine using material steel plate
Machine surface treatment Electrostatic spraying
Attachment material Stainless steel or zinc plating, nickel plating
Machine size 30*22*10in
Net weight 40lb
Gross weight 46lb
Packing size 32*24*5in
Packing volume 0.07 m³
Packing material Export fumigation

The functions and features:

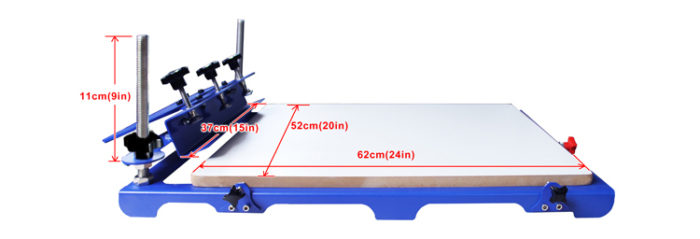

1.Width of the screen frame chuck is 37cm, it is suitable for screen frames within outer size 70cm.
2.According to the height of the substrate ,chuck of the screen frame can adjust 11cm from top to bottom;

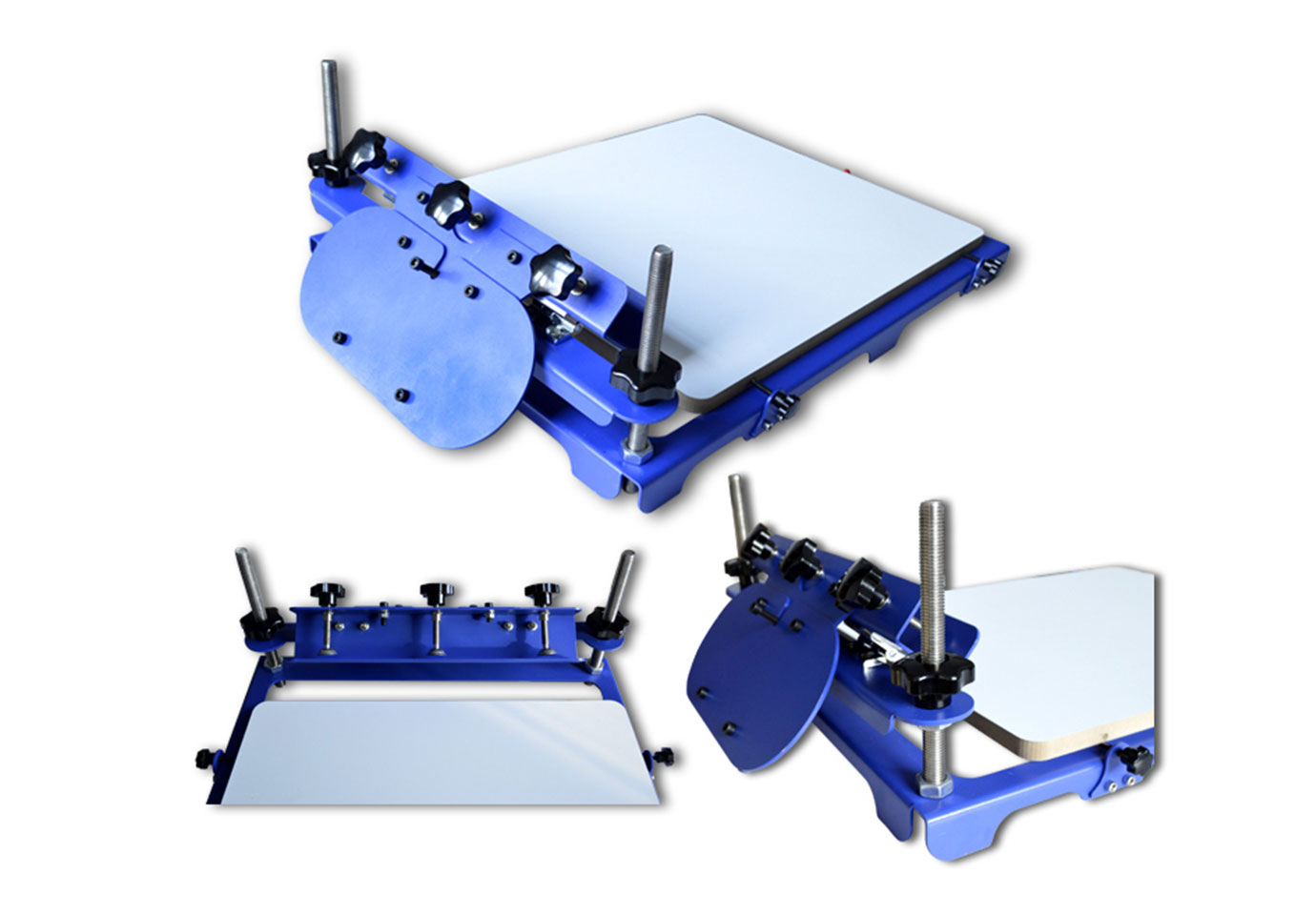

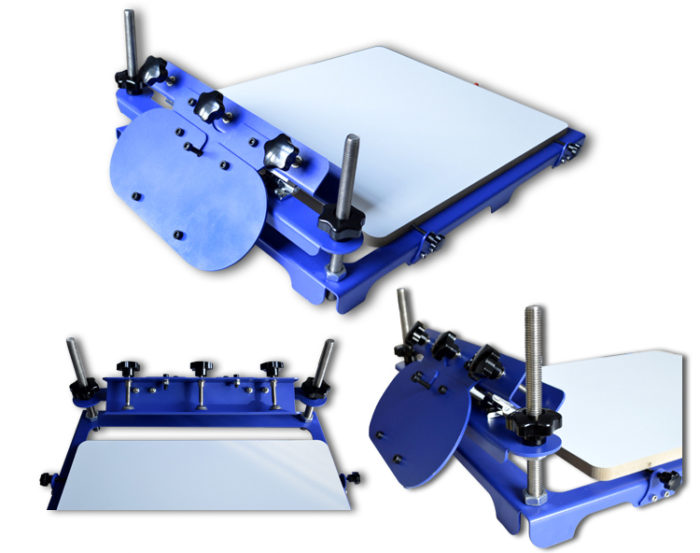

3.There are micro-adjust knobs , the pallet can be micro adjust 2cm,from top to bottom,from left to right.

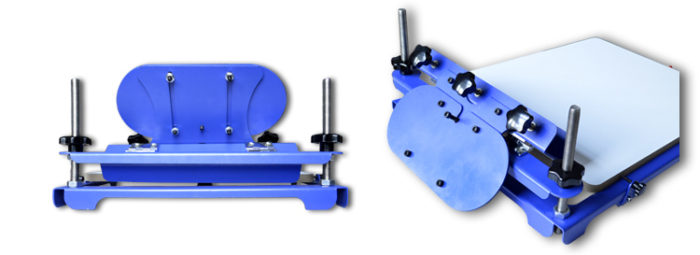

4.The balance of the screen frame adopts heavy metal sliding balance sheet; According to the weight of the screen frame to adjust the balance of the sheet and the screen frame.

5.When two sets machines used at the same time,change the suitable pallet , it can print products that size is 60*150cm.

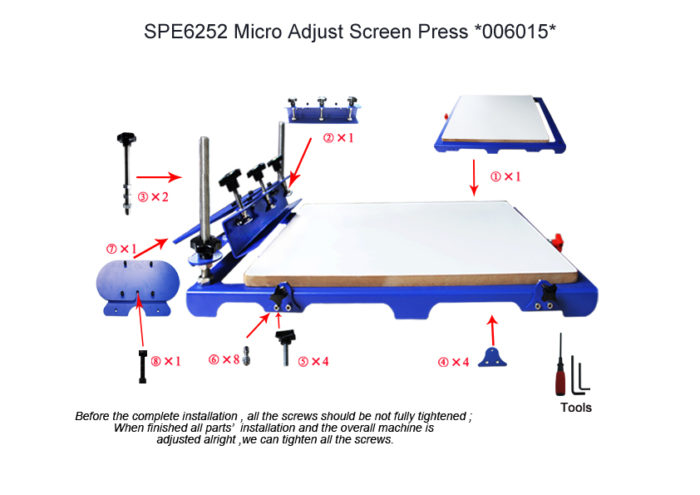

6.This machine is detachable structure, the user can install and use the machine according to the specifications and configuration of the full set of tools .
