MK-LEDE6070V vacuum exposure unit (110-220v)

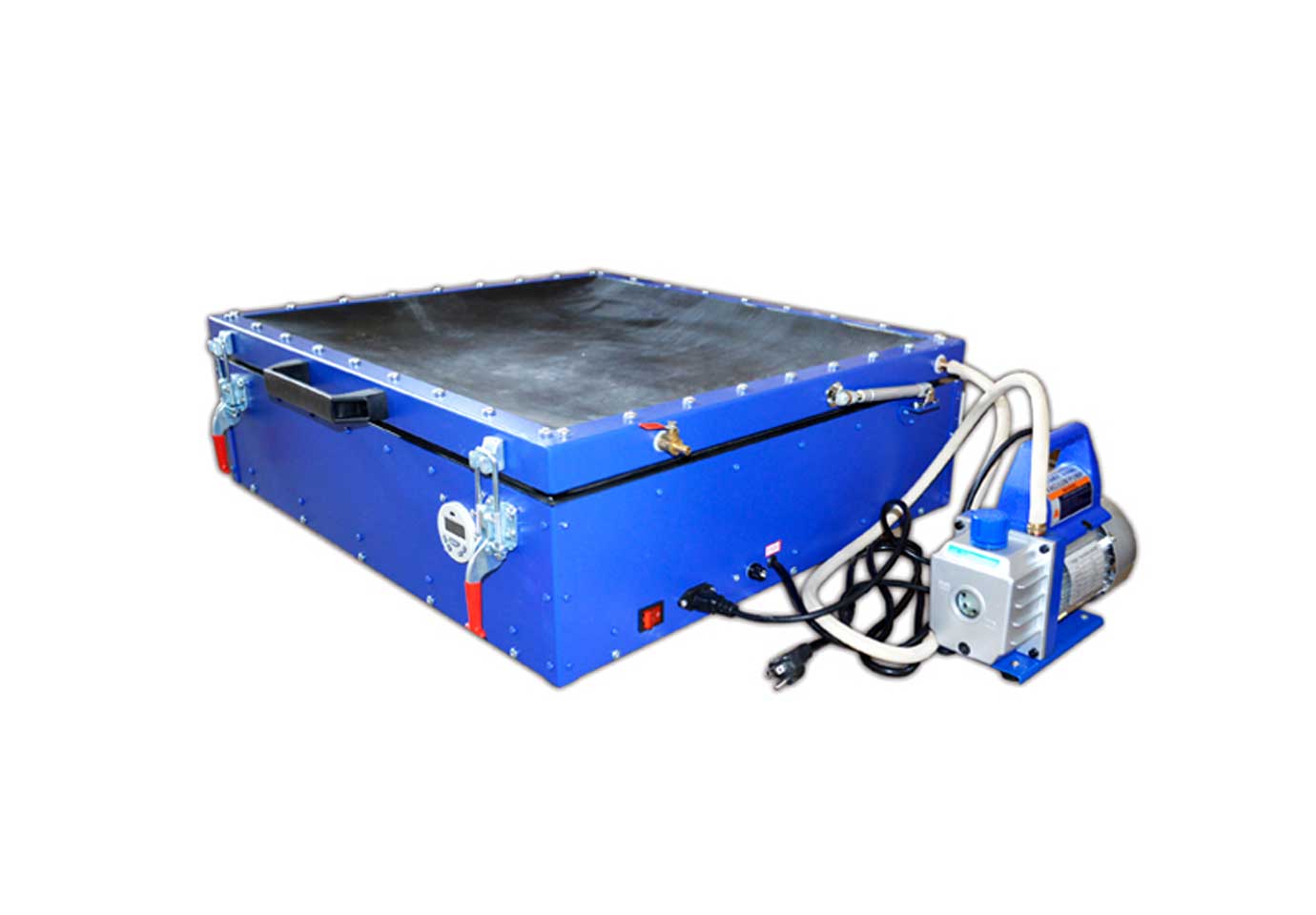

MK-LEDE6070V

This exposure unit mainly used for exposure screens;and it is suitable for exposing different size screen frames within outsize 68*62cm.

The product has a better price:
  • We are a factory that produces screen printing mesh. The more you buy, the cheaper your price.

Description

This exposure unit mainly used for exposure screens;and it is suitable for exposing different size screen frames within outsize 68*62cm.

There are twelve LED light tubes;the exposing area is 71*64cm;Adopt countdown timer to set the exposing time;the timer will automatically save and memory your set data.

Product Code 006857
Product Name MK-LEDE6070V  vacuum exposure unit (110-220v)
Exposure size 24*26in
HS code 8442302900
Product Color blue
Voltage 220v/110v
Plug American standard,National standard,European standard
Machine using material steel plate
Machine surface treatment Electrostatic spraying
Attachment material Stainless steel or zinc plating, nickel plating
Machine size 31.5*28.3*9.4inch
Net weight 117lb
Gross weight 128lb
Packing size 36*29*12.4inch
Packing volume 0.22m³
Packing material Export fumigation-free wooden case

The functions and features of this machine:

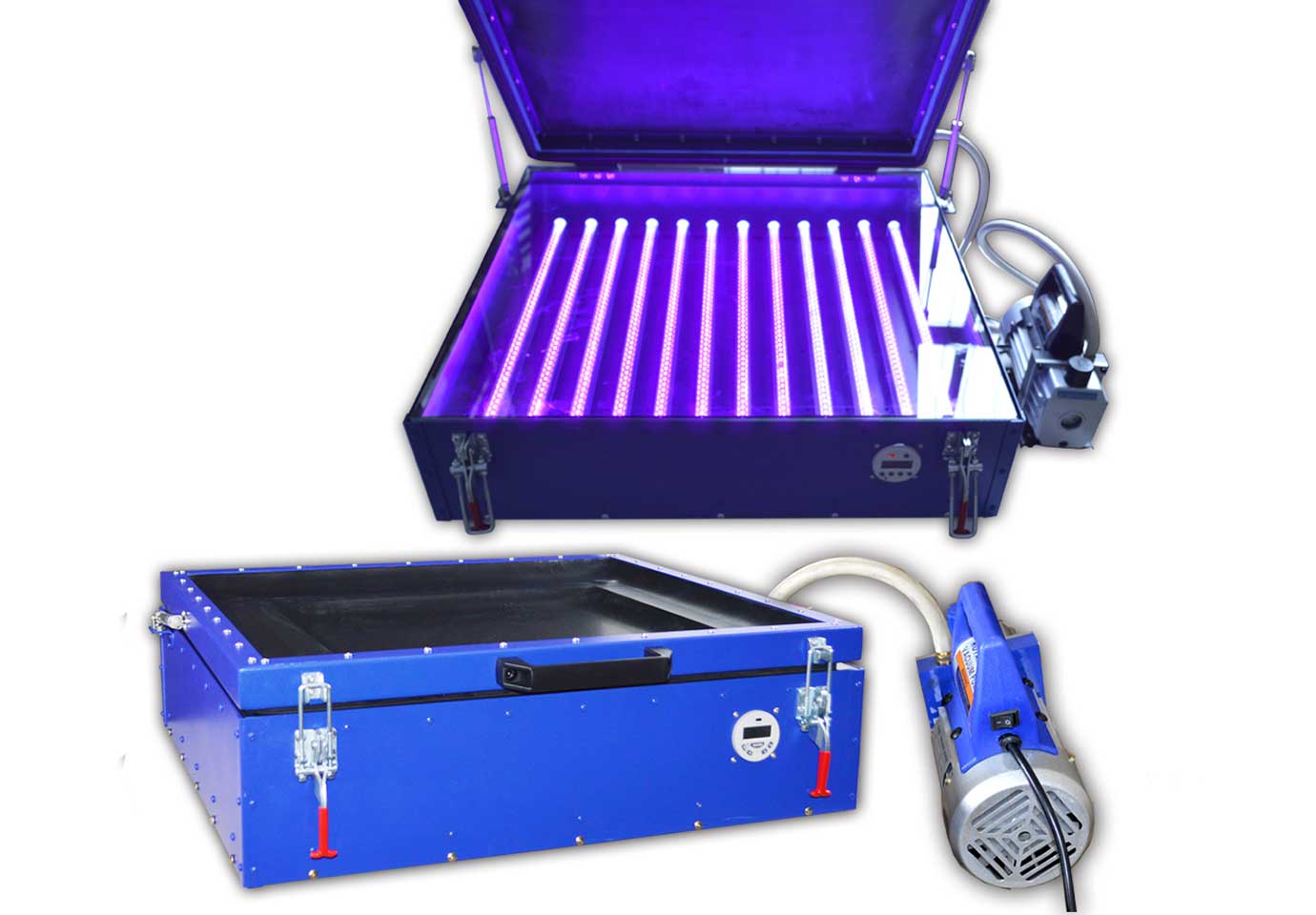

1 ,There are twelve LED light tubes,it can normally be used for about 10,000 hours.

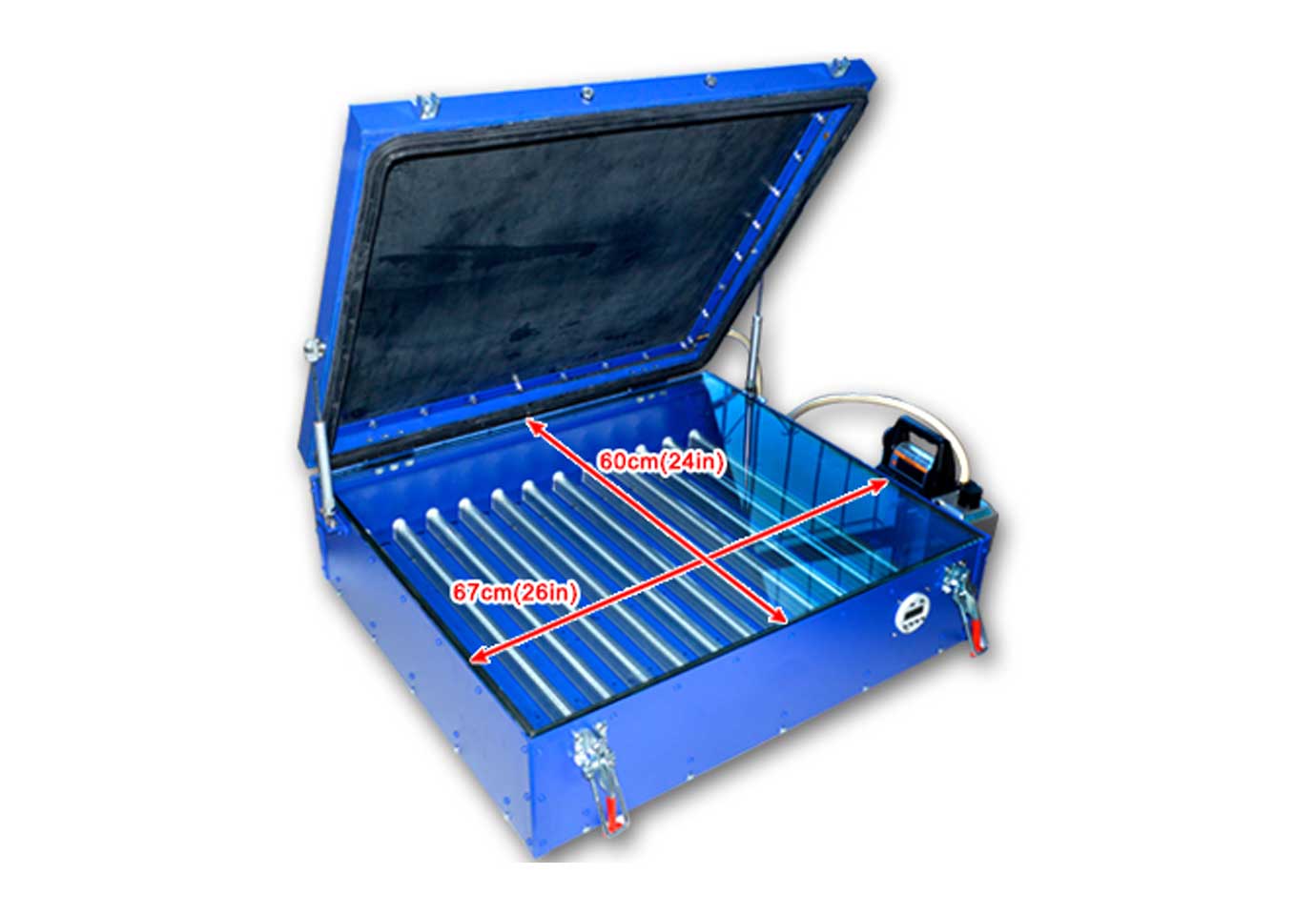

2 ,The exposing area is 46*32cm(28*25in),suitable for within outer diameter 68*62(27*24in)cm all kinds of frame

3 ,Equipped with 8mm Tempered glass plate,resistant to friction;the glass is broken,the glass shards are no sharp,to ensure the safety of operator

4 ,The timer can set the exposing time,after reach the exposing time,the machine automatically turns off the tubes

5 ,The timer have automatic memory function,set in once,whether the number of switch turn on or off,time will save

6 ,This machine equipped with 20*30*6cm and 30*40*6cm two sponges,used for press the film more closely,place a flat weight,improve the quantity of exposing

7 ,To ensure the transportation safety of tubes,all tubes are individually packaged in box,when install,remove the glass by sucker,insert the plugs on the two sides of tubes one by one,place the glass and use it

8,Set the release value,after the exposure and open the release value,remove the vacuum,open the cover and remove the screen

9,This machine is equipped with four soft palstic pad feet,place on the corner of frame,during the vacuum,prevert hte corner of frame damage the rubber cloth

Special note:

Different brand of emulsion have different exposing time,the operator need to use the emulsion in this machine and confirm the best exposing time.

Methods of using the timer:

1、Before using, please press the “C” button to reset, the display shows 00:00 00 and it is flashing state.

2、Press the “hour” and “minute” and “second” button separately to set the countdown of the electrify time, the display shows “ON”

3、Press the “start/pause” button to start the countdown.

For example: set exposure time 5 minutes 30 seconds :

At first press the “C” button to remove the original set ; Then press “minute” set to”5″; press “seconds” set to “30”; Then press the “start/pause” to start the countdown, lamp open; After five minute 30 seconds countdown , plate burning machine tube closed.

This setting do not need to change, it is automatically saved.

when the machine starts again, the countdown is still 5 minutes and 30 seconds.

Basic parameters of the timer:

Countdown: 1 SEC – 99 hours 59 minutes and 59 seconds

Working temperature: – 25 c – 65 c

Note:

Pump to add engine oil before used only ,

lest cause motor damage.

No oil can not be used .Periodic inspection is required

Using steps of the machine:

1.Connect the vacuum pump pipe with the exhaust pipe ;

2.Plug the vacuum pump power into the socket;

3,Turn on the machine, adjust the Settings of exposure time ;

4,Put the film and plate on the glass and adjust the position .

5,Put the four sledge foots on the four corners of the screen frame.

6,Close the cover, fit the hook locked; Vacuum pump starts exposing at the same time;

7,After 5 minutes of exposing ,the rubber cloth is closely fit with the mesh in the screen frame;

8,Press the timer “start/pause”button to expose.

9,When the exposing time is over, the tubes will be off automatically ;open the exhaust valve, the exposure will be disappear.

10,Turn off the power of the machine,and take out the screen frame. The exposure is finished .
