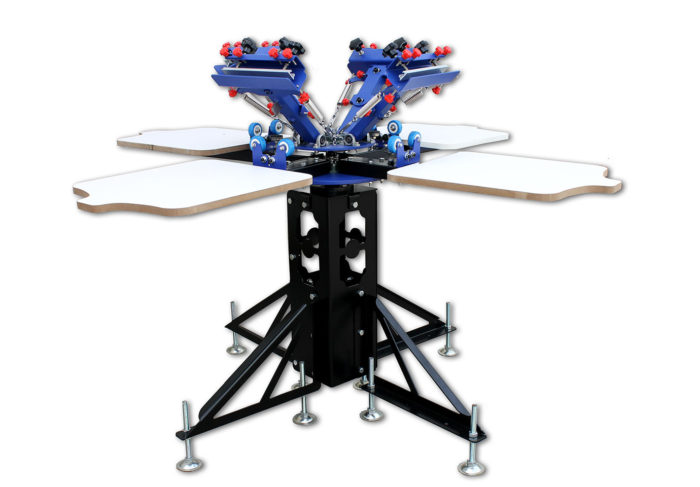

MK-F442C Floor type micro-adjust four color four station double wheel overprinting screen printing machine

MK-F442C

The MK-F442C Floor type micro-adjust four color four station double wheel overprinting screen printing machine is mainly used for the four color T-shirt overprinting,it is configured with four screen frame chucks and four t-shirt pallet stations.

The product has a better price:
  • We are a factory that produces screen printing mesh. The more you buy, the cheaper your price.

Description

It is mainly used for the four color T-shirt overprinting,it is configured with four screen frame chucks and four t-shirt pallet stations.

Both the pallet part and the screen frame part can rotate independently at 360 degree;Users can operate at any station.

Each screen frame fixing device is configured with manual micro-adjust knobs, and it can make the overprinting be more accurate.

If one dryer is placed on a station to flash dry the surface, two users are familiar with the machine, they can print 60-80 pieces six colors t-shirts each hour.

This machine is manual mobile screen frame to match color,all the screen frames’position is correct to any one pallet , the other one pallet will be correct , then the user can start overprinting.There is no need to correct the position of the color one by one.

Product Information

Product Code 006241
Product Name MK-F442C Floor type micro-adjust four color four station double wheel overprinting screen printing machine
HS Code 8443192290
Product Color Blue
Printing Area 22in(55cm)*18in(45cm)
Machine Using Material Steel plate
Machine Surface Treatment Electrostatic spraying
Attachment Material Stainless steel or zinc plating, nickel plating
Net Weight 202.8lb
Gross Weight 220.5lb
Packing Size 26*26*12.2in
23.6*16*10.6in
24.6*20.7*9.4in
26*17*16in
Packing Volume 0.39m³
Packing Material Export carton

Product Features

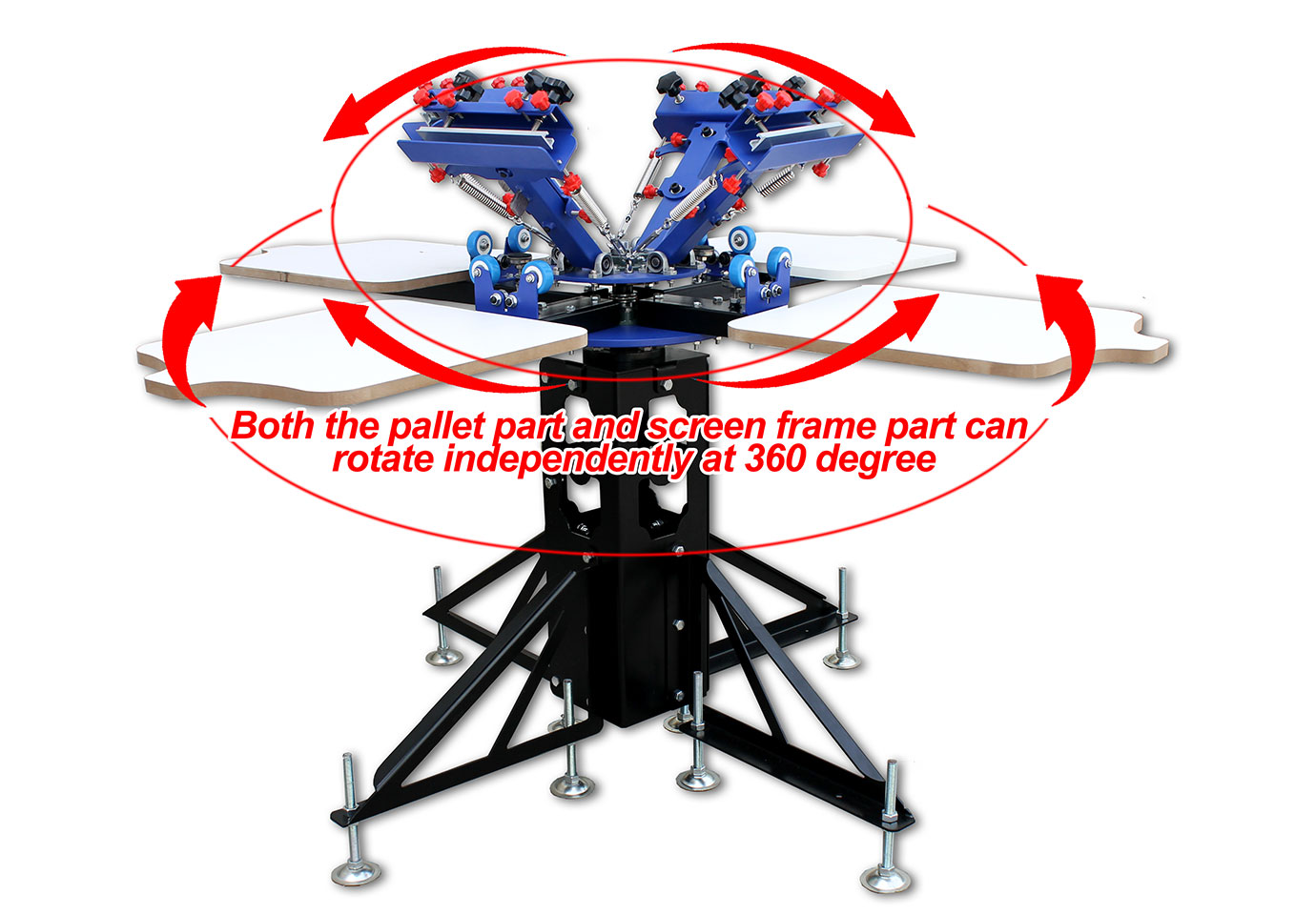

1.Both the pallet part and the screen frame part can rotate independently at 360 degree;Users can operate at any station.

2.Users can finish all the screen frame’s overprinting positioning at any pallet station,All the screen frames’position is correct to any one pallet , the other one pallet will be correct , then the user can start overprinting.There is no need to correct the position of every pallet.

3.Each screen frame fixing device is configured with eight micro adjust knobs. By using the knobs ,user can micro adjust the screen frame from front to back , from left to right .It can make the overprinting more simple and more accurate.

MK-F442C Floor type micro-adjust four color four station double wheel overprinting screen printing machine

4. Each screen frame’s fixing device is equipped wth precise positioning wheel,when the positioning iron on the arm placed in positioning wheel closely, it can ensure the printing precision.

5. Each screen frame’s fixing device is equipped wth big lock wheel, screen frame arm can easily fall into the metal positioning wheel when touch the two big lock wheels ,and it also can prevent the direct collision between the positioning iron and the metal positioning wheel.

6. Each screen frame’s fixing device is equipped wth big lock wheel, screen frame arm can easily fall into the metal positioning wheel when touch the two big lock wheels ,and it also can prevent the direct collision between the positioning iron and the metal positioning wheel.

7. According to the weight of the screen frame, spring tension can be adjusted by the basket screws to achieve balance.

8.Screen frame chuck’s width is (11in) 29 cm ; It is suitable for screen frame with outside size within (24 in) 60 cm and screen frame with thickness size is within 4 cm (1.6 in).

9.The screen frame chuck can be adjusted up to 5cm(2in) according to the height of the substrate.

MK-F442C Floor type micro-adjust four color four station double wheel overprinting screen printing machine

10.Screen frame chuck knob fix the screen frame together with the special aluminum alloy plate, and it can be fit closely and be more stable.

11.The pallet can move 10cm(4in)from front to back by the connections at the bottom of the pallet.

12.T-shirt type pallet of the machine is 55 cm (22 in) long, 45 cm(18in) wide, the thickness is 1.8 cm (0.7 in); Using furniture surface melamine high density board, the surface with small pits, and it is more suitable for printing T-shirt when scraping the pallet glue.

MK-F442C Floor type micro-adjust four color four station double wheel overprinting screen printing machine

13. There are four supporting skew beams at the bottom of the machine .The machine is configured with 8 machine rack supporting feet, and it can adjust the height of the whole machine within 20cm (8in)).

MK-F442C Floor type micro-adjust four color four station double wheel overprinting screen printing machine

14. The machine adopts advanced electrostatic spraying process, various parts using stainless steel,aluminum alloy,nickel and zinc plating technology. They are corrosion resistance, no fading, easy to clean, maintain color and finish for a long time, and it can use for a long time with no rust.

MK-F442C Floor type micro-adjust four color four station double wheel overprinting screen printing machine

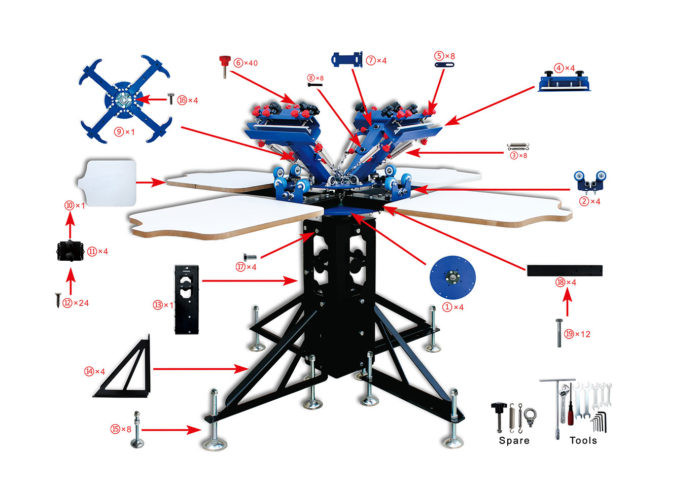

Product Parts

All machines are configured with a full set of tools to install the machine; There is no need to prepare for other tools to complete the installation; Equipped with installation diagram and the packing list,parts installation location is very clear; All machines are configured with installation CD and operation video, it is more convenient for the user to install and use the machine .There are still spare parts in the box for users to change.

MK-F442C Floor type micro-adjust four color four station double wheel overprinting screen printing machine
