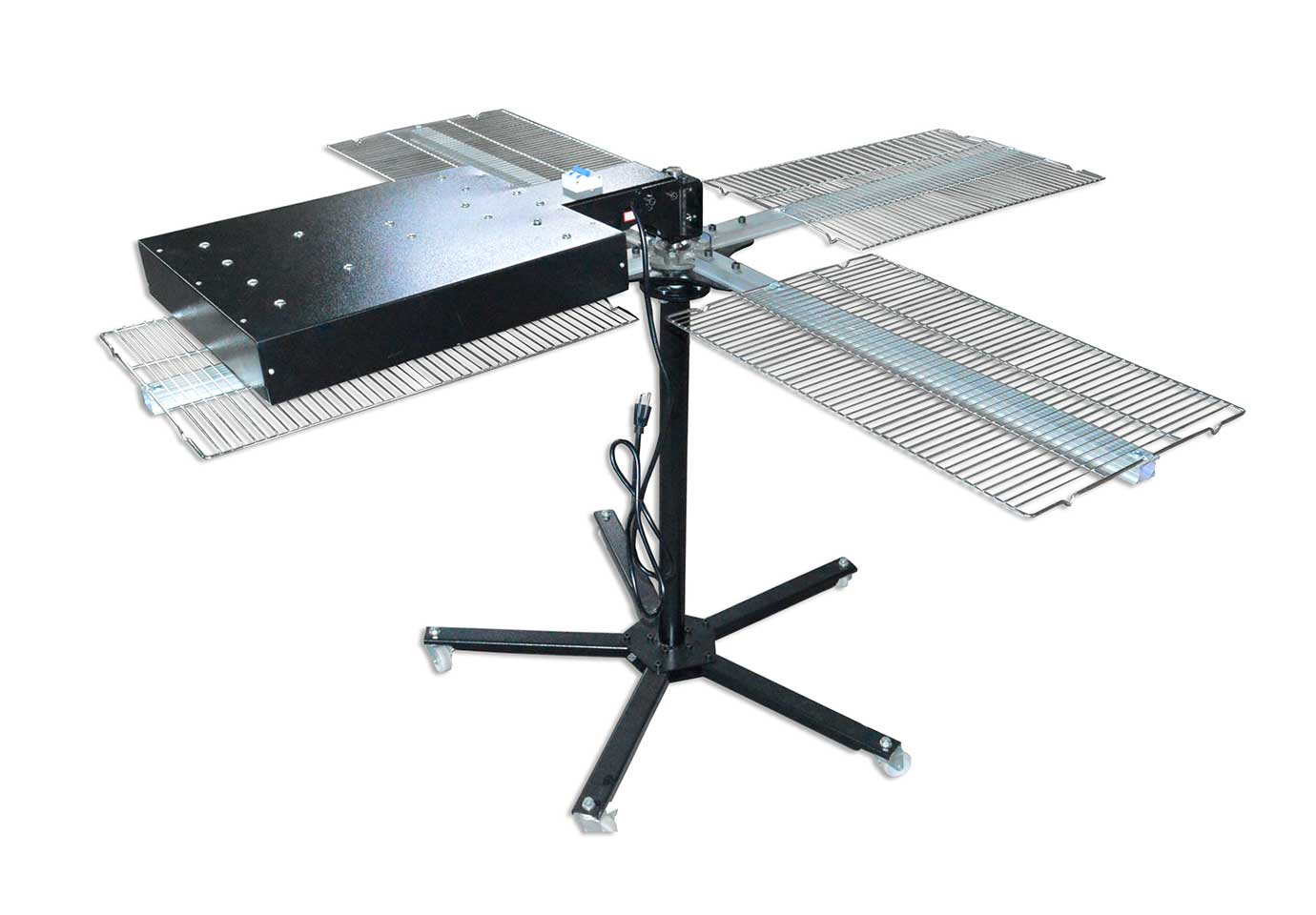

MK-F40404 -110V- 1600W(220) four platform floor type rotary dryer

MK-F40404

The dryer has two functions :

Function one : Thoroughly dry the product that finished printing

The product has a better price:
  • We are a factory that produces screen printing mesh. The more you buy, the cheaper your price.

Description

Product Code 006290 (110V)   006291 (220V)
Product Name MK-F40404 -110V- 1600W

four platform floor type rotary dryer

HS code 8419399090
Product Color Black
Size of Drying Box 16*16inch
Heating tube material Stainless Steel Heating Tubes
Voltage 220v/110v
Power 1600w
Plug American standard,National standard,European standard
Machine using material steel plate
Machine surface treatment Electrostatic spraying
Attachment material Stainless steel or zinc plating, nickel plating
Net weight 68lb
Gross weight 73lb
Packing size 32*22*11in
Packing volume 0.13 m³

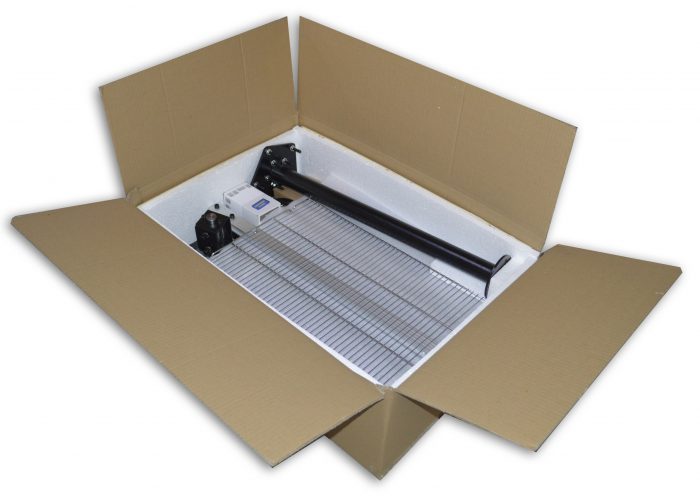

Packing material Export fumigation

The dryer has two functions :

Function one : Thoroughly dry the product that finished printing

Function two: it can support With rotary screen printing machine in the process of printing on products is conducted by flash drying (need to remove one or two drying platforms), improve the efficiency of the printing.

The functions and features of this machine:

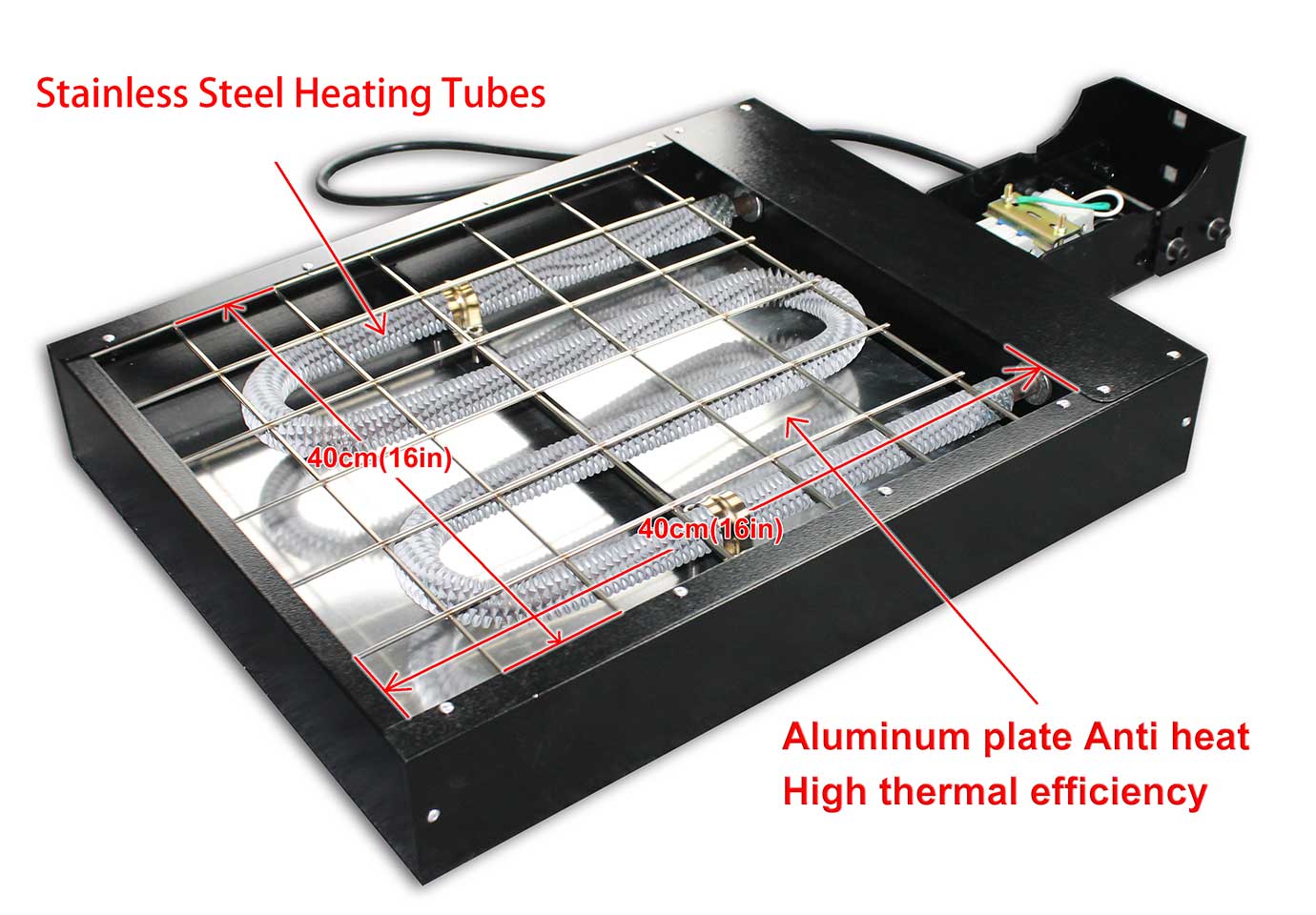

1, The heating tubes adopts 1600w stainless steel heating tubes ,high heating efficiency,it can normally be used for about 10000 hours

2, The size of drying box is 16*16in; the size of platform is 16*24in.

3, Four platforms can rotate in 360 degree .

4, The drying box can rotate in 360 degree and cna be fixed at any position .

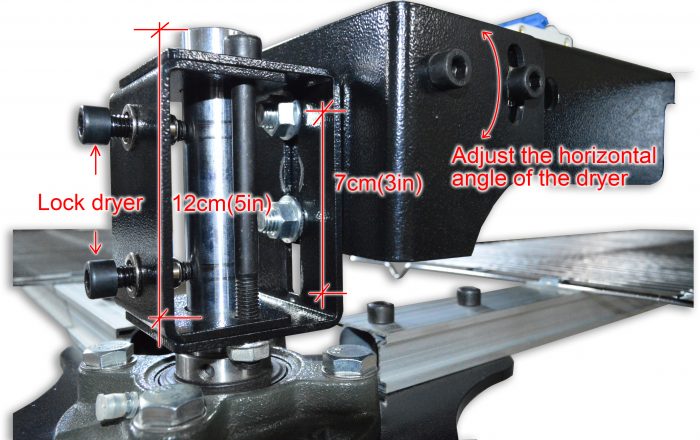

5, The temperature can be achieved by adjusting the height of the drying box. The drying box can move 3in from top to bottom.

6, The back of the heating pipe is hot aluminum plate, its thermal efficiency is higher.

7, The bottom adopts five holders,and the machine is more stable;It is equipped with casters , it can move arbitrary.

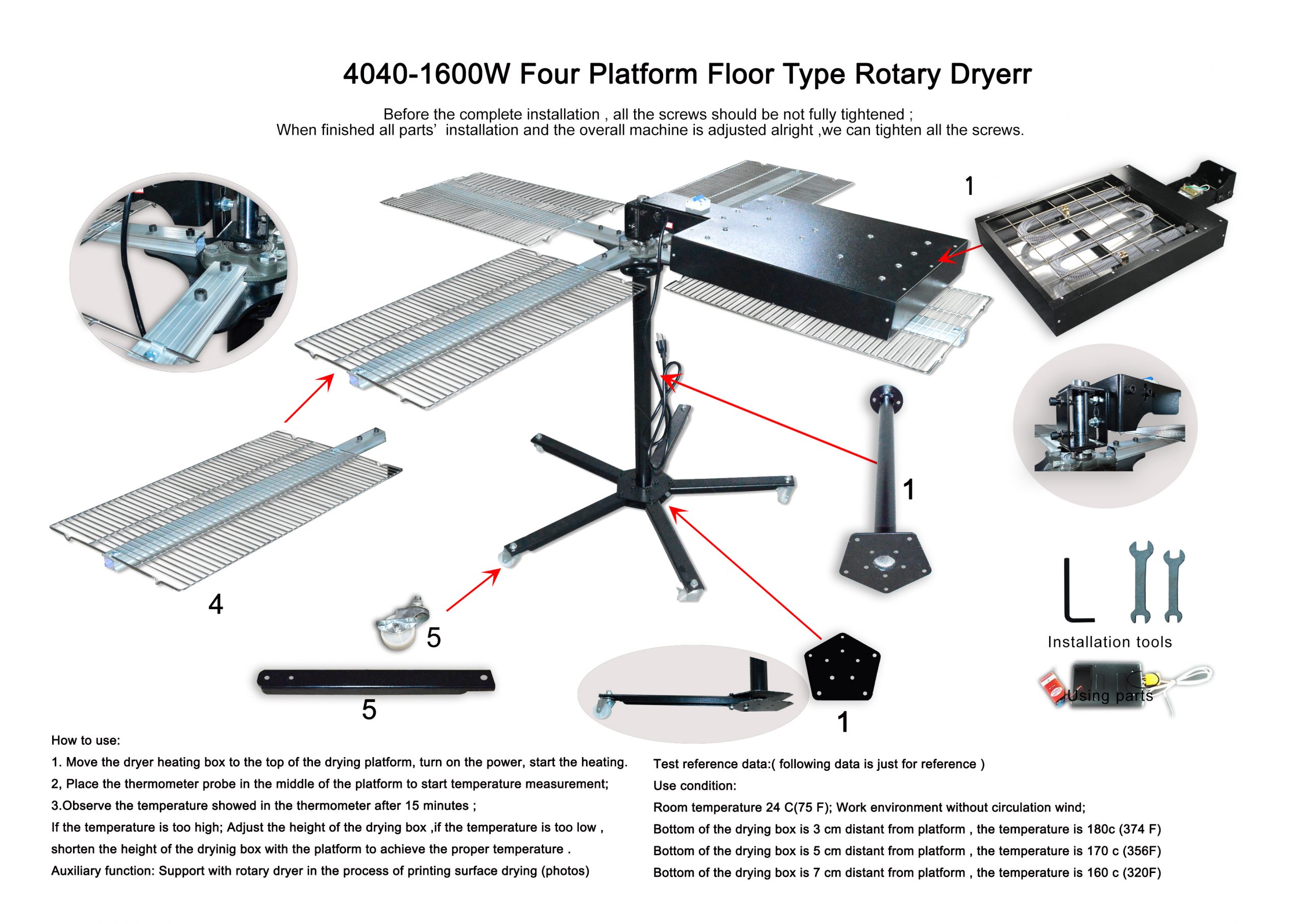

8, Prepare for the full set installation tools, test thermometer and installation instructions.

How to use:

1, Move the dryer heating box to the top of the drying platform, turn on the power, start the heating.

2, Place the thermometer probe in the middle of the platform to start temperature measurement;

3.Observe the temperature showed in the thermometer after 15 minutes ;

If the temperature is too high; Adjust the height of the drying box ,if the temperature is too low ,shorten the height of the dryinig box with the platform to achieve the proper temperature .

Auxiliary function: Support with rotary dryer in the process of printing surface drying (photos)

Test reference data:( following data is just for reference )

Use condition:

Room temperature 24 C(75 F); Work environment without circulation wind;

Bottom of the drying box is 3 cm distant from platform , the temperature is 180c (374 F)

Bottom of the drying box is 5 cm distant from platform , the temperature is 170 c (356F)

Bottom of the drying box is 7 cm distant from platform , the temperature is 160 c (320F)
